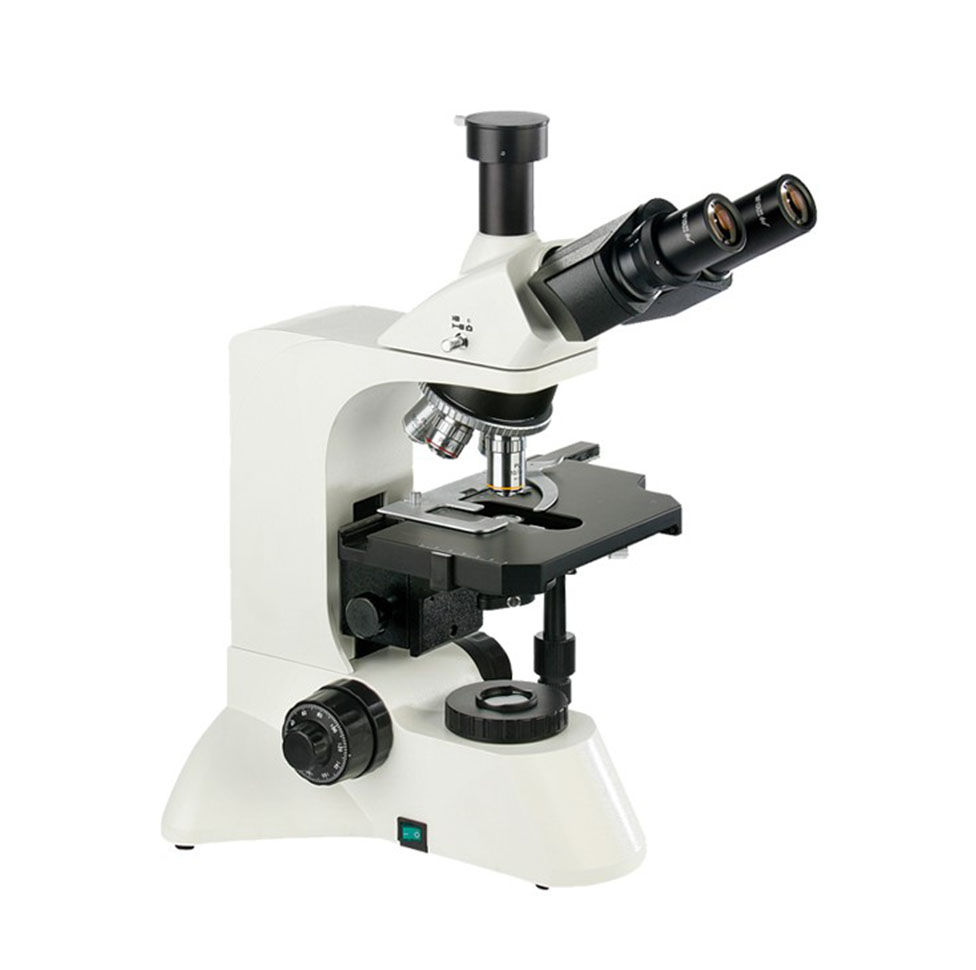

L3200series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They have beautiful sculpt andprovide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the idealinstrument in medical treatment, teaching demonstration and scientific research.
Category: Biological Microscope
Model: L3200
Magnification: 40X--1000X
Illumination: 6V30W halogen lamp, adjustable brightness
Features
▲ Equipped with wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
▲ Maximal movement of stage is 30mm
▲ Using Kohler illumination with Integrated field diaphragm and 6V30W halogen lamp, adding radiator and brightness control.
▲ Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.
Observe system:
The trinocular can easily change in the observation and photography Inclination of 30, you do not need to dow head or horizontal observation in the long tine, it can make the neck and shoulder of operator feel comfortable, base onthe 100% pass of light of Trinocular, the microscope adapt to low illumination of photography. The field of plan objective can achieve Ф22, which let you have more wide and comfortable of observation,eyepatch can be added.

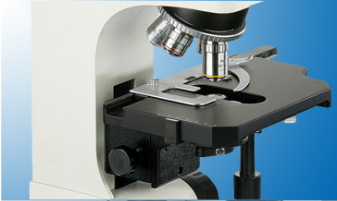

Stage:
Double layer mechanical stage, size of 210mmX140mm, move range: 75mmX50mm. The design is in reason so that the operator feel easy and comfort.
Transmitted illumination system:
With 6V 20W halogen lamp (brightness adjustable) can provide clear and bright image. Collector for halogen lamp illumination and integrated field diaphragm.
Function spread
By adding the appurtenance such as CCD adapter, digital camera adapter andsingle reverse digital camera adapteretc. It can achieve high clear observation mode of camera and vidicon.
Standard Configuration
Model | L3200 | |
Eyepiece | WF10X(Φ22mm) | |
Objective | Infinity plan achromatic objective | |
PL 4X/0.10(Work distance)：21 mm | ||
PL 10X/0.25(Work distance)：5.0mm | ||
PL 40X/0.65(Spring)(Work distance)：0.66 mm | ||
PL 100X/1.25(Spring, oil)(Work distance)： 0.36mm | ||
Eyepiece tube | L3200HBG | Binocular (Inclination of 30˚) |
L3200HTG | Trinocular(Inclination of 30˚) | |
Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm. | |
Nosepiece | Quadruple(Backward ball bearing inner locating) | |
Stage | Double layer mechanical (Size:210mmX140mm,Move range: 75mmX50mm) | |
Abbe condenser | N.A.1.25Rack & pinion adjustable | |
Filter | Blue filter | |
Frosted filter | ||
Collector | For halogen lamp(With field diaphragm ) | |
Light source | 6V 30W Halogen lamp with brightness control | |
Optional accessories
Name | Sort/Technique parameter | NO. | |
Eyepiece | Dividing eyepiece(field number:Φ22mm) 0.10mm/Div | 1122010 | |
Objective | Infinity plan achromatic objective | ||
PL 20X/0.40(Work distance)：8.8 mm | 2060120 | ||
PL 60X/0.85(Work distance)：0.25mm | 2060160 | ||
Nosepiece | Quintuple(Backward ball bearing inner locating) | 032002 | |
Filter | Green filter | 115002 | |
Yellow filter | 115003 | ||
Condenser | Dark field | Dry type | 051001 |
Immersion type | 051002 | ||
Phase contrast unit | Eyepiece | Centering telescope | 110002 |
Objectives | Infinity phase contrast plan achromatic 10X/0.25 PHP | 2470110 | |
Infinity phase contrast plan achromatic 20X/0.40 PHP | 2470120 | ||
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) | 2470140 | ||
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | 2470111 | ||
(PH-Ⅰ ) Turnplate phase contrast condenser | 052001 | ||
(PH-Ⅱ) Turnplate phase contrast condenser | 052004 | ||
Flashboard phase contrast condenser | 052002 | ||
Pull board phase contrast condenser | 052003 | ||

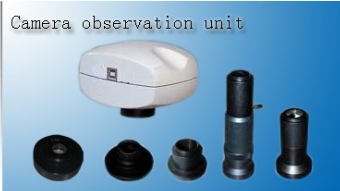

CCD adapter | 0.4X | 810001 | |
0.5X | 810004 | ||
1X | 810002 | ||
0.5X with dividing 0.1mm/Div | 810003 | ||
Camera | DV-1 Video output 380/520 TV line USB output £¨0.42 M pixel | 800001 | |
DV-2 With USB output 1.3M,2.0M,3.0M pixel | 800003 | ||
DV-3 With video output 380/520 TV line | 800005 | ||
Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | 840001 | |
4X Focusing photograph attachment | 840002 | ||
MD adapter | 840003 | ||
PK adapter | 840004 | ||
Digital camera adapter | CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F) | 820001 | |
Facility polarize | Polarizer | 360° rotatable stage | 111001 |
Analyzer | Sliding type | 111105 | |

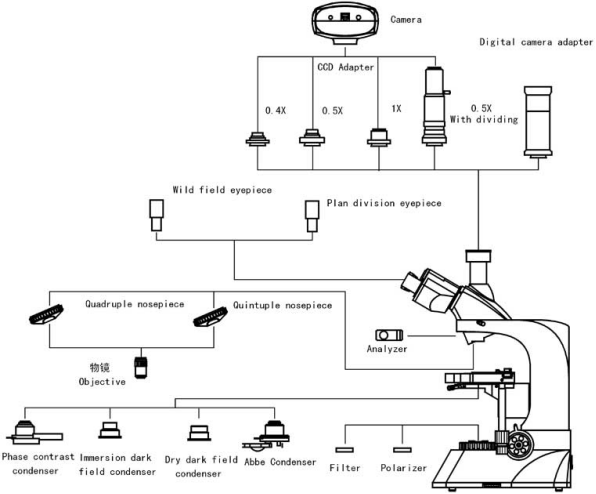

System Diagram

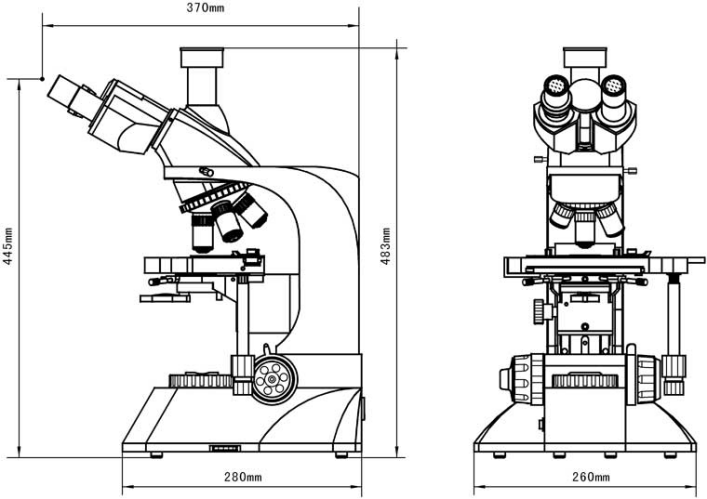

Dimension
