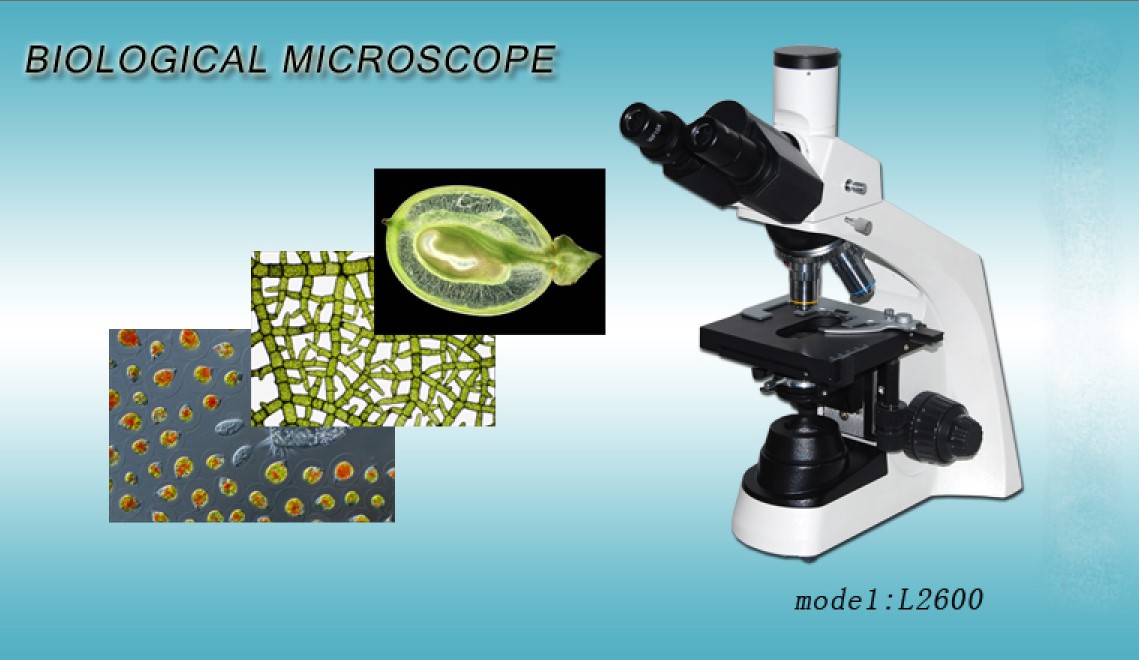

L2600

Biological Microscope

L2600 biological microscope is equipped with eminent optical system, provides excellentoptical performance and the update of the system. Because of the streamline figure andpastel color, it has more beautiful appearance. It achieves the notion of ergonomicsdesign, so it can provides the more comfortable operation and operational room. It canbe used in the field of the biology, medicine, industry, agriculture, at the same timeit is the perfect research instrument for the department of hospital, teaching andacademy.

Observation System

Trinocular,single diopter adjustment,inclined 30"and integrated analyzer,it can beconnected to the camera.

10X wide field plan eyepiece, field Ф18mm,can provide expanse and smooth observationspace. Another eyepiece is 10X division eyepiece used for proofreading the centre.

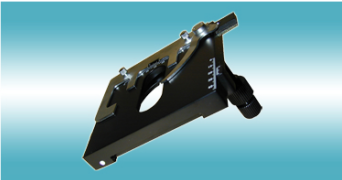

Stage

Double layer mechanical stage ,size of135mmX125mm,move range:75mmX35mm。Perfectlycombine with the coaxial gar and flexible steelwire driving, make the stage more fluent movingThe driving device fix in the stage , whichcan prevent the device on the outside of stageto hurt the operator effectively.

Transmitted illumination

Collector for 3W LED illumination, brightness adjustable.

Condenser

Abbe cndenser,NA.1.25 Rack & pinionadjustable.dry or oil dark field condenser can be equipped.

Specification

Eyepiece	Wide field WF10X，(field number Ф18mm)
Objective	type	magnification	N.A.	Work distance (mm)	Cover glass thick (mm)	note
	Semi-plan achromatic objective（standard）	4X	0.10	23.13	0.17
		10X	0.25	4.09	0.17
		40X	0.65	0.60	0.17
		100X	1.25	0.38	0.17	oil
	Plan achromatic objective（option）	4X	0.10	17.90	0.17
		5X	0.12	18.30	0.17
		10X	0.25	8.80	0.17
		20X	0.40	8.60	0.17
		25X	0.40	0.65	0.17
		40X	0.65	0.56	0.17
		60X	0.85	0.25	0.17
		100X	1.25	0.33	0.17	oil
Eyepieces tube	Binocular( inclination 30°)，interpupillary distance：48~75mm. (Trinocular can be choose)
Focus system	Coaxial coarse/fine focus with tension adjustable and up stop,minimum division of fine focusing:2.0μm.，moving range:0～20mm。
Nosepiece	Quadruple backward ball bearing inner locating
Stage	Double layer mechanical stage (size:125mmX135mm,moving range:35mmX75mm)
Condenser system	Abbe condenser， with aperture diaphragm ，rack & pinion adjustment .(dark field condenser or phase contrast unit can be choose)
Light source	3W high brightness white LED brightness adjustable.(6V20W halogen lamp can be choose)
Power supple	AC 100～240V（suitable for LED brightness），AC 110V/220V （ suitable for 6V20W halogen lamp ）

System Diagram
