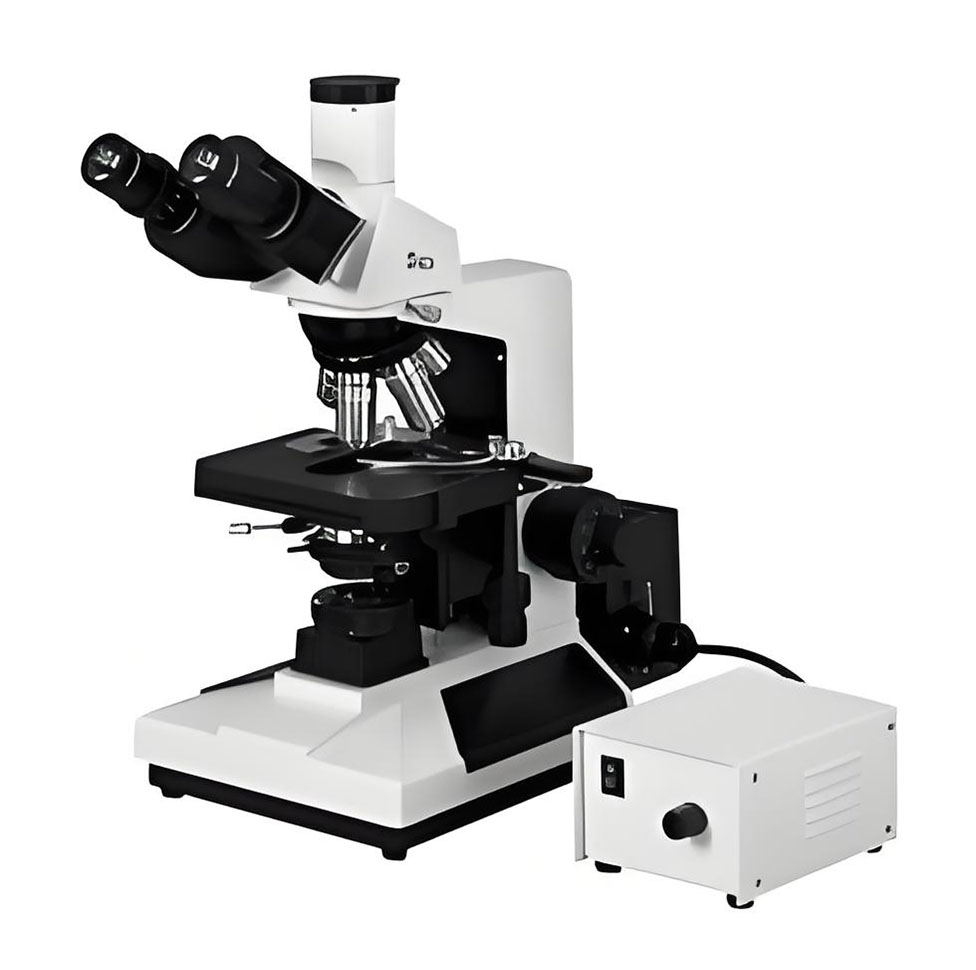

L2050

Eyepiece

WF10X(Φ20mm)

Objective

Plan achromatic PL 4X/0.10

Plan achromatic PL 10X/0.25

Plan achromatic PL 20X/0.40

Plan achromatic PL 40X/0.65(Spring)

Plan achromatic PL 100X/1.25(Spring, oil)

Eyepiece tube

Binocular(Inclination of 30˚)

Focus system

Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.

Nosepiece

Quintuple(Backward ball bearing inner locating)

Stage

Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)

Abbe condenser

N.A.1.25 Rack & pinion adjustable

Filter

Blue filter

Frosted filter

Collector

For halogen lamp

Light source

12V 50W Halogen lamp with brightness control.

Eyepiece

Wide field  WF16X(Φ11mm)

1051016

Dividing    10X(Φ18mm)  0.1mm/Div

1121010

Eyepiece tube

Trinocular(Inclination of 30˚)

012005

Filter

Green filter

115002

Yellow filter

115003

Nosepiece

Quadruple(Backward ball bearing inner locating)

031005

Condenser

Dark field

Dry

051001

Immersion

051002

Phase contrast unit

Eyepiece

Centering telescope

110001

Objectives

Phase contrast plan achromatic 10X/0.25 PHP

2420110

Phase contrast plan achromatic 20X/0.40 PHP(Spring)

2420120

Phase contrast plan achromatic 40X/0.65 PHP(Spring)

2420140

Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

2420111

(PH-Ⅰ ) Turnplate phase contrast condenser

052001

(PH-Ⅱ) Turnplate phase contrast condenser

052004

Flashboard phase contrast condenser

052002

Pull board phase contrast condenser

052003

Infinity optical system

Eyepiece tube

Binocular(Inclination of 30˚)

011103

Trinocular(Inclination of 30˚)

012103

Eyepiece

Centering telescope

110002

Objectives

Infinity plan achromatic 4X/0.10

2060104

Infinity plan achromatic 10X/0.25

2060110

Infinity plan achromatic 20X/0.40

2060120

Infinity plan achromatic 40X/0.65(Spring)

2060140

Infinity plan achromatic 100X/1.25(Spring, oil)

2060111

Infinity phase contrast plan achromatic 10X/0.25 PHP

2470110

Infinity phase contrast plan achromatic 20X/0.40 PHP

2470120

Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)

2470140

Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)

2470111

CCD adapter

0.4X

810001

0.5X

810004

1X

810002

0.5X with dividing 0.1mm/Div

810003

Camera

DV-1(With USB & video output()

800001

DV-2(With USB output)

800003

DV-3(With video output)

800005

Digital camera adapter

CANON Digital camera adapter(A610,A620,A630,A640)

820001

Photograph unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

840001

4X Focusing photograph attachment

840002

MD Adapter

840003

PK Adapter

840004

Facility polarize

Polarizer(360° rotatable stage)

111001

Analyzer

111101
