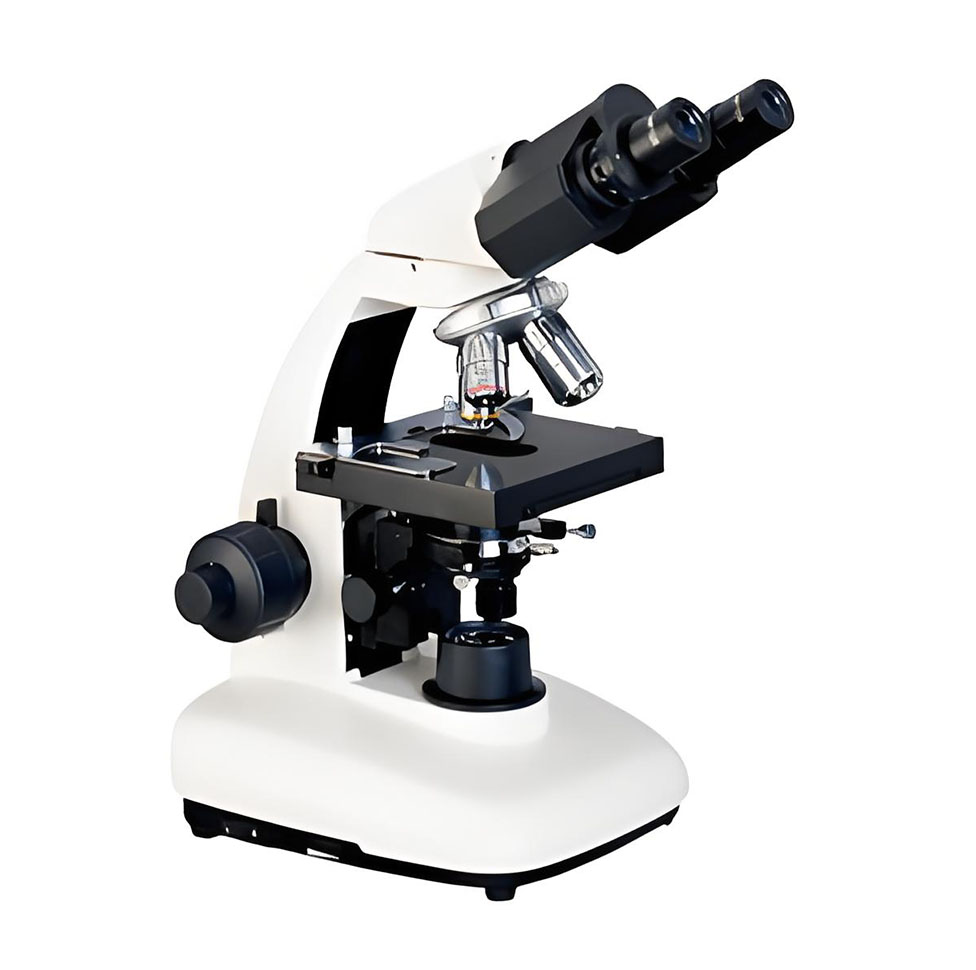

L1600

Eyepiece

Wide field WF10X(¦µ18mm)

Objective

Achromatic 4X/0.10

Semi-plan achromatic 4X/0.10

Achromatic 10X/0.25

Semi-plan achromatic 10X/0.25

Achromatic 40X/0.65(Spring)

Semi-plan achromatic 40X/0.65(Spring)

Achromatic 100X/1.25(Spring, oil)

Semi-plan achromatic 100X/1.25(Spring, oil)

Eyepiece tube

Binocular(Inclination of 30˚)

Focus system

Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.

Nosepiece

Quadruple(Frontward ball bearing inner locating)

Stage

Double-layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)

Abbe condenser

N.A.1.25 Rack & pinion adjustable

Filter

Blue filter

Frosted filter

Collector

For halogen lamp

Light source

6V 20W Halogen lamp with brightness control

Eyepiece

Wide field   WF16X(¦µ11mm)

1051016

Dividing    10X(¦µ18mm)   0.1mm/Div

1021010

Objective

Plan achromatic  4X/0.10

2040104

Plan achromatic  5X/0.12

2040105

Plan achromatic  10X/0.25

2040110

Plan achromatic  20X/0.40

2040120

Plan achromatic  40X/0.65(Spring)

2040140

Plan achromatic  60X/0.85(Spring)

2040160

Plan achromatic  100X/1.25(Spring, oil)

2040111

Eyepiece tube

Monocular ( Inclination of 30˚)

010007

Binocular, Sliding(Inclination of 45˚)

011201

Trinocular, Sliding(Inclination of 45˚)

012201

Trinocular( Inclination of 30˚)

012004

Dual viewing tube (Inclination of 30˚)

013002

Nosepiece

Quintuple (Frontward ball bearing inner locating)

032001

Filter

Green filter

115002

Yellow filter

115003

Light source

LED Collector

Bright and white light

073008

Condenser

Dark field

Dry

051001

Immersion

051002

Phase contrast unit

Eyepiece

Centering telescope

110001

Objectives

Phase contrast plan achromatic 10X/0.25 PHP

2420110

Phase contrast plan achromatic 20X/0.40 PHP

2420120

Phase contrast plan achromatic 40X/0.65 PHP(Spring)

2420140

Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

2420111

(PH-¢ñ) Turnplate phase contrast condenser

052001

(PH-¢ò) Turnplate phase contrast condenser

052004

Flashboard phase contrast condenser

052002

Pull board phase contrast condenser

052003

Infinity optical system

Eyepiece tube

Binocular (Inclination of 30˚)

011102

Trinocular( Inclination of 30˚)

012102

Eyepiece

Centering telescope

110002

Objectives

Infinity plan achromatic 4X/0.10

2060104

Infinity plan achromatic 10X/0.25

2060110

Infinity plan achromatic 20X/0.40

2060120

Infinity plan achromatic 40X/0.65(Spring)

2060140

Infinity plan achromatic 100X/1.25(Spring, oil)

2060111

Infinity phase contrast plan achromatic 10X/0.25 PHP

2470110

Infinity phase contrast plan achromatic 20X/0.40 PHP

2470120

2470140

2470111

CCD adapter

810001

810004

810002

810003

Camera

800001

800003

800005

1096001

1108001

Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)

820001

0.4X

0.5X

1X

Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)

840001

840002

840003

840004

0.5X with dividing 0.1mm/Div

DV-1(With USB & video output)

111001

Analyzer

111101

DV-2(With USB output)

DV-3(With video output)

Input: 230V¡«50/60HZ   Output: 9V  500mA

101001

Input: 110V¡«50/60HZ   Output: 9V  500mA

101002

Photography

USB Output

VIDEO Output

CANON Digital camera adapter(A610,A620,A630,A640)

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

4X Focusing photograph attachment

MD Adapter

PK Adapter

Polarizer(360° rotatable stage)
