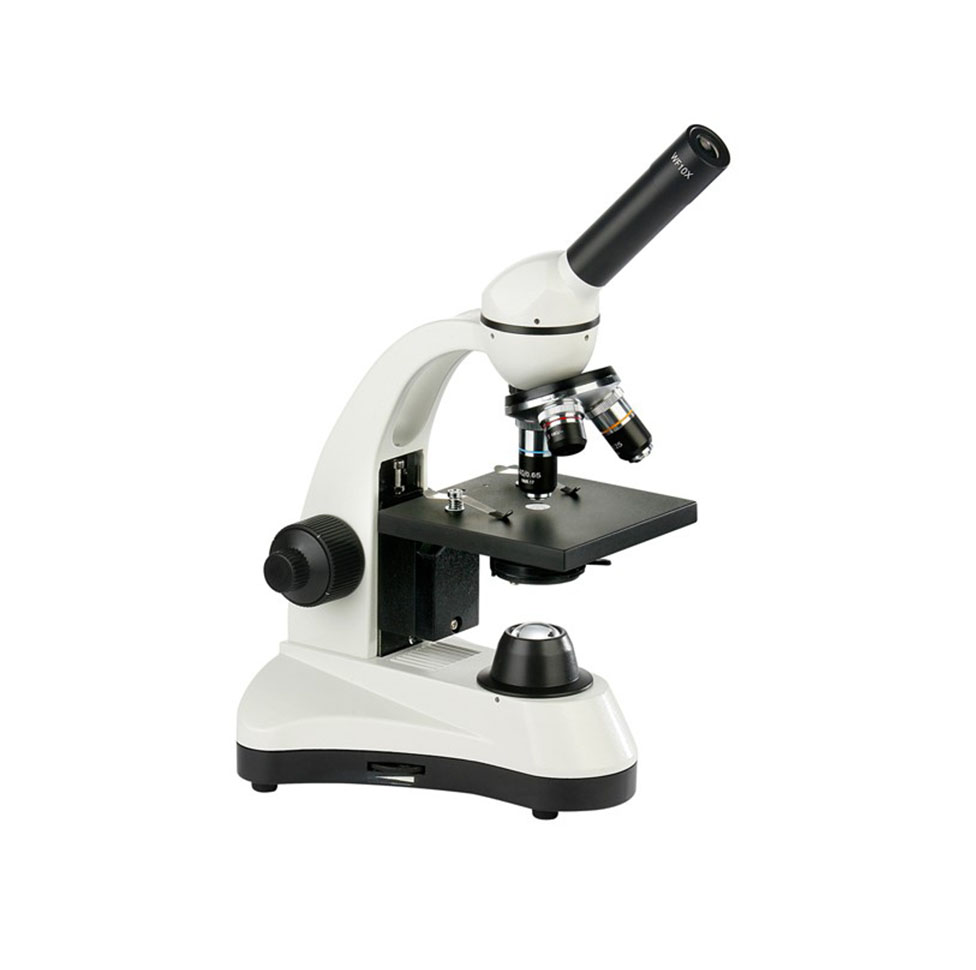

L790 series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image and convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.
Features
▲ With wide field eyepieces and achromatic objectives, the field of view is clear.
▲ Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm.
▲ High brightness white LED lamp transmission illumination
Standard Configuration
Model | L790A | L790B |
Eyepiece | WF10X(Φ18mm) | |
Objective | Achromatic 4X/0.10 | Achromatic 4X/0.10 |
Achromatic 10X/0.25 | Achromatic 10X/0.25 | |
Achromatic 40X/0.65(Spring) | Achromatic 40X/0.65(Spring) | |
Achromatic100X/1.25(Spring oil) | ||
Eyepiece tube | Monocular,360˚ rotatable (Inclination of 45˚) | |
Nosepiece | Triple(Frontward ball bearing outer locating) | Quadruple (Frontward ball bearing outer locating) |
Focus system | Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm | |
Stage | Fixed(Size:120mmX120mm, With five holes fixed iris diaphragm) | Double-layer mechanical, size:125mmX115mm, move range:70mmX30mm |
Abbe condenser | Rack &pinion adjustment | |
Collector | For LED lamp | |
Light source | LED High brightness white LED lamp | |
Optional accessories
Name | Sort/Technique parameter | NO. | |
Eyepiece | Wide field WF16X(Φ11mm) | 1051016 | |
Point 10X(Φ18mm) | 1043010 | ||
Stage | Fixed(Size:120mmX120mm, With single lens and iris diaphragm) | 040001 | |
Fixed(Size:120mmX120mm, with slide moving holder and Abbe condenser) | 040004 | ||
Filter | Blue filter | 115001 | |
Green filter | 115002 | ||
Yellow filter | 115003 | ||
Frosted filter | 115004 | ||
Collector | For Fluorescent and Halogen lamp | 060002 | |
For Incandescent lamp | 060004 | ||
Light source | High brightness white LED lamp | With adapter | 073011 |
High brightness white LED lamp | With adapter and charge batteries | 073012 | |
Halogen lamp | 12V 20W | 070019 | |
Fluorescent lamp | 110V/220V, 5W Can be choose | 071006 | |
Incandescent lamp | 220V/110V, 20W Can be choose | 072004 | |
Camera | Photography | USB Output | 1096001 |
VIDEO Output | 1108001 | ||
Adapter (For LED illumination) | Input: 230V¡«50/60HZ Output: 9V 500mA | 101001 | |
Input: 110V¡«50/60HZ Output: 9V 500mA | 101002 | ||

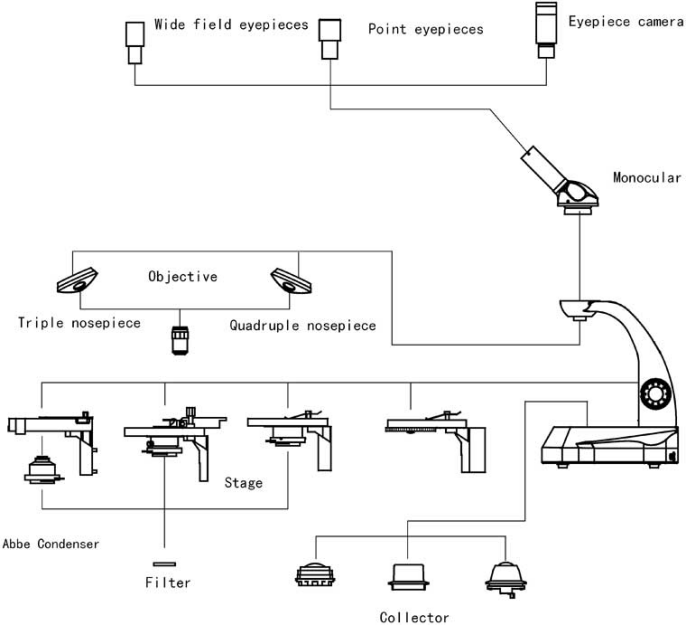

Diagram

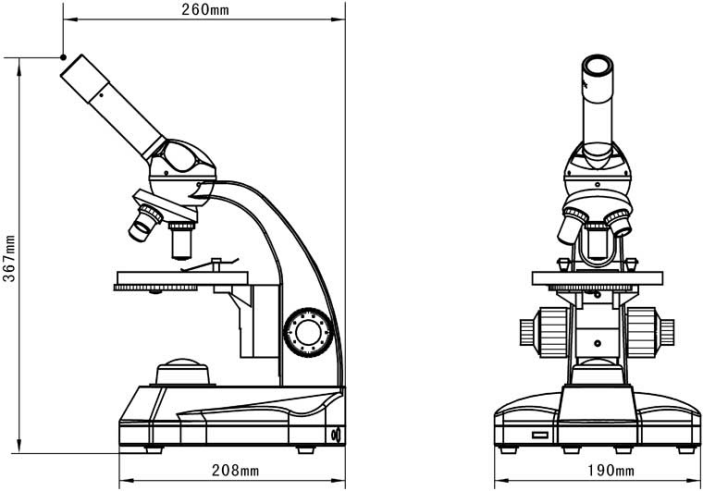

Dimensions
