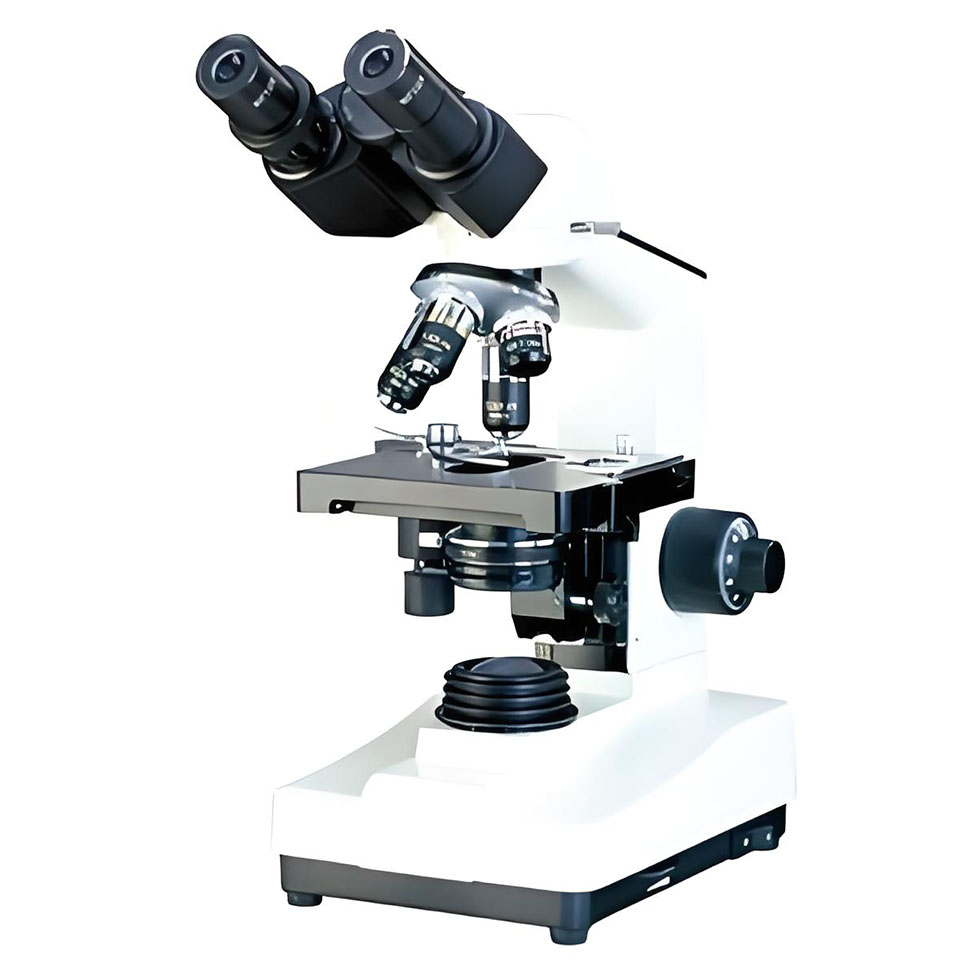

L135 series biological microscopes are equipped with achromatic objectives and wide field eyepieces. They have clear image and wide view field through optical system. They can be broadly applied in biology medicine, agriculture, industry etc. They are the ideal instrument for medical treatment, teaching and scientific research.
Features
▲ With wide field eyepieces and achromatic objectives, the field of view is widely and clear
▲ L135A、L135C: Coaxial coarse/fine focus system with up stop; Minimum division of fine focusing: 4μm. L135B、L135D: Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm
▲ 12 Volt 20 Watt Halogen lamp with brightness control
Standard Configuration
Model | L135A | L135B | L135C | L135D | ||
Eyepiece | Wide field WF10X(¦µ18mm) | |||||
Objective | Achromatic 4X/0.10 | |||||
Achromatic 10X/0.25 | ||||||
Achromatic 40X/0.65(Spring) | ||||||
Achromatic 100X/1.25(Spring, oil) | ||||||
Eyepiece tube | Binocular(Inclination of 30˚) | |||||
Focus system | Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm | Coaxial coarse/fine focus system, with tensional adjustable and up stop, Minimum division of fine focusing: 4μm | Coaxial coarse/fine focus system with up stop, Minimum division of fine focusing: 4μm | Coaxial coarse/fine focus system, with tensional adjustable and up stop. Minimum division of fine focusing: 4μm | ||
Nosepiece | Quadruple (Frontward ball bearing outer locating) | Quadruple (Frontward ball bearing outer locating) | ||||
Stage | Double layer mechanical (Size:125mmX115mm, Move range: 70mmX30mm) | |||||
Abbe Condenser | N.A.1.25 Rack & pinion adjustable | |||||
Filter | Blue filter | |||||
Frosted filter | ||||||
Collector | For halogen lamp | |||||
Light source | 12Volt 20 Watt Halogen lamp with brightness control | |||||
Optional accessories
Name | Sort/Technique parameter | NO. | |
Eyepiece | Wide field WF16X(¦µ11mm) | 1051510 | |
Dividing 10X(¦µ18mm) | 1021010 | ||
Eyepieces tube | Monocular | Inclination of 45˚ | 010003 |
Binocular | Sliding(Inclination of 45˚) | 011202 | |
Dual viewing tube | Inclination of 30˚ | 013001 | |
Nosepiece | Triple | Frontward Ball bearing outer locating | 030001 |
Stage | Fixed with slide moving holder | Size:120mmX120mm, Moving range:70mmX30mm | 040005 |
Fixed | Size:120mmX120mm | 040001 | |
Filter | Green filter | 115002 | |
Yellow filter | 115003 | ||
Light source | Fluorescent lamp | Can be choose 5W,110V/220V | 071002 |
Ordinary lamp | Can be choose 110V/220V | 072003 | |
LED Illumination | High brightness white | 073002 | |
Reflecting mirror | Plane-concave reflecting mirror with stand | 074002 | |
Camera | Eyepiece camera | USB Output | 1096001 |
VIDEO Output | 1108001 | ||
Adapter(For LED illumination) | Input: 230V¡«50/60HZ Output: 9V 500mA | 101001 | |
Input: 110V¡«50/60HZ Output: 9V 500mA | 101002 | ||
Facility polarize | Polarizer(360° rotatable stage) | 111001 | |
Analyzer | 111101 | ||

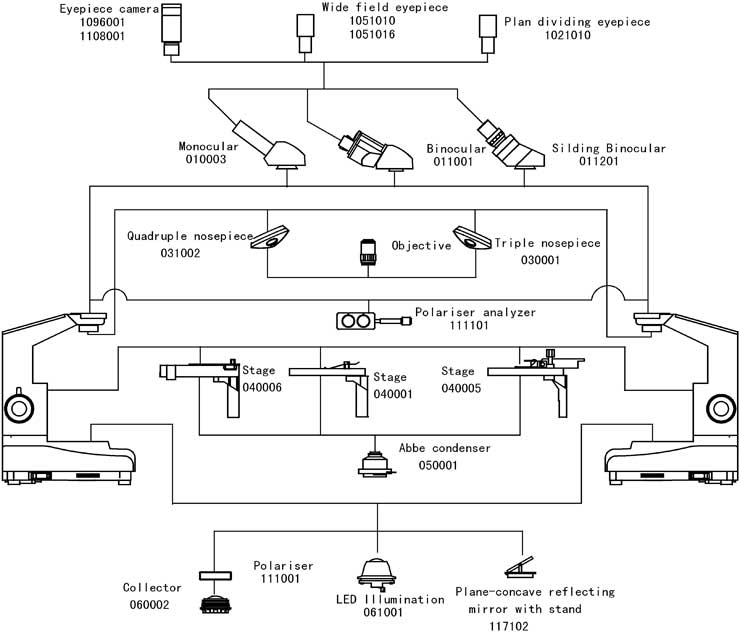

System Diagram

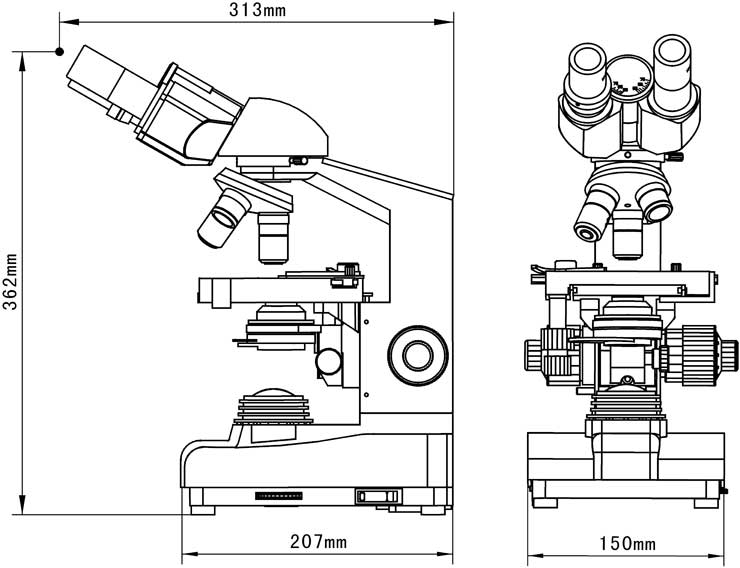

Dimension
