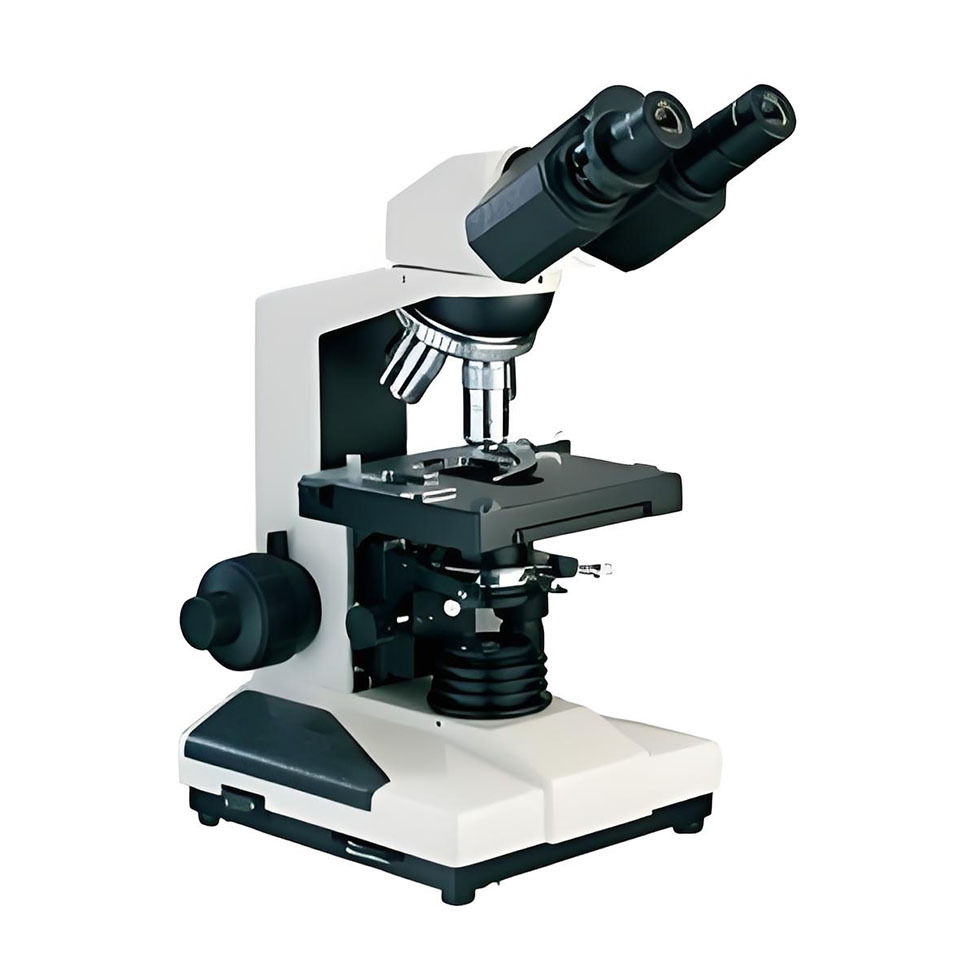

L1200

Eyepiece

Wide field WF10X(¦µ18mm)

Objective

Achromatic 4X/0.10

Achromatic 4X/0.10

Achromatic 4X/0.10

Achromatic 10X/0.25

Achromatic 10X/0.25

Achromatic 10X/0.25

Achromatic 40X/0.65(Spring)

Achromatic 40X/0.65(Spring)

Achromatic 40X/0.65(Spring)

Achromatic 100X/1.25(Spring, oil)

Achromatic 100X/1.25

(Spring, oil)

Achromatic 100X/1.25(Spring, oil)

Eyepiece tube

Binocular(Inclination of 30˚)

Focus system

Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm

Coaxial coarse/fine focus minimum division of fine focusing: 2μm, with tensional adjustable and up stop, base bearing black plastic cap

Coaxial coarse/fine focus with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

Nosepiece

Quadruple(Backward ball bearing inner locating)

Stage

Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)

Abbe condenser

N.A.1.25 Rack & pinion adjustable

Filter

Blue filter

Frosted filter

Collector

For halogen lamp

For halogen lamp

For halogen lamp

Light source

6V 20W, Halogen lamp with brightness control

Eyepiece

Wide field   WF16X(¦µ11mm)

1051016

Dividing    10X(¦µ18mm)  0.1mm/Div

1021010

Objective

Semi-plan achromatic  SP 4X/0.10

2030104

Semi-plan achromatic  SP 10X/0.25

2030110

Semi-plan achromatic  SP 20X/0.40

2030120

Semi-plan achromatic  SP 40X/0.65(Spring)

2030140

Semi-plan achromatic  SP 100X/1.25(Spring, oil)

2030111

Eyepiece tube

Monocular(Inclination of 30˚)

010006

Binocular, Sliding(Inclination of 45˚)

011201

Trinocular,Sliding(Inclination of 45˚)

012201

Trinocular(Inclination of 30˚)

012003

Dual viewing tube(Inclination of 30˚)

013002

Nosepiece

Quintuple (Backward ball bearing inner locating)

032001

Filter

Green filter

115002

Yellow filter

115003

Light source

LED Collector

Bright and white light

073006

Condenser

Dark field

Dry

051001

Immersion

051002

Phase contrast unit

Eyepiece

Centering telescope

110001

Objectives

Phase contrast achromatic 10X/0.25 PHP

2410110

Phase contrast achromatic 20X/0.40 PHP(Spring)

2410120

Phase contrast achromatic 40X/0.65 PHP(Spring)

2410140

Phase contrast achromatic 100X/1.25 PHP(Spring, oil)

2410111

(PH-¢ñ) Turnplate phase contrast condenser

052001

(PH-¢ò) Turnplate phase contrast condenser

052004

Flashboard phase contrast condenser

052002

Pull board phase contrast condenser

052003

Infinity optical system

Eyepiece tube

Binocular,(Inclination of 30˚)

011101

Trinocular(Inclination of 30˚)

012101

Eyepiece

Centering telescope

110002

Objectives

Infinity semi-plan achromatic 4X/0.10

2070104

Infinity semi-plan achromatic 10X/0.25

2070110

Infinity semi-plan achromatic 40X/0.65(Spring)

2070140

Infinity semi-plan achromatic 100X/1.25(Spring, oil)

2070111

Infinity phase contrast achromatic 10X/0.25 PHP

2480110

Infinity phase contrast achromatic 20X/0.40 PHP(Spring)

2480120

Infinity phase contrast achromatic 40X/0.65 PHP(Spring)

2480140

Infinity phase contrast achromatic 100X/1.25 PHP(Spring, Oil)

2480111

CCD adapter

0.4X

810001

0.5X

810004

1X

810002

0.5X with dividing 0.1mm/Div

810003

Camera

DV-1(With USB & video output)

800001

DV-2(With USB output)

800003

DV-3(With video output)

800005

Photography

USB Output

1096001

VIDEO Output

1108001

Digital camera adapter

CANON Digital camera adapter(A610,A620,A630,A640)

820001

Photograph unit

MD Adapter

840003

PK Adapter

840004

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

840001

4X Focusing photograph attachment

840002

Facility polarize

Polarizer(360° rotatable stage)

111001

Analyzer

111101

Adapter(For LED illumination)

Input: 230V 50/60HZ   Output: 9V  500mA

101001

Input: 110V 50/60HZ   Output: 9V  500mA

101002
