ASM-112 Stereo Microscopes

                            Microscope Characteristic

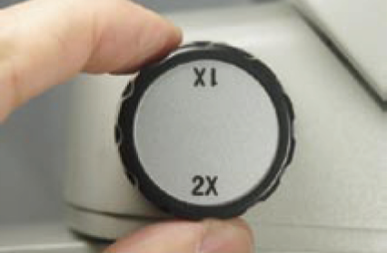

    Standard with 10X/20X two-step magnification
    Adopts a two-step magnification magnification system for quick switching of magnifications
    The professional design of C-shape base provides sufficient operation space for the technicians. There is NO base/object in the working area underneath the lens to disturb the operation, but the normal stereo microscopes do.

            Two Types of Support Stand

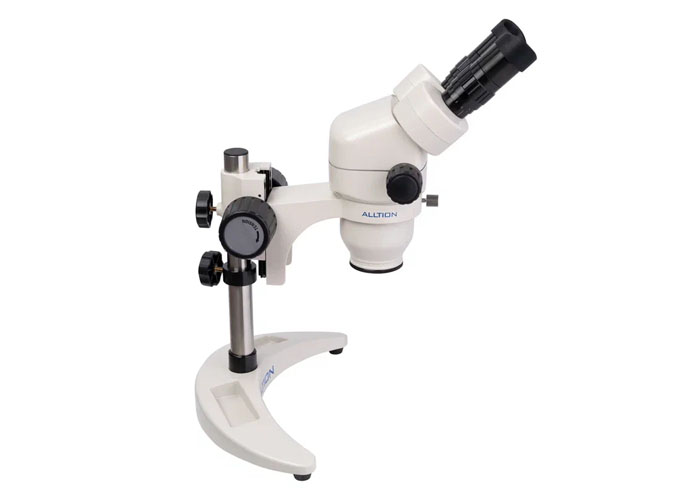

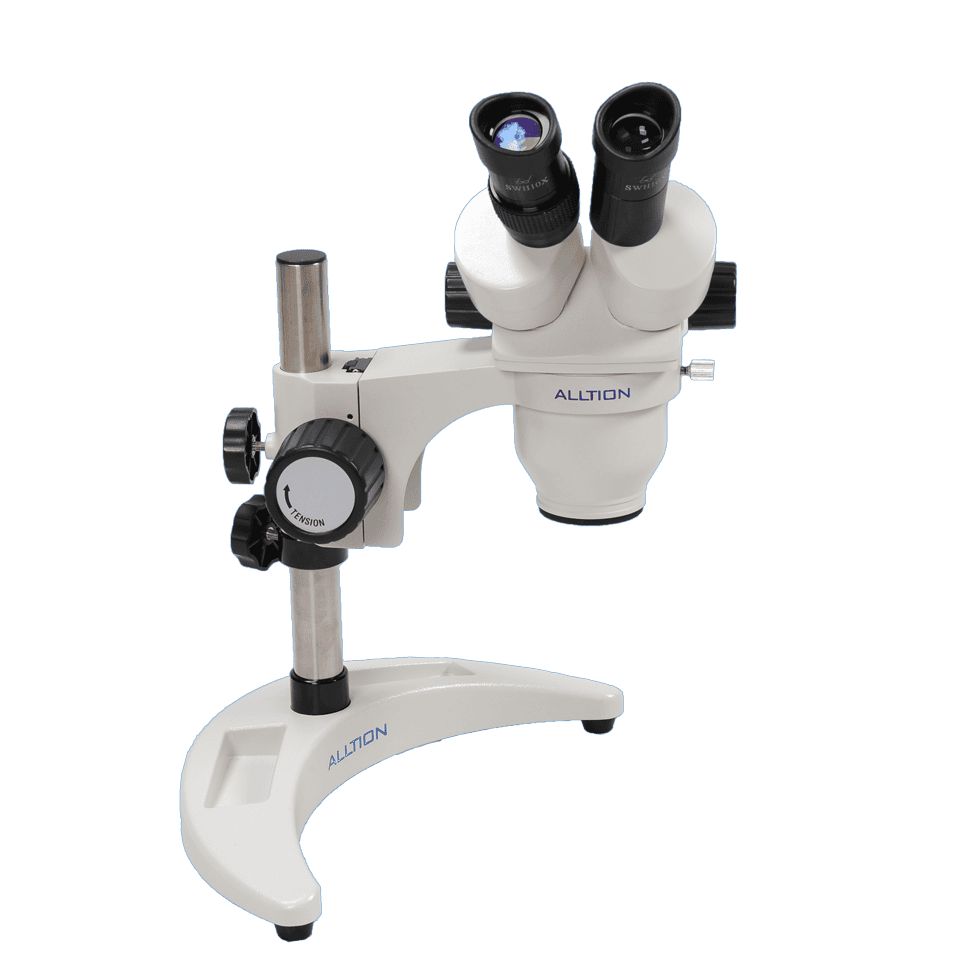

  •                     BC: Binocular, C-shape base

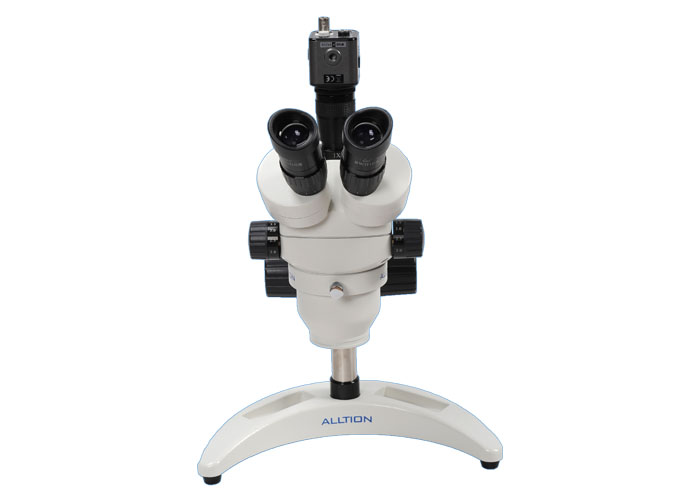

  •                     TC: Trinocular, C-shape base

            Specification

                                         Model

Description

ASM-0745BC ASM-0745TC

ASM-0745BS ASM-0745TS

Microscope main body

Objective Magnification

1X 2X

Total Magnification

10X 20X

Zoom ratio

1:2

Working distance(mm)

105

Observation tube inclination

45°

Eyepieces (10X)

Field of view: Φ23mm

Interpupillary distance adjustment range

52mm-75mm(10X)

Diopter adjustment

Provided on left eyepiece tube only

Magnification adjustment

Magnification with both hand wheels in horizontal direction Rotating

Focusing for BC & TC models only

Rack-and-pinion drive on ball bearing guides, focusing range: 51mm

            Optinal Accessories

SWF5X/23mm Eyepiece

SWF10X/23 Reticle Eyepiece (OCM10/100X）

WF20X/15mm Eyepiece

WF30X/9mm Eyepiece

Additional objective 0.37X

Additional objective 0.5X

Additional objective 0.7X

Additional objective 1.5X

0.3X CCD Adapter

0.5X CCD Adapter

1X CCD Adapter

CANON and/or Nikon DSLR adapters

LED Ring Light

Dustcover

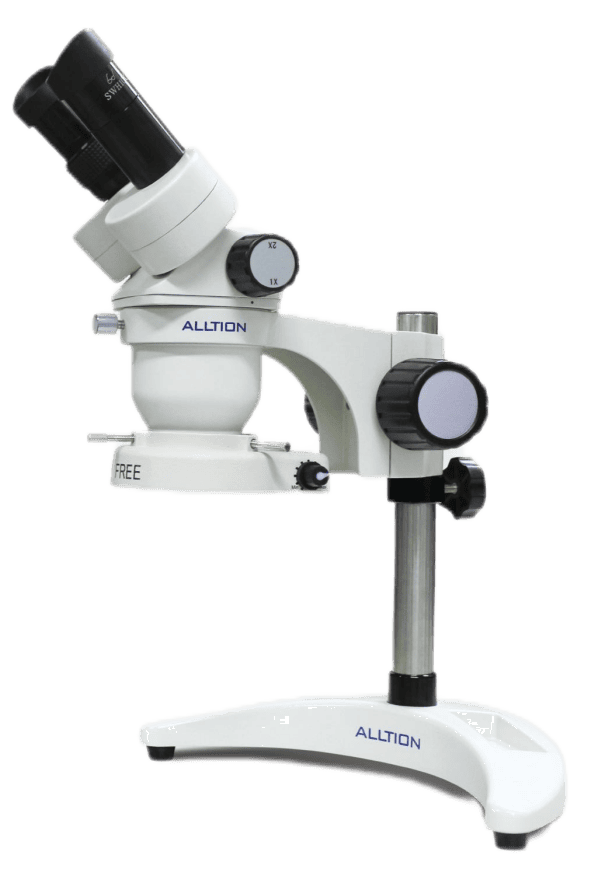

            ASM-112BS Stereo Microscope & LED Ring Light
