ASM-0745 Stereo Microscopes

                            Microscope Characteristic

    Standard with 7X-45X magnification system
    Adopts a stereo zoom magnification system for quick switching of magnifications

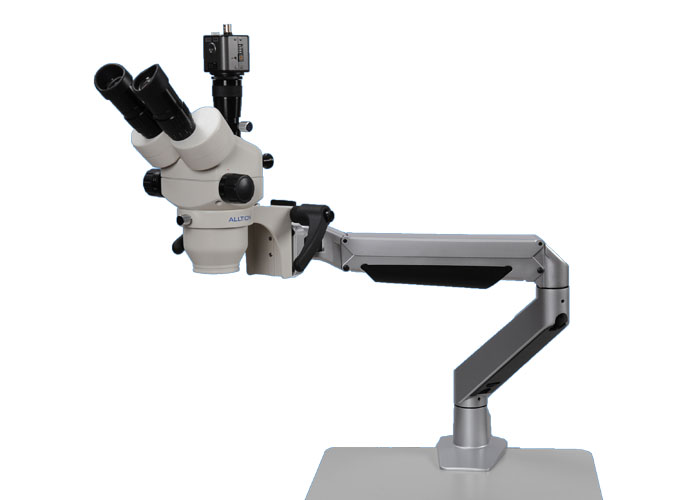

    ASM-0745 Trinocular Model is available. CCD camera and SLR camera could be attached through optional accessories.

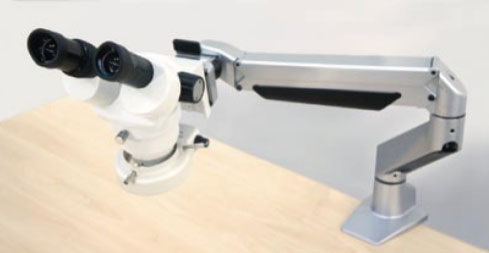

    Pantograph arm with table top clamp employ random stop gas spring. It extends the operation range tremendously and is convenient for operation at any position and locks automatically.

            Two Types of Support Stand

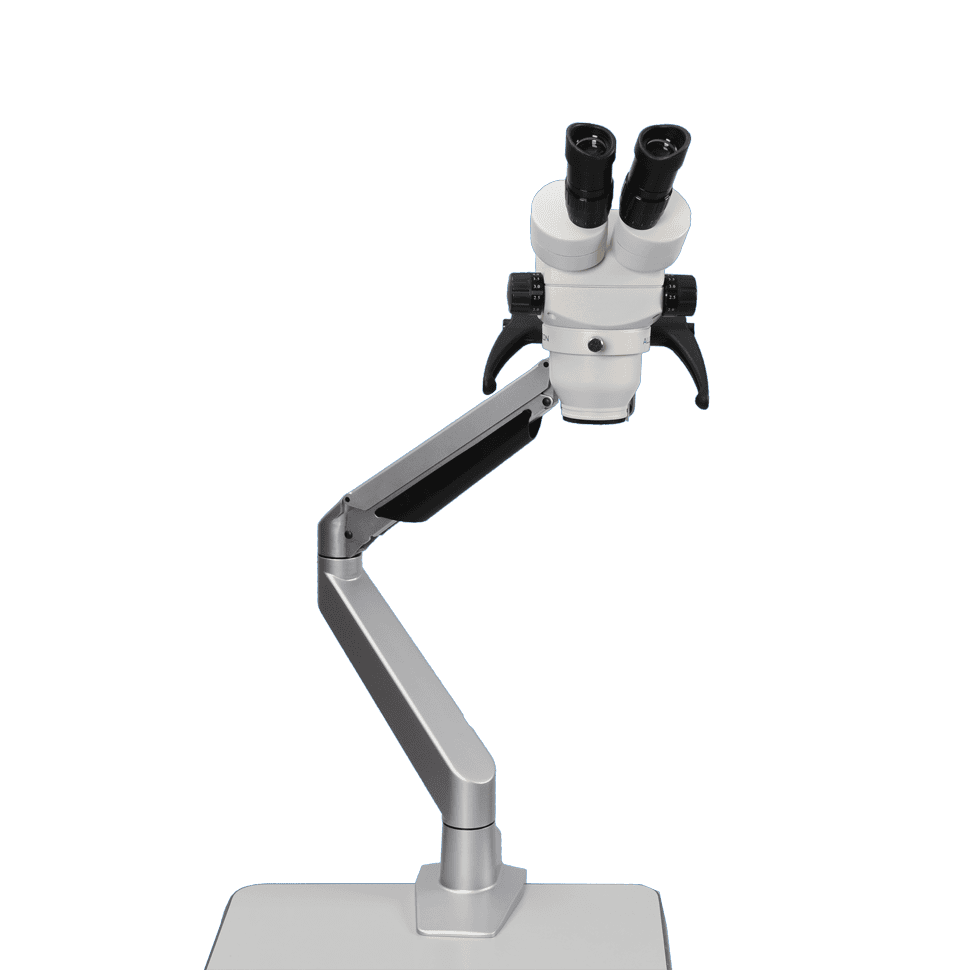

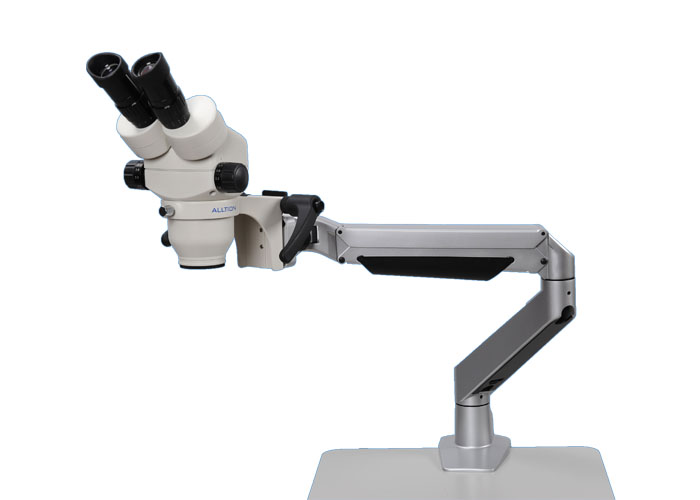

  •                     BS: Binocular, Pantograph arm with table
    top clamp with handgrips
  •                     TS Trinocular, Pantograph arm with table
    top clamp with handgrips

            Specification

                                         Model

Description

ASM-0745BC ASM-0745TC

ASM-0745BS ASM-0745TS

Microscope main body

Objective Magnification

0.7X~4.5X

Total Magnification

7X~45X

Zoom ratio

1:6.5

Working distance(mm)

110

Observation tube inclination

45°

Eyepieces (10X)

Field of view: Φ23mm

Interpupillary distance adjustment range

52mm-75mm(10X)

Diopter adjustment

Provided on both eyepiece tubes

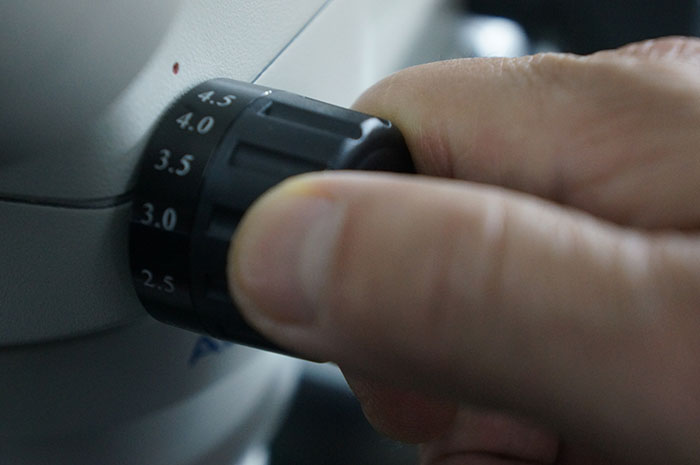

Magnification adjustment

Magnification with both hand wheels in horizontal direction Rotating

Focusing for BC & TC models only

Rack-and-pinion drive on ball bearing guides, focusing range: 51mm

            Optinal Accessories

SWF5X/23mm Eyepiece

SWF10X/23 Reticle Eyepiece (OCM10/100X）

WF20X/15mm Eyepiece

WF30X/9mm Eyepiece

Additional objective 0.37X

Additional objective 0.5X

Additional objective 0.7X

Additional objective 1.5X

0.3X CCD Adapter

0.5X CCD Adapter

1X CCD Adapter

CANON and/or Nikon DSLR adapters

LED Ring Light

Dustcover


            ASM-0745 Stereo Microscope & LED Ring Light
