L3000

BIOLOGICAL MICROSCOPE

L3000 series biological microscope is equipped
with plan achromatic objectives and wide field eyepieces.

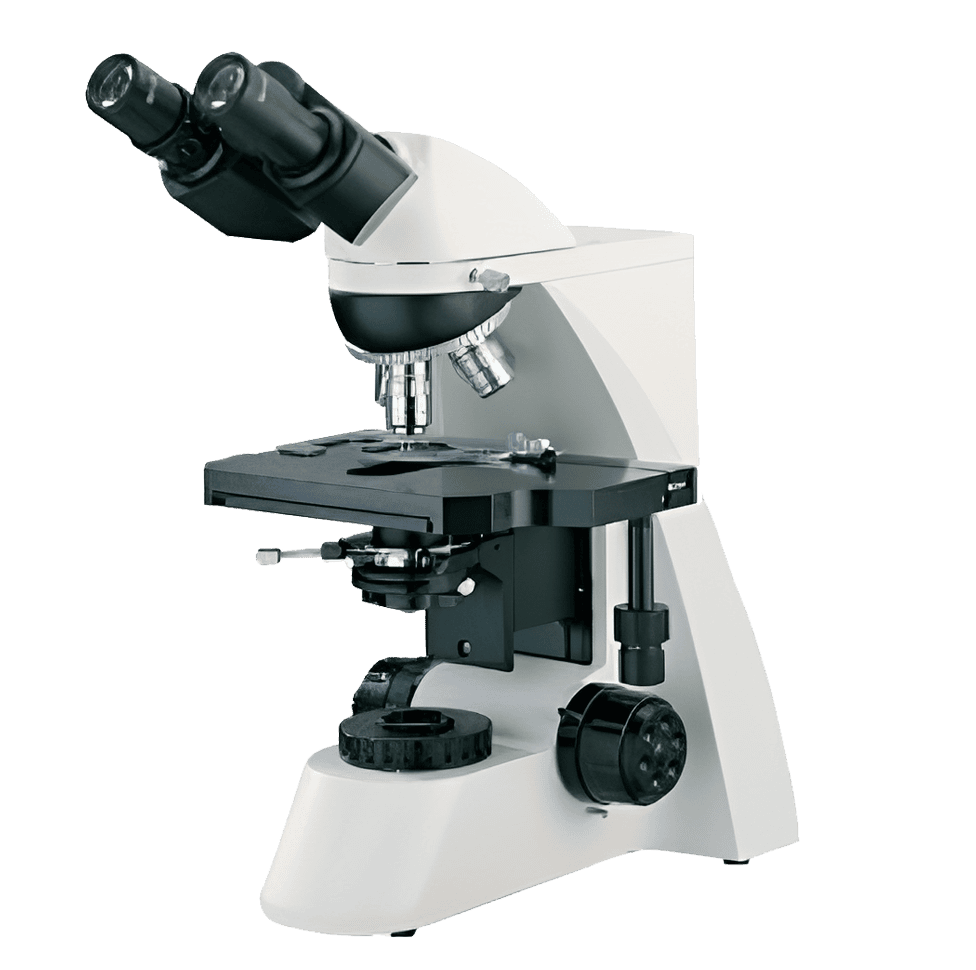

L3000 series biological microscope
Provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Observation System
Binocular,single diopter adjustment inclined 30° ,comfortable and good-looking. Trinocular can be connected to camera.10X wide field plan eyepiece,field Φ20mm,can provide an expanse and smooth space.
Illumination System
The illumination system with 6V 20W halogen lamp (brightness adjustable)can provide clear and bright image for light field observation, but also for dark field observation and phase contract observation.
The system also includes the collector with field diaphragm.

Function Spread

If you want to upgrade the optics function and increase the system agility, you can choose to use theinfinity emendation optics system.

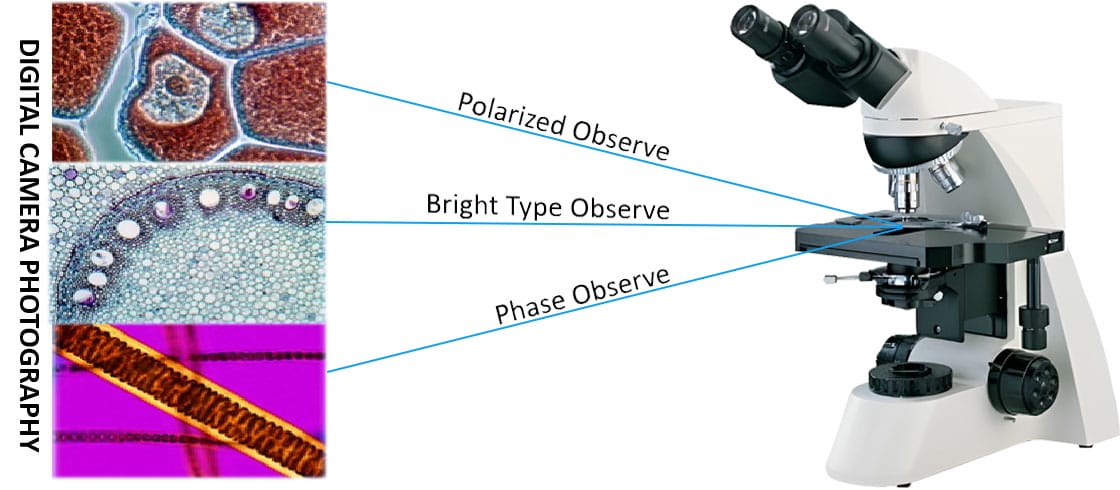

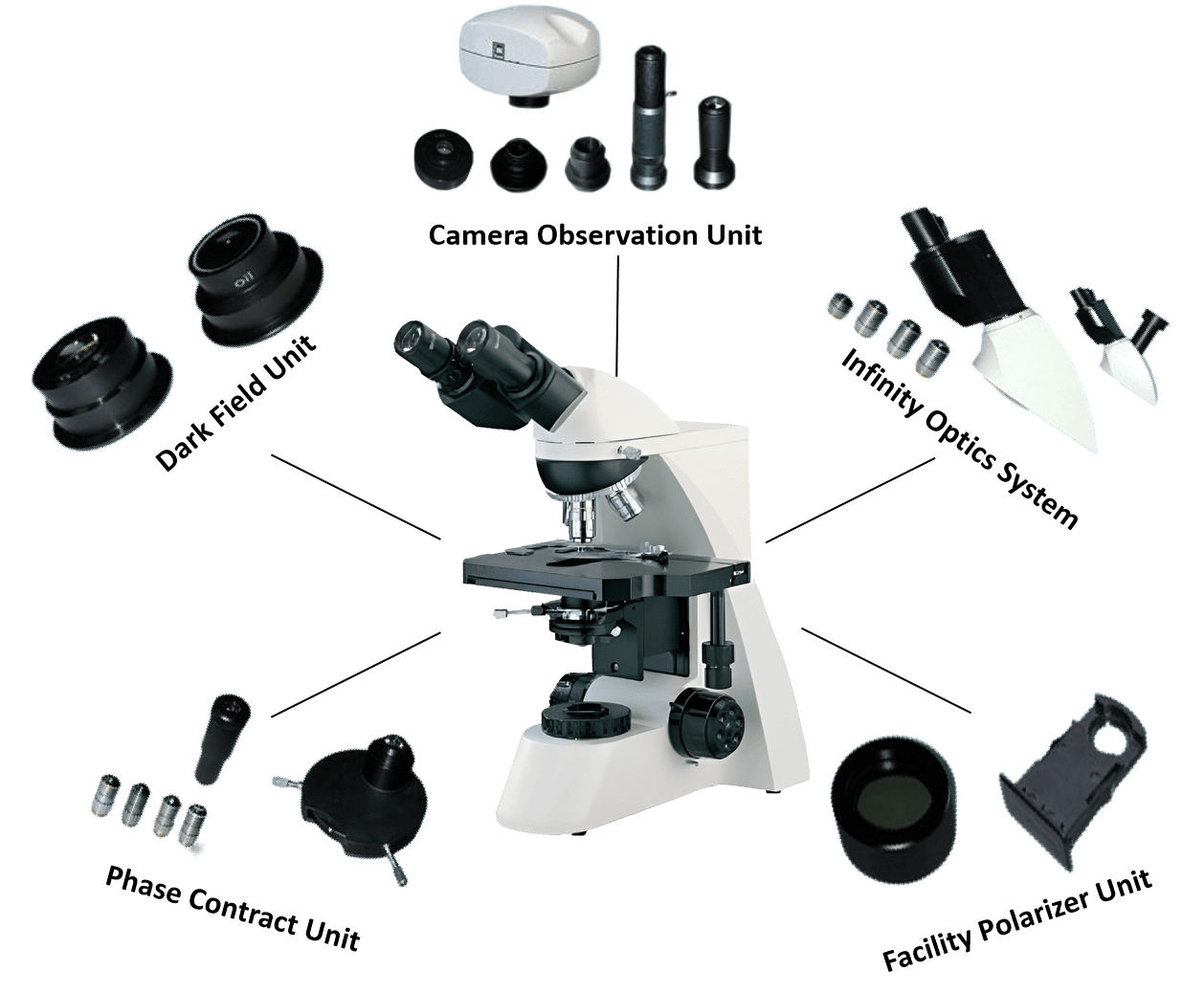

By adding the appurtenance of phase contract unit, dark field unit,camera observation unit and facility polarizer unit,it can spread to manifold modes for observation that satisfy the need to different research work.

Features of L3000 Biological Microscope

▲ With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ Using Kohler illumination with 6V 20W halogen lamp with brightness control
