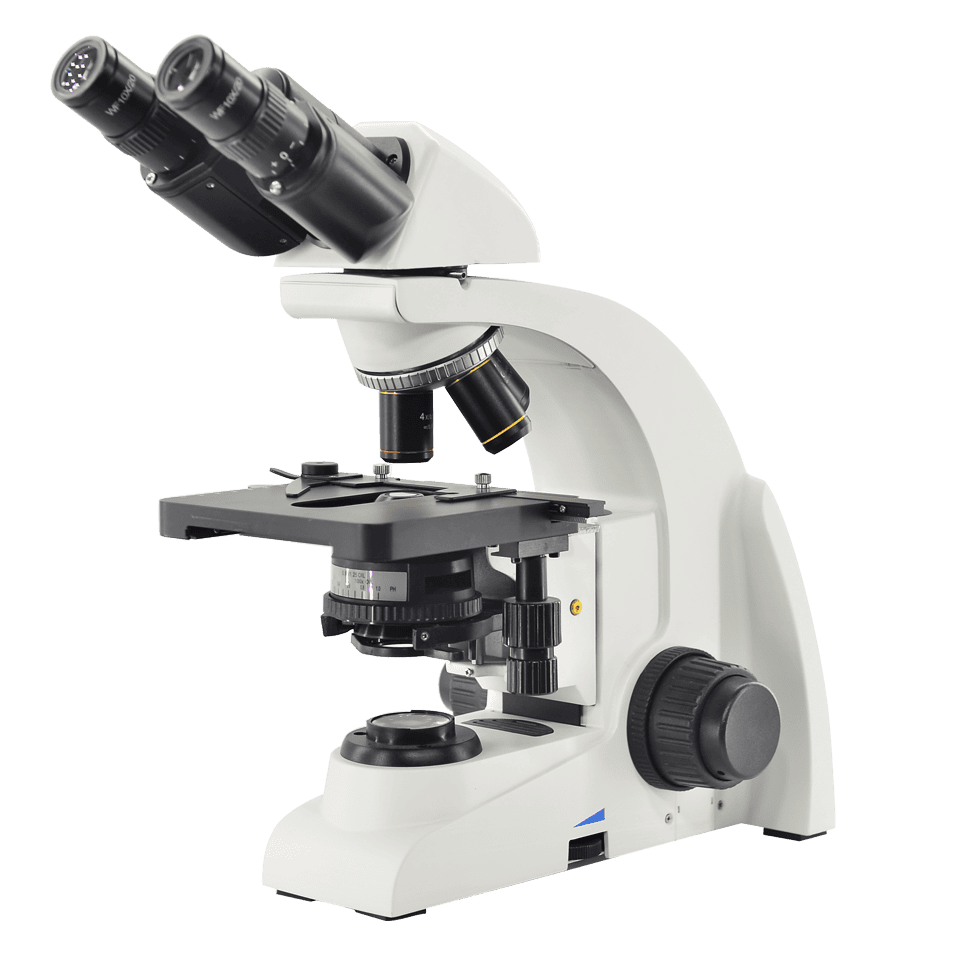

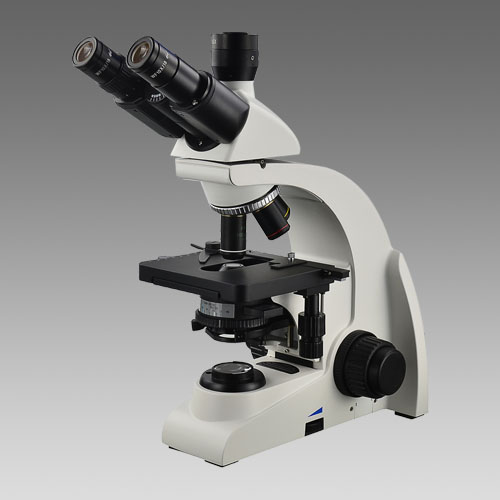

ABM100 SERIES BINOCULAR MICROSCOPE

    With its elegant figure, brilliant UCIS optical system, thoughtful ergonomic desire and stable mechanism, the Abm100 series microscopes are one of our contribution to you for your routine tasks in medicine,clinical laboratories, pathology, and biology.

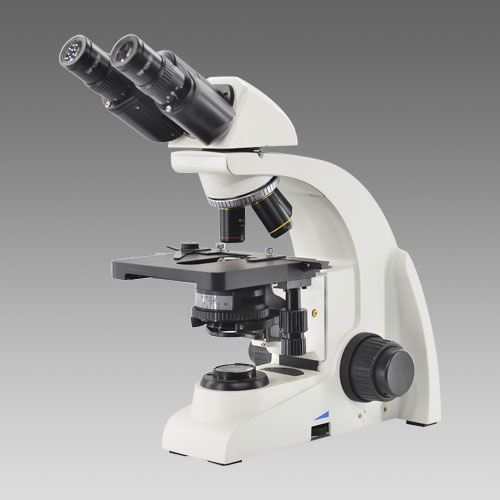

  1. ABM102
  2. ABM102

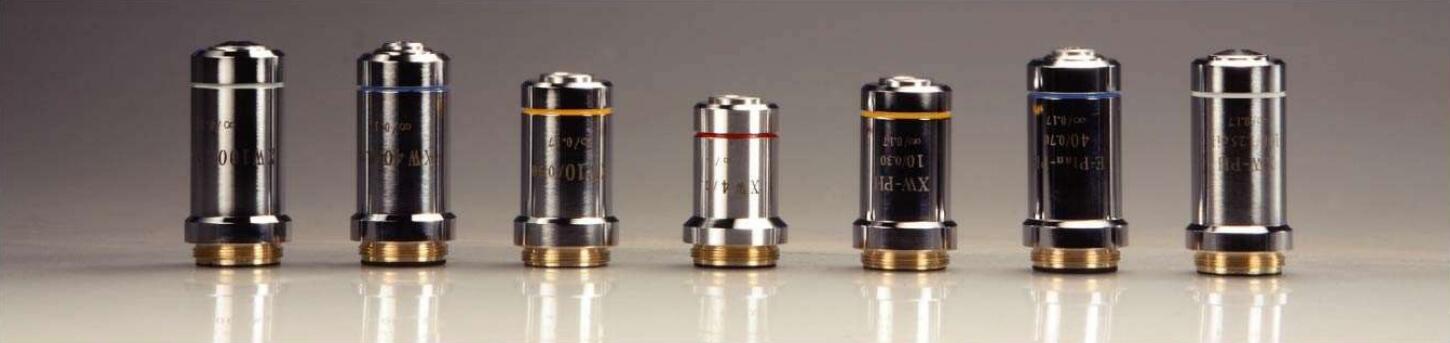

Objectives

Benefit form brilliant UCIS Infinity Achromatic Optics Design,objectives own higher numerical apertures,capture fiat images over the entire field of view with virtually minimum curvature.

  • Bright field
  • Phase-contrast

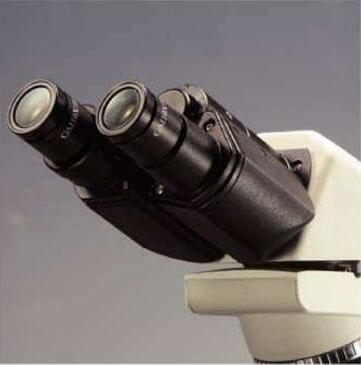

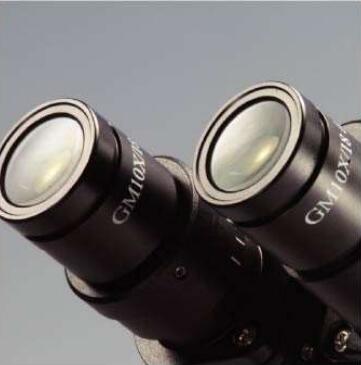

  • High eye-point eyepiece10X, 21mm High eye point view-field Φ18mm diopter adustable, eye shadeoptional
  • Eergonomic and Flexible Observation Tube 30°inclined adjustable
    Interpupillary Distance
    52-74mm,360° rotatabe

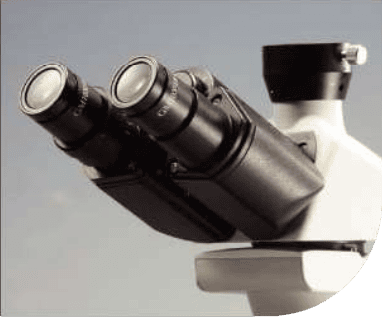

  • Trinocular Tube
    1. Light s split 20/80 by a high quality coated prism. Easy to connect and working with digital camera and computer

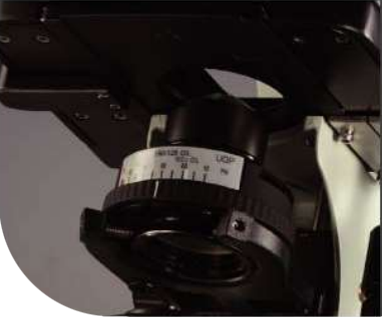

  • Abbe Condenser with Color-coded Diaphragm Scale Markings
    1. Abbe condenser NA 1.25 with aperture is diaphragm and with socket to accommodate PH slide. Condenser center adjustable, height adjustable. Colorcoded diaphragm scale markings cooresponded with the objectives of different powers

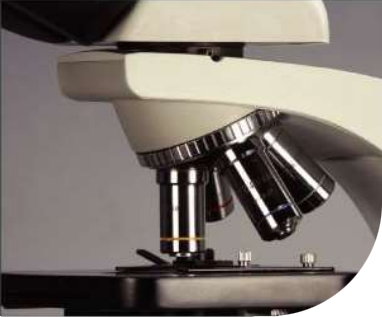

  • Revolving Nosepiece
    1. Quadruple nosepiece, Quintuple option a Reversed type

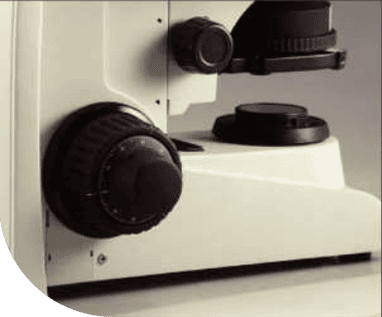

  • Eergonomic Co-axial Coarse and Find Adjustment Knob
    1. Low positioning. Coaxial coarse and fine focusing knob,Coarse knob tension adjustable, Fine: 0.1mm per rotation, Coarse: 14mm per rotation, Minmun reading:1 microns of left-side fine focusing knob.

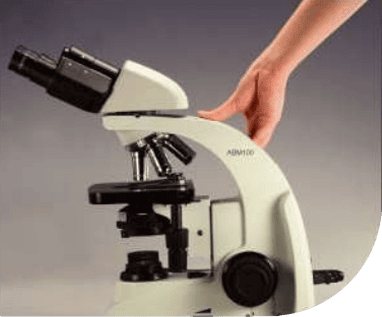

  • Grasping Part
    1. Make you more easy to move the microscope.

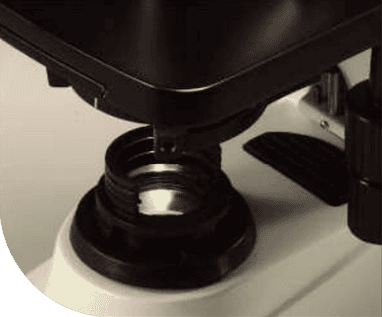

  • Bright and Even Illumination
    1. Bull-in 6V/20W halogen bulb,High-aperture aspherical lens is equipped in standard Koler and the optional Kholer with field diaphragm to achieve more bright and even illumination.The brightness intensity control is conveniently located and provides steady even illumination at all levels

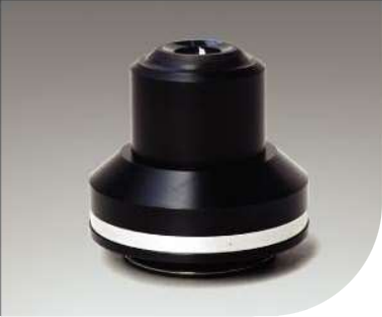

  • Dark Condenser
    1. For your dark field observation and can be installed quickly and easily.
  • Polarization
    Easy Lamp Replacement

    The lamp house cover is easy to open/close By just griping the cover button and pull/push

  • Darkfield
    High-efficiency heat-sink

    limits the surface temperature of the microscope at lower temperature even after more than 24 hours working time and keeps you from burnt
