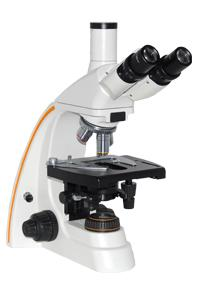

L2800 BIOLOGICAL MICROSCOPE

Objective

Infinity plan achromatic objective

PL 4X/0.10 (Work distance) ：19.8 mm

PL 10X/0.25 (Work distance) ：5.0 mm

PL 40X/0.65 (Spring) (Work distance) ：0.66 mm

PL 100X/1.25 (Spring, oil) (Work distance) ： 0.36mm

Eyepieces tube

Binocular / Trinocular, Inclination of 30˚ .

Focus system

Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.

Nosepiece

Quardruple(Backward ball bearing inner locating)

Stage

Double layer mechanical

(Size:193mmX155mm,movingrange:75mmX50mm)

Transmitted illumination  system

Abbe condenser   NA.1.25   Rack & pinion adjustable

Blue filter and Ground glass

Collector for LED lamp illumination

Objective

Infinity plan achromatic objective

PL 20X/0.40 (Work distance) ：8.8 mm

2060120

PL 60X/0.85 (Work distance) ：0.25mm

2060160

 Phase contrast unit

Eyepiece

Centering telescope

110002

Objectives

Infinity phase contrast plan achromatic 10X/0.25 PHP

2470110

Infinity phase contrast plan achromatic 20X/0.40 PHP

2470120

Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)

2470140

Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)

2470111

Sliding phase contrast

Filter

Green filter

115002

Yellow filter

111105

Illumination system

6V 30W light
