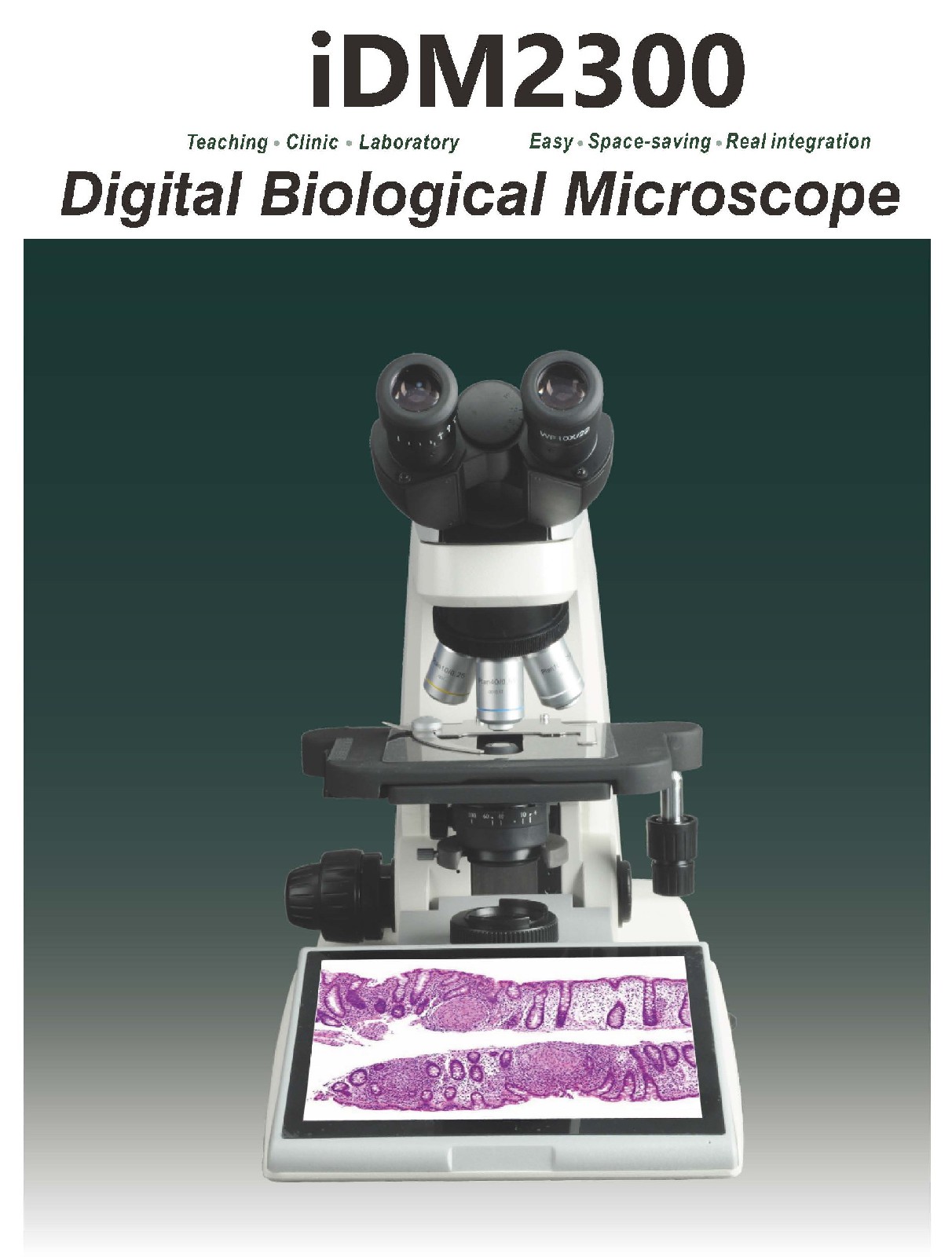

IDM2300 Digital Biological Microscope

Teaching·Clinic·Laboratory Easy Space-saving·Real integration

IDM2300 Digital Biological Microscope 001.jpg

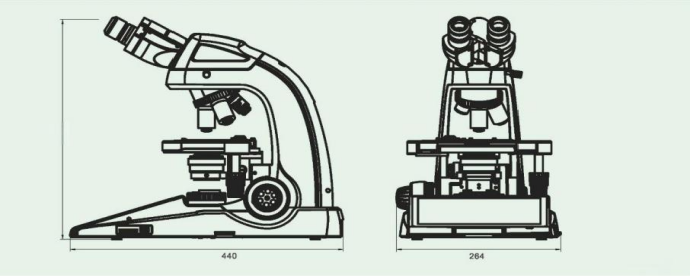

System Dimension Drawi

More functionality

● Dark field microscopy

Bright field/dark field condenser,used for the low magnification(below 40X) dark field observation needs)	Professional field condenser(dry), black background,more bright:	Professional field condenser (oil),black background, more bright,more suited to the high NA value of the dark field observation

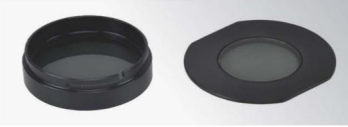

● Polarizing microscopy

Polarizer is placed in the barrel, between the mirror body,partial mirror"card"on the condenser, 360 degree rotation:ordinary beam can be changed into a polarized light, suitable for anisotropic crystal

material microstructure analysis

● Phase contrast microscopy

By using phase contrast device (objective,condenser,centering telescope)for matching microscopic observation, especially for in low contrast specimens analyzed.

● CF phase contrast objective

Centering telescope(10X40X100X)

●● Phase plate condenser

Bright field microscopic observation

Phase contrast microscopy

●●● Rotary table type mufti-functional condenser

Bright field microscopic observation

Dark field microscopy

Phase contrast microscopy

Specifications

Model	IDM2300
Optical System	Infinite optical system
Viewing Head	Seidentopf built-in digital binocular head inclined at 30°, Interpupilary 48-75mm,USB 2.0 port
Eyepiece	WF10X22,diopter adjustable
Objective	Plan objective 4X,10X,40X,100X
Objective	Optional Achromatic objective 20X,60X
Nosepiece	Backward quadruple nosepiece,Accurate and reliable location
Mechanical moving stage	Cross Travel 78(X)mm x54(Y)mm,Rectangular 216×150mm,clamp double slices
Coaxial focusing system	Coarse fine adjustment:22mm.fine division 0.002mm
Condenser	Abbe condenser with iris diaphragm &with multiple indicator &blue fitter
Illumination	5W LED illumination,brightness adjustable
Image sensor	16 million pixel science CMOs,Pixel 1.335 NM
Display	9.7 inches IPS retina screen display,resolution 2048*1536
Operating System	Win 10 system

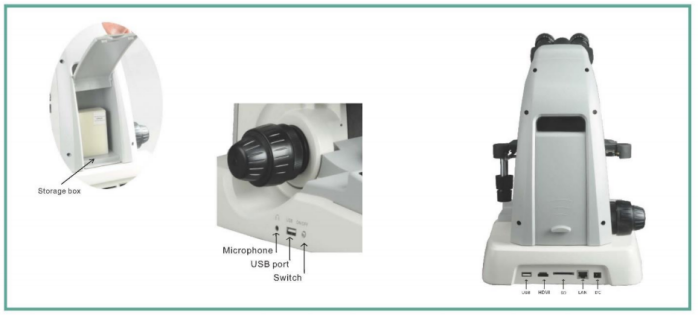

Communication, Storage	USB external interface and SD card interface,built-in WIFI wireless module,Gigabit LAN interface,HDMI synchronized to the projector or related high-definition display equipment

Observation tube

Seidentopf binocular viewing head,360°rotatable, Adjustable height of the starting point 42mm,

Built in scientific grade CMOS imago acquisition system, Seamless connection with display system.

Focusing system

Coaxial coarse and fine adjustment,focusing limiting device and a torque adjusting mechanism.

Coarse stroke:22mm.fine division 0.002mm,

The low position coaxial hand wheel.

Mechanical stage

Size:216mmX150mm,

Cross travel:78mmX54mm,

Clamp double slices;

Condenser

Abbe Condenser NA=1.25,with iris diaphragm with multiple indicator &blue fitter φ33mm.

The vertical movement range is 25mm,the

auxiliary lens can guarantee that the entire field of vision is even and bright at low times.
