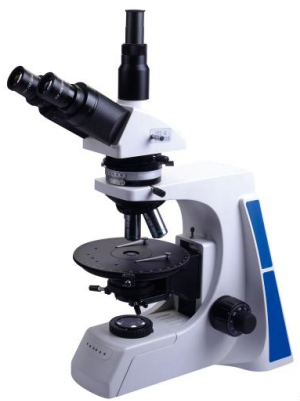

XP-180PH Series Transmission Polarizing Microscope

XP-180PH

XP-180PHT

观察头

Viewing Head

30°铰链式双目，可调瞳距50mm-75mm

Compensation Free Binocular Head 30° (50mm-75mm)

●

30°铰链式三目，可调瞳距50mm-75mm

Compensation Free Trinocular Head 30° (50mm-75mm)

●

目镜Eyepiece

WF10X网格目镜

WF10X Gridding Eyepiece

●

●

●

●

●

●

W F10X十字目镜

WF10X Eyepiece with crosshair

WF10X/22mm

WF10X/22mm

转换器Nosepiece

五孔调中转换器

Quintuple nosepiece with center adjustable

●

●

物镜

Objective

无应力无限远平场物镜

4X,10X,20X,40X(s),60X(s)

选购：无应力物镜：100X(S)Oil

Stress-free infinity plan objective: 4X,10X,20X,40X(s),60X(s)

100X(S)Oil (Optional Accessory)

●

●

平台 Stage

旋转平台

Rotary stage

●

●

●

●

●

●

平台尺寸：Φ172mm

Stage size:Φ172mm

移动范围：360°

Moving range:360°

聚光镜Condenser

N.A.1.25摇摆式聚光镜带可变光栏

Swing type N.A.1.25Abbe condenser with iris diaphragm

●

●

调焦Focusing

粗、微动同轴调焦，采用齿轮齿条传动机构 微动格值0.002mm

Coaxial coarse and fine focusing adjustment,with rack and pinion mechanism,fine focusing scale

value 0.002mm

●

●

光源Light Source

卤素灯6V/30W,AC85V-230V 亮度可调节

Halogen bulb 6V30W,AC85V-230V, brightness adjustable

●

●

集光镜IIluminator

高亮度固定式照明

High brightness fixed illumination

●

●

检测工具

Checking Tool

0.01mm测微尺

0.01mm micrometer

●

●

试片

Testing piece

石膏1λ试片

Gypsum 1λ testing piece

●

●

云母1/4λ

Mica 1/4 testing piece

石英楔子试片

Quartz wedge testing piece

可供附件

Optional

Accessory

1 、 目 镜 ： W F 1 6 X , W F 2 0 X ,

2、130万 、 3 0 0 万 、 5 0 0 万 、 1 0 0 0 万 像 素        电子目镜

3、 摄 影 装 置 及 C C D 接 口 ： 0 . 3 5 X 、 0 . 5 X 、 0 . 6 3 X 、 0 . 7 5 X 、 1 X

4. 2 X 摄 影 目 镜 ， 各 款 单 反 机 接 口

1.Eyepiece:WF16X,WF20X

2.CMOS: 1.3Mega,3.0Mega,5.0Mega,10.0Mega

3.Photography attachment and ccd adapter:0.35X,

0.5X,0.63X,0.75X,1X

4.2X Photography eyepiece,Various SLR camera

adapter
