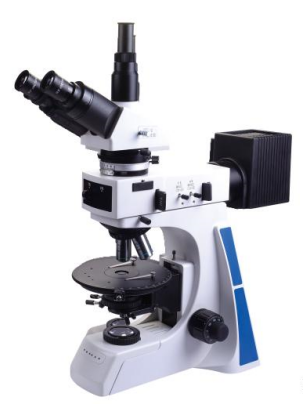

XP-180LP Series Transmission & Reflection Polarizing Microscope

XP-180LP

XP-180LPT

观察头

Viewing Head

30°铰链式双目，可调瞳距52mm-75mm

Compensation Free Binocular Head 30° (52mm-75mm)

●

30°铰链式三目，可调瞳距52mm-75mm

Compensation Free Trinocular Head 30° (52mm-75mm)

●

目镜Eyepiece

WF10X22mm

WF10X22mm

●

●

W F10X20mm十字目镜

WF10X20mm Cross Eyepiece

W F10X20mm分划目镜

WF10X20mm Reticule Eyepiece

W F10X20mm网格板目镜

WF10X20mm Gridding Eyepiece

物镜

Objective

无限远平场消色差无应力金相物镜 40X,60X

Stress-free infinity plan metallurgical objective: 40X   60

●

●

无限远平场消色差无应力 4X,10X,20X,40X,60X

Stress-free infinity plan objective: 4X,10X,20X,40X(s),60X(s)

平台

Stage

旋转平台

Rotary stage

●

●

平台尺寸：φ172mm

Stage size:Φ172mm

移动范围：360°

Moving range:360°

聚光镜Condenser

N.A.1.25摇摆式阿贝聚光镜带可变光栏

Swing type N.A.1.25Abbe condenser with iris  diaphragm

●

●

调焦Focusing

粗、微动同轴调焦，采用齿轮齿条传动机构 微动格值0.002mm

Coaxial coarse and fine focusing adjustment,with

rack and pinion mechanism,fine focusing scale

value 0.002mm

●

●

光源Light Source

上照明：卤素灯12V/50W,AC85V-230V 亮度可调节

Upper illumination:Halogen bulb 12V50W AC85V-230V,brightness adjustable

●

●

下照明：卤素灯12V/30W,AC85V-230V 亮度可调节

Down illumination:Halogen bulb 12V30W, AC85V-230V,brightness adjustable

●

●

集光镜IIluminator

高亮度固定式照明

High brightness fixed illumination

●

●

滤色片Filter

插板式滤色片(绿、蓝、中性)

Green,blue,neutral

●

●

检测工具

Checking Tool

0.01mm测微尺

0.01mm micrometer

●

●

试片

Testing piece

石膏1λ试片

Gypsum 1λ testing piece

●

●

云母1/4λ

Mica 1/4 testing piece

石英楔子试片

Quartz wedge testing piece

可供附件

Optional Accessory

1、目镜：WF16X,WF20X,P16X,

2、130万、300万、500万、1000万像素CMOS电子目镜

3、无应力物镜：100X(S)Oil

4、摄影装置及CCD接口:0.35X、0.5X、0.63X、0.75X、1X

5、2X摄影目镜，各款单反机接口

1.Eyepiece:WF16X,WF20X,P16X

2.CMOS:1.3Mega,3.0Mega,5.0Mega,10.0Mega

3.Stress-free objective:100X(S) Oil

4.Photography attachment and ccd adapter:0.35X,

0.5X,0.63,0.75X,1X

5.2X Photography eyepiece,Various SLR camera adapter
