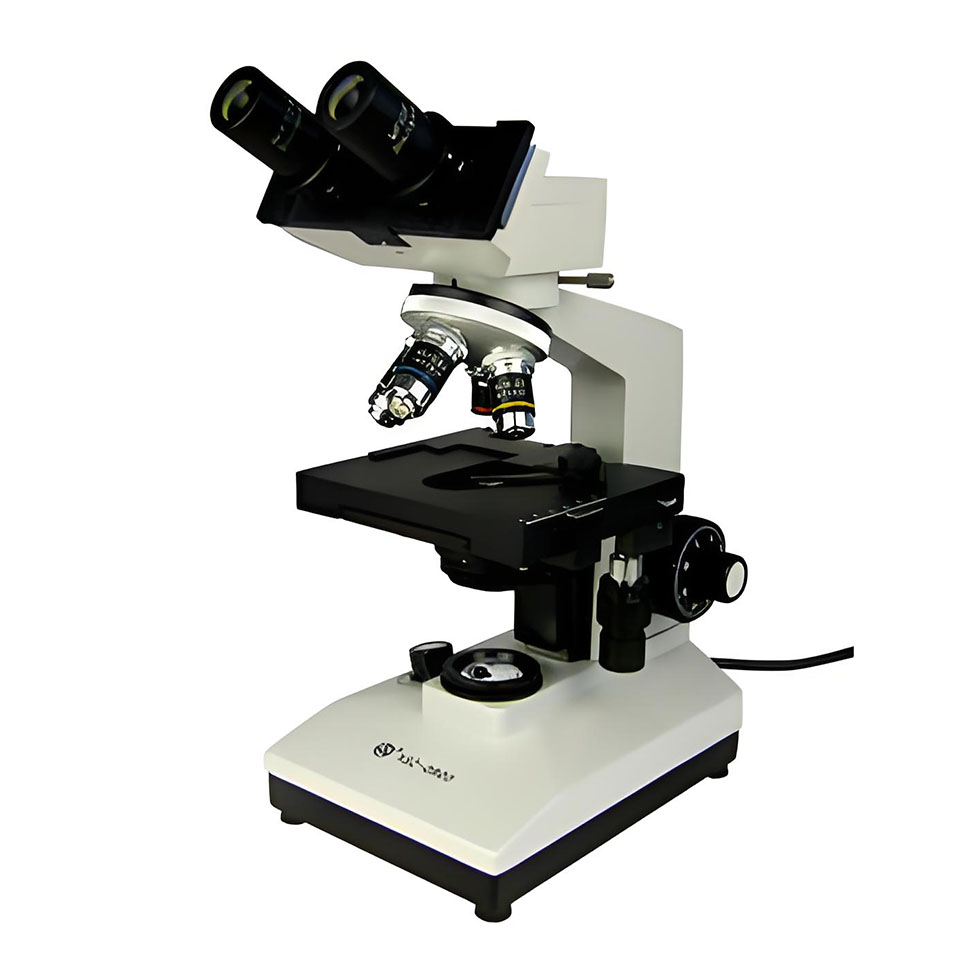

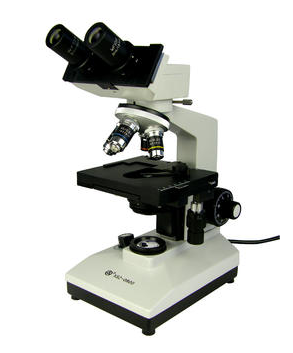

XSZ-0808 BIOLOGICAL MICROSCOPE

The product is widely suitable to observe and analyze in experiment for medicine and hygiene 、farming and forestry of plant protection、animal husbandry and aquatic product、biological engineering、college and school etc.


Specification：

Total Magnification：40X-1000X

Viewing Body：Square 45°Incline Monocular Body

Square 45°Incline Dual Viewing body

30°Incline Binocular Body，Interpupillary Adjustable Distance: 55mm～75mm

30°Incline Trinocular Body，Interpupillary Adjustable Distance: 55mm～75mm

Eyepiece：WF10X (Viewing Field Diameter:ø18mm)

Objectives：Adjustable Parfocal Achromatic Objective 4×/NA 0.1，10×/NA 0.25，40×(s)/NA 0.65，100×(s,oil)/NA.1.25

Mechanical Stage：Size:140mm×120mm，Moving Range:70mm×40mm，Vernier Division: 0.1mm

Nosepiece：Nosepiece of four holes revolving on ball

Condenser：Abbe Condenser: N.A. 1.25(Oil), Elevating Range:15mm

Focusing：Coaxial coarse/fine focusing adjustment. Focusing Range:20mm. Division of Fine Focus Adjustment:0.002mm

Illumination：6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V.Filter (blue)
