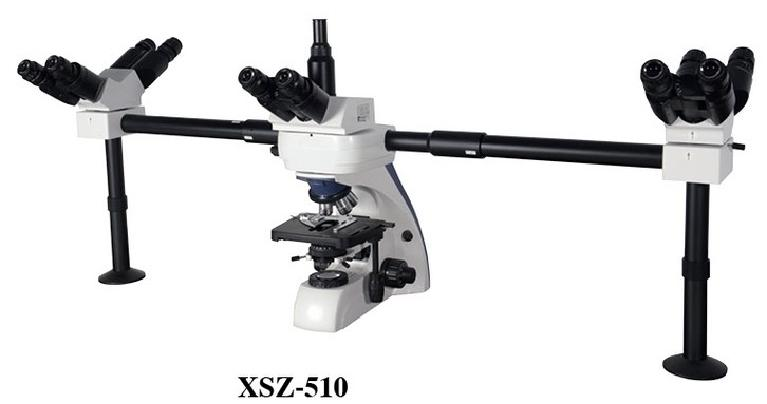

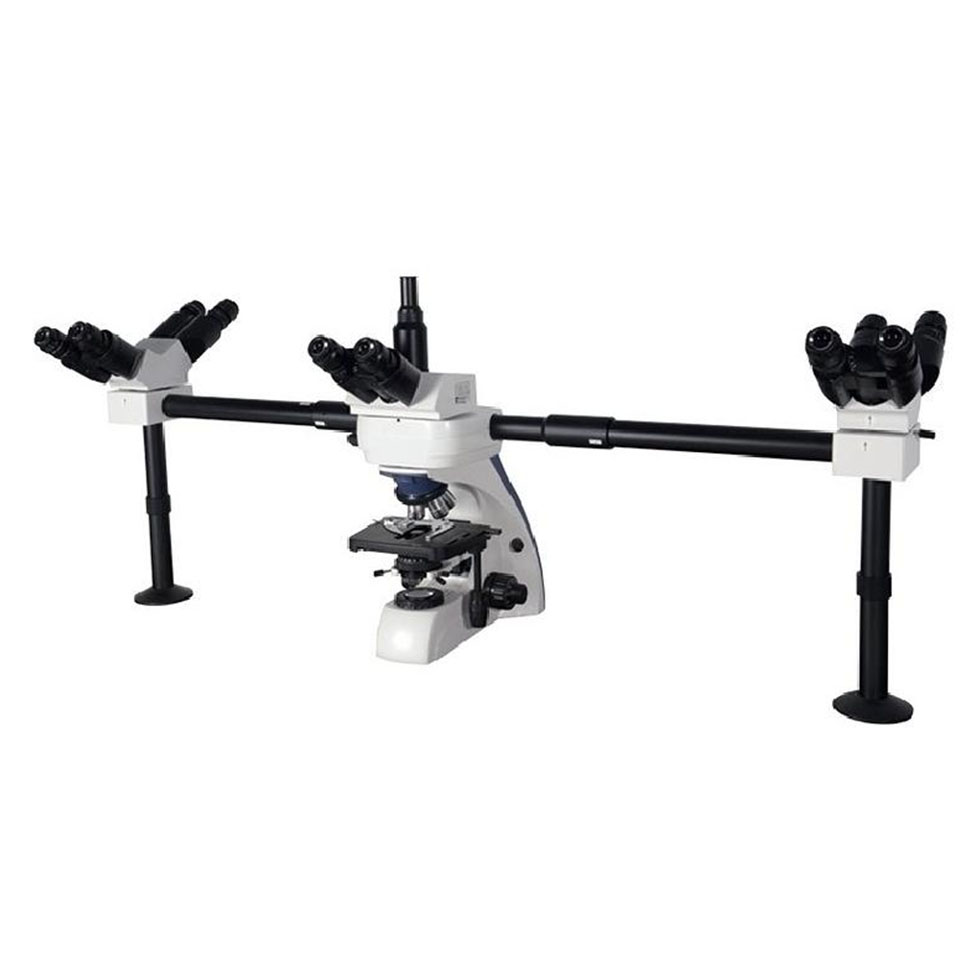

XSZ-510 multi-viewing demonstration biological microscope is designed for several people to observe one specimen together at the same time.It has infinity imaging system,high light intensity illumination system, sharp &clear image and consistent image in observation.Particularly it is suitable for discussion application in Clinic,Research and education.It supplies more bigger space for observers,that brings more comfortable in working.
In order to make convenient intercourse between the observers,the microscope is equipped with LED cursor to indicate image in the viewing field,the cursor is arrow type with light intensity adjustable button.The cursor can be moved freely,any position of the image can be indicated.
XSZ-510 型多人观察教学显微镜可供多人共同观察同一标本。无限远成像系统、高亮度照明系统、 观察图像的良好一致，特别适用于临床、科研及教学讨论用。观察者之间的空间较大，使用更舒适。
为了方便观察者交流，显微镜安装了 LED 光标指示器，可在显微镜中指示图像，指针为箭头形状，设有亮度调节旋钮。指针可任意移动，能够指示画面的任何位置。
XSZ-510 multi-viewing demonstration biological microscope is designed for several people to observe one specimen together at the same time.It has infinity imaging system,high light intensity illumination system, sharp &clear image and consistent image in observation.Particularly it is suitable for discussion application in Clinic,Research and education.It supplies more bigger space for observers,that brings more comfortable in working.
In order to make convenient intercourse between the observers,the microscope is equipped with LED cursor to indicate image in the viewing field,the cursor is arrow type with light intensity adjustable button.The cursor can be moved freely,any position of the image can be indicated.
技术规格 Specification | 型 号 M o d e l | |||
XSZ-510 | XSZ-510A | |||
光学系 system | 无限远光学系统 | Infinite optical system | ● | ● |
观察头 Viewing Head | 30°铰链式三目 可调瞳距50mm - 75mm | Compensation Free Trinocular Head Inclined at 30°(50mm-75mm) | ● | ● |
五人十目 | 4-Binocualr head, interpupillary distance adjustable 50mm-75mm | ● | ||

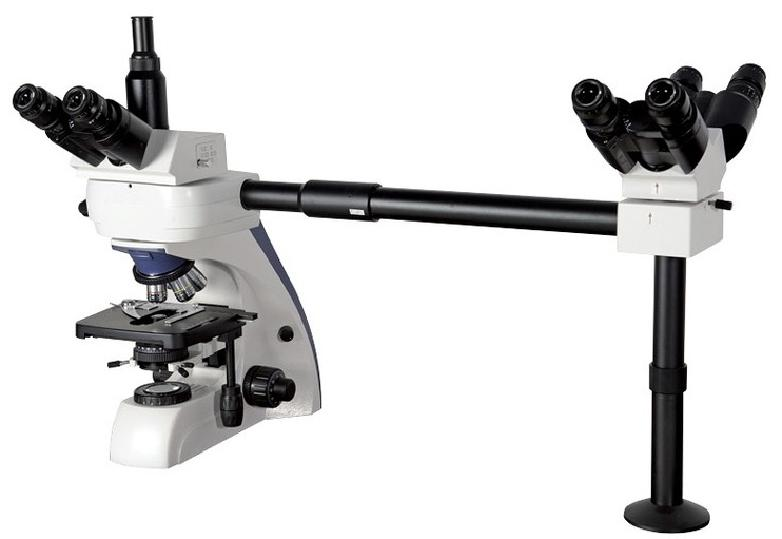

三人六目 | 2-Binocular head,interpupillary distance adjustable 50mm -75mm | ● | ||
目镜Eyepiece | 宽视场平场目镜WF10X/22mm | Plan WF10X/22mm | ● | ● |
物镜 Objective | 平场无限远物镜 4X/0.10、10X/0.25、40X/0.65、100X/1.25(Oil) | Infinity plan objective 4X/0.10、10X/0.25、40X/0.65、100X/1.25(Oil) | ● | ● |
转换器 Nosepiece | 四孔转换器 | Quadruple Nosepiece | ● | ● |
平台Stage | 双层移动平台 平台尺寸：180×160mm 移动范围：80mm×50mm | Double layers mechanical stage Stage size:180X160mr Moving range:80mmX50mm | ● | ● |
调焦Focusing | 粗微动同轴调焦，微动格值0.002mm | Coaxial coarse &fine focusing adjustment fine focusing scale value 0.002mm | ● | ● |
光源source | Kohler 照明，带孔径光阑和视场光栏 卤素灯12V/100W, AC85V - 230V, 亮度连续可调 | Kohler illumination with aperture iris diaphragm and field iris diaphragm Halogen Bulb 12V/100W,AC85V-230V, brightness adjustable | ● | ● |
示教指针Indicator | LED示教指针，亮度可调 | LED cursor,brightness adjustable | ● | ● |
可供附件 Optional Accessory | 目镜：WF15X/17mm、WF20X/12.5mm 平场无限远物镜：20X/0.40、60X/0.85 半平场无限远物镜：4X/0.10、10X/0.25、 20X/0.40、40X/0.65、60X0.85、100X1.25(Oi) 摄影装置及CCD接口：0.5X、0.57X、0.75X 130万、200万、300万、500万、1000万 像素电子目镜 彩色1/3寸CCD700条线 图像分析软件 | Eyepiece:WF15X/17mm、WF20X/12.5mm Infinity plan objective:20X0.40、60X10.85 Infinity semi-plan objective:4X/0.10、10X10.25、 20X/0.40、 40X/0.65、60X/0.85、100X/1.25(Oil) Photography attachment and CCD C-mount:0.5X、0.57X、 0.75X 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels CMOS Digital camera eyepiece CCD Camera,colour13” High resolution700 TV lines Image analysis software | ||
