mecharical smuchure
High resolution and excelent image and wistle
Easy to operate and compiete optional accessones. t is
mainly appled in testirng semi-conductor process, materials
and mineral resmarching, prection engineering etc.

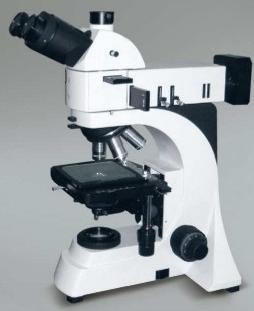

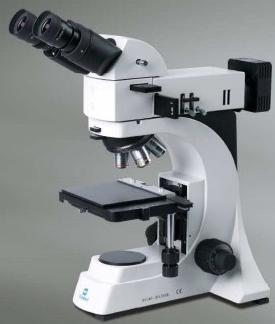

XY-MR(Reflection)
XY-MRT(Transmission and reflection)
XY Series Metallurgical Microscope Technology Specification
Opical system | Color orrected infnity oplical system(CSIS) |
Vewing head | Infnly gemel binocular/trnocular head,30*indlined,inter-pupllary range.54mm to 76mm,Light spit rate:binocuar 100%,bnocubrl |
trinocular 80%/20% | |
Gemel dgial head,20°inalined,inter pupllary range.54mm to 75mm | |
Eyepiece | Hgh eye point wide field plan eyepiece PL10×22mm |
Optional:Hgh eye point wide field eyepiece wth adjustable diopter PL10X22T,plan eyepiece PL15×/16 | |
Nosepiece | Reversed quintuple nosepiece |
Objectve | Long working dstanceinfriy plan achromatic metalurgical objectie 5X,10X,20X.50X(Semi-apochromatc),100X(Semi-apoctromaic) |
Condenser | N.A.0.7 swing achromaticcondenser(transmission &reflection) |
Focus | Low position coaxial focus system with tension adjustable,coarse 28mm per rotation,fne precision 0.002mm |
Specimen height can obtain 50mm(reflection),30mm(Transmission and reflection) | |
Stage: | Double layer mechnical stagewith low positioncoaxial contros |
Sze:175mmX145mm,Movng range:76mmX42mm | |
luminator | Refecicr Refedion ilurminafion with field daphragm and apcture diaphragm,wide rang vilage 00240V,cingle 3WLED bub |
Transmission &refection Refection ilumination with feld diaphragm and aperture diaphragm,wide-range voltage 90-240V,single 3W | |
LED bulb,Transmission iumination:Wde-range volage 90-240V,12V50W halogen bulb | |
Polanzer devce | Polarizer board(Refection),Polarzer group(Transmission) |
Fixed analyser board,360°rotary anayserboard | |
Accessones | Stage plate(Glass,Metal),Fiters(yellowibluelgreen/neutral),Micrometer side 0.01mm,video &photo aocessories |
Characteristics
Optical system: Color corrected infinity optical system (CSIS), High image quality, high resolution and comfortably viewing
Eyepiece and Objective:High eye point wide field plan eyepiece PL10X/22mm,veiw field number 22mm,provide wide and flat
viewing space, and can mount many kinds of micrometer, Long working distance infinity plan achromatic metallurgical objective, don't need coverslips
Viewing head: Infinity gemel type binocular / trinocular / digital head,30"inclined,
Focus system: Low position coaxial focus system with tension adjustable,coarse:28mm per rotation, fine precision 0.002mm; Specimen
height can obtain 50mm(reflection)、30mm(Transmission and reflection)
Illuminator system: Reflection: Reflection illuminator with field diaphragm and aperture diaphragm, wide-range voltage 90-240V，single 3WLED bulb
Transmission & reflection: Reflection illuminator with field diaphragm and aperture diaphragm, wide-range voltage 90-240V， single 3W
LED bulb; Transmission illuminator: wide-range voltage 90-240V, 12V/50W halogen bulb
Objective parameter table
Magnification | NA | Working distance(mm) | Coverslip thickness | Conjugate distance(mm) |
5X | 0.14 | 20.5 | 0 | |
10X | 0.25 | 16 | 0 | |
20X | 0.40 | 7.8 | 0 | |
50XS | 0.55 | 7.9 | 0 | |
100Xs | 0.80 | 2.1 | 0 |
Eyepiece parameter table
Eyepiece | PL10X22 | PL10X/22R | PL10X/22T | PL15X/16 |
Field of view | 22mm | 22mm | 22mm | 16mm |
Remarks | Standard | Optional | Optional | Optional |

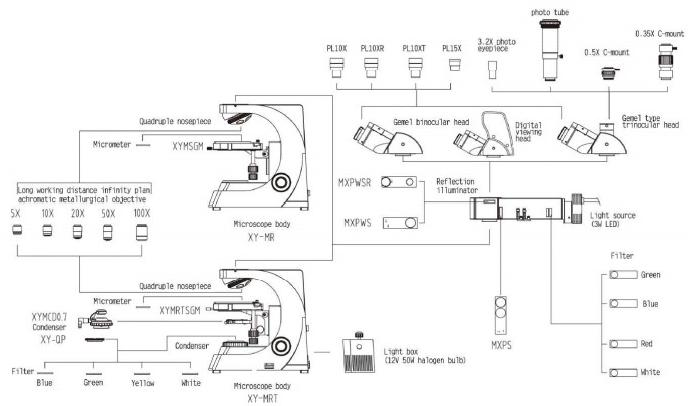

XY Series Metallurgical Microscopes Configuration Chart

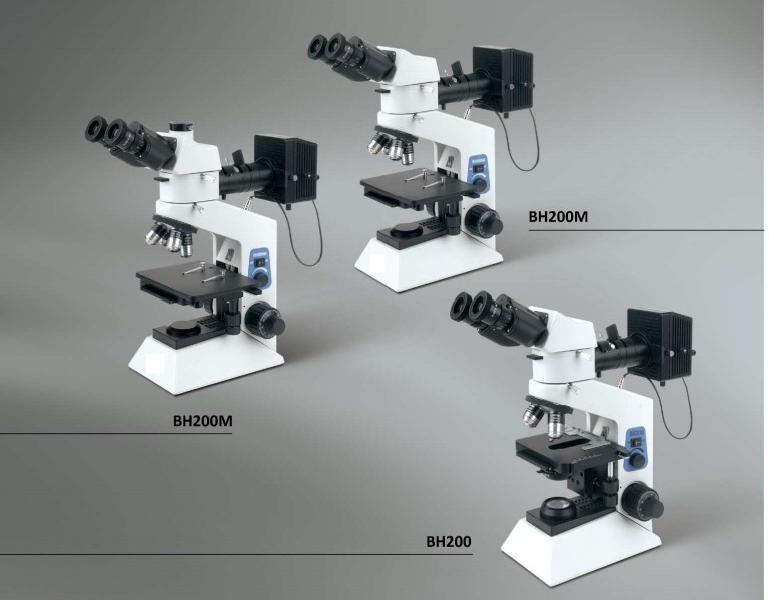

BH200M Series Metallurgical Microscope Technology Specification
BH200M Series Metallurgical Microscope TechnologySpecification | |
Optical system | Color corrected finity optical system |
Objective | Long working distance plan achromatic metalurgical objective 5X,10X,20X,50X,100X |
Eyepiece | High eye point plan eyepiece PL10X/18mm |
Viewing head | Gemel binocular head,30°inclined,360 rotatable,with adjustmnetdiopte |
Gemel trinocular head,30°inclined,360 rotatable,with adjustmnet diopte | |
Muminator | Reflection Koehler ilumination,wide range voltage 90-240V,6V/30Whalogen bulb,with continuous intensity |
Focus | Coaxial focus system with tension adjustment and up-limted,coarse range:.25mm,fine precision 0.002mm |
Nosepiece | Quadruple nosepiece,Optional:Quintuple nosepiece |
Stage: | Double layer mechanical stage,Size:140mmX132mm(attached 180mmX145mm plate stage) |
Accessories | C-mountadapter,Polarizer accessories:polarizer and analyser board |
Characteristics
● Optical system: Color corrected finity optical system, high image qualityand resolution
Eyepiece and Objective: a) High eye point plan eyepiece PL10X，veiw field number 18mm,provide wide and flat viewing space,
and can mount many kinds of micrometer,
b) Achromatic metallurgical objective, plan achromatic metallurgical objective and Long working distance professional achromatic
metallurgical objective;
c) Don't need coverslips
● Illuminator system: a) Reflection Koehler illumination, anti-reflection structure, effectively prevent the interference of reflected light,
making images clearer and better field of view contrast
● Adopt wide-range voltage 90-240V，6V/30W halogen bulb, the center of filament can be adjusted and brightness can be continuously adjusted.
● Stage: Double layer mechanical stage, low position coaxial focus system, attached 180mmX145mm plate stage, easy to put a
larger sample.
● Accessories: a) Can put the yellow, green, blue, white filter in optical, provide different color lighting to view kinds of samples
b) Polarizing viewing by taking polarizer and analyser into optical way
c) Polarizer ±25°adjustment, can adjust the orthogonal state and view contrast
Objective parameter table
ltem | Magnification | N A | Working distance(mm) | Coverslip thickness(mm) | Conjugate distance(mm) |
Long working distance plan achromatic metallurgical objective | 5X | 0.13 | 15.5 | 0 | 195 |
10X | 0.25 | 8.7 | 195 | ||
20X | 0.40 | 8.8 | 195 | ||
50Xs | 0.60 | 5.1 | 195 | ||
100Xs | 0.80 | 2.0 | 0 | 195 |
Eyepiece parameter table
Eyepiece | PL10X/18 | PL10X/18R | WF15X/13 | WF15X/13R | WF20X/10 | WF20X/10R |
Field of view | 18mm | 18mm | 13mm | 13mm | 10mm | 10mm |

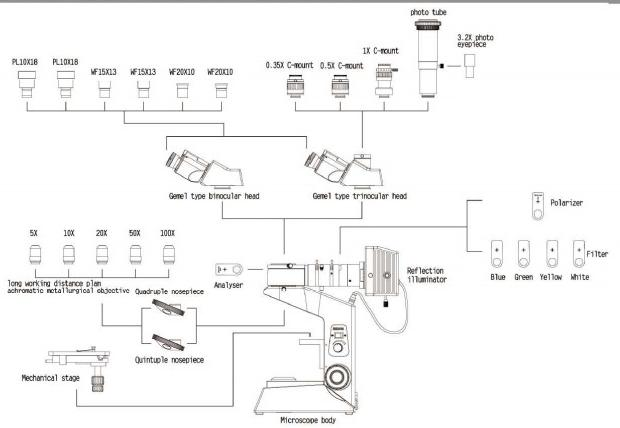

BH200M Series Metallurgical Microscopes Configuration Chart

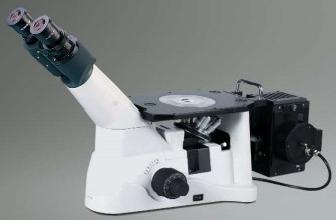

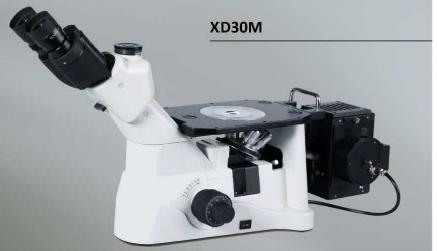

XD Series Inverted Metallurgical Microscope Technology Specification
XD Series Inverted Metallurgical Microscope Technology Specification | |
Optical eyetem | Color corrected infinity optical system(CSiS) |
Viewing head | Infinity gemel binocular/trinocular head,45°inclined,inter-pupillary range:54mm to 75mm,Light split rate: |
binocular 100%,binocular /trnocular 80%/20% | |
Eyepiece | High eye point wide field plan eyepiecePL10X/22mm |
Optional High eye point wide field eyepiece PL15X16mm | |
Nosepiece | Quintuple nosepiece |
Objectve | Long working distanceinfinily plan achromatic metalurgical objectve 5X,10X,20X,50X(Semilapochromatic). |
100X(Semi-apochromatic) | |
Focus | Lowposition coaxialfocus system with tension adjustable,coarse:38mm per rotation,fne precision 0.002mm(2p) |
Stage: | Fixed stage,Size:175mmX145mm,can mount specimen fixture,extension plate and the coaxial mechanical mobile |
ruler | |
lluminator | Reflection Koehler ilumination with aterable aperure diaphragmand centerable field diaphragm,wide-range |
volage 90-240V,12V/50Whalogen bulb,with continuous intensity | |
Polarizer device | 360°rotary analyser,the polanzer andpolanzer both can shift outthe optical way |
Mdeo &photo aocessoies | C-mount adapter(1/2,1/3)and Relay miror |
Other | Metal stage plate,Sides holder (-54 and 26.5X76.5),Terasaki holder (-64mm and 56X81.5),Mechanical mobile |
ruler 120*78,Stage extension plate | |
Characteristics
● Optical system: Color corrected infinity optical system (CSIS),High image quality, high resolution and comfortably viewing
● Eyepiece and Objective:High eye point wide field plan eyepiece PL10X/22mm,veiw field number 22mm,provide wide and flat viewing
space, and can mount many kinds of micrometer; Long working distance infinity plan achromatic metallurgical objective, don't need coverslips
● Viewing head: Infinity gemel type binocular / trinocular head.45°inclined,
● Focus system: Low position coaxial focus system with tension adjustable,coarse:38mm per rotation, fine precision 0.002mm(2μ)
Illuminator system: Reflection Koehler illuminator with alterable aperture diaphragm and centerable field diaphragm , wide-range voltage 90-240V，12V/50Whalogen bulb, with continuous intensity
Stage: Can mount low position coaxial mechanical mobile ruler and stage extension plate, Expand the working space to meet the different requirement of customers
Objective parameter table
Magnification | N.A | Working distance(mm) | Coverslip thickness(mm | Conjugate distance(mm) |
5X | 0.14 | 20.5 | ||
10X | 0.25 | 16 | ||
20X | 0.40 | 7.8 | 0 | |
50X | 0.55 | 7.9 | ||
100X | 0.80 | 2.1 | 0 |
Eyepiece parameter table
EYEPIECE | PL10X22 | PL10X22R | PL10X/221 | PL15X/16 |
Field of view | 22mm | 22mm | 22mm | 16mm |
Remarks | Standard | Optional | Optional | Optional |

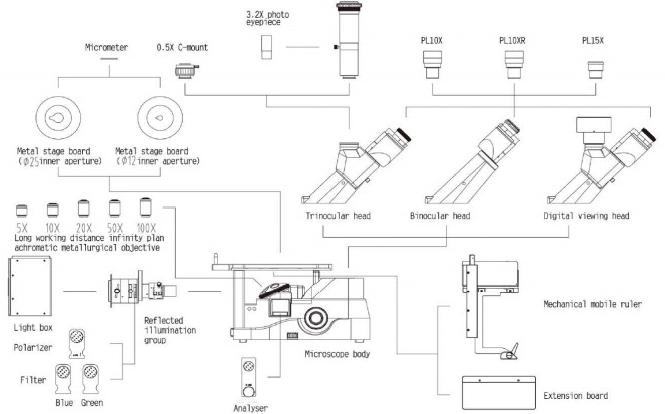

XD Series Inverted Metallurgical Microscopes Configuration Chart
XD Series Inverted Metallurgical Microscope Technology Specification

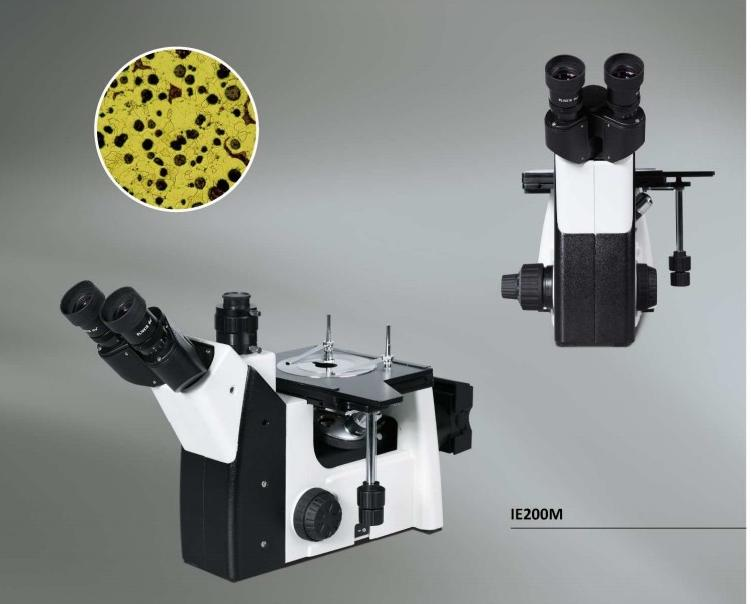

IE Series Inverted MetallurgicalMicroscope Technology Specification | |
Optical system | Color corrected finity optical system |
Viewing head | Gemel trinocular head,45°inclined,with adjustmnet diopter,inter-pupillary range:54mm to 75mm,Light |
split rate:80%/20% | |
Eyepiece | Higheye point plan eyepiece PL10X18mm |
Nosepiece | Quadruple nosepiece;Optional quintuple nosepiece |
Objective | Long working distance plan achromatic metallurgical objective 5X,10X,20X,50X,100X |
Stage | Mechanical stage,Size:180mmX155mm,Lowposition control by rght hand, |
moving range:75mmX40mm,precieion:0.1mm | |
Focus | Low position coaxial focus system,coarse:38mm per rotation,fine precision 0.002mm |
lluminator | TransmissionKoehler illumination with alterable aperture diaphragm and centerable feld diaphragm, |
wide-range voltage 90-240V,6V/30W halogen bulb,with continuous intensity | |
Polarizerdevice | 360°rotary analyser,the polarizer and analyser both can shift outthe optical way |
Mdep &photo accessones | C-mount adapter (1/2,1/3)and Relay mirror |
Characteristics
● Optical system: Adopt special metallurgical objective and PL10X plan eyepiece, High image quality, high resolution and comfortably viewing
● Focus system: Low position coaxial focus system,coarse:38mm per rotation,fine precision 0.002mm, Mechanical stage,
● Size:180mmX155mm, Moving range:75mmX40mm
● Illuminator system: Transmission Koehler illuminator with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240V，6V/ 3W high brightness and long life LED bulb
● Video & photo accessories: Adopt the corresponding photographic accessories, to acquire and save the imge, Analysis with computer and professional metallographic image analysis software
Objective parameter table
tem | Magnification | NA | Working distance(mm) | Coverslip thickness(mm) | Conjugate distance(mm) |
Long working istance plan achromatic metallurgical objective | 5X | 0.13 | 5.5 | 0 | 195 |
10X | 0.25 | 8.7 | 195 | ||
20X | 0.40 | 8.8 | 195 | ||
50X | 0.60 | 5.1 | 195 | ||
100X | 0.80 | 2.0 | 0 | 195 |
Eyepiece parameter table
EYEPIECE | PL10X/18 | PL10X/18R | E16Y | WF15X/13R | WF20X10 | WF20X/10R |
Field of view | 18mm | 18mm | 13mm | 13mm | 10mm | 10mm |

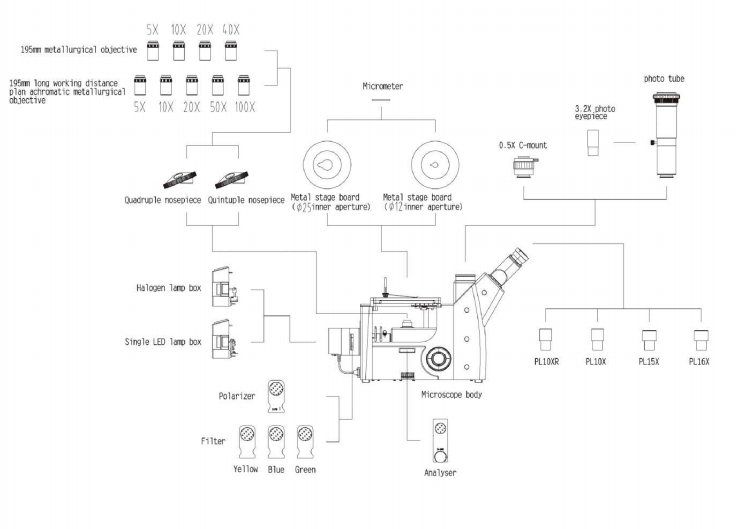

IE Series Inverted Metallurgical Microscopes Configuration Chart

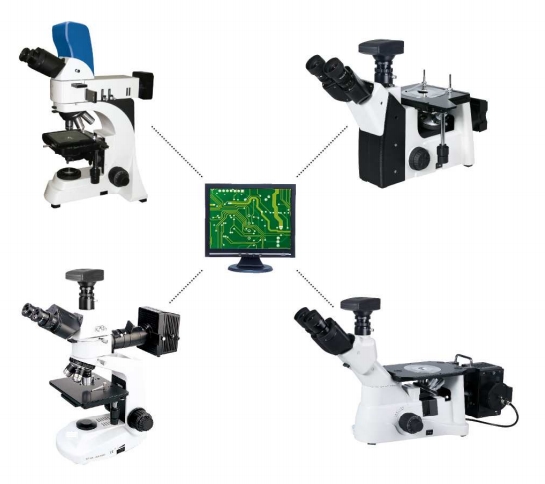

● Connect CCD and Trinocular tube with special C-mount to acquire the image
● Through professional image analysis software, you can do image processing, measurement, and analysis, input to the projector for teaching
● Through special C-mount, mount the digital camera on the microscope to get many image record and analysis
Software--Sunny Photolib
Function | 1.Support TWAIN standard scanners and digital cameras and avariety of image acquisition card 2.The up to date programming tools,Chinese or English menu 3.Including:color adjustment,image deformation,digital form processing,image enhancement texture analysis identifcation,such as more than hundred kinds of professional image processing and analysis function 4.Support 24 bit true color image acquisitfion,processing and analysis forRGB,CMYK,HSV,YUV color model. 5.Advanced particle automatic identificationsystem,particles automaticsegmentation fuction 6.Geometric measurement,automatic quantitative analysis,with a variety of parameters |
Operation systems | Support WN95,Win98,WIN2000 and WNXP |
Image Processing
3D Simulation
Geometric Measurement
Quantitative Analysis
Professional automatically puzzle software-Microcpec
When using high magnification objective lens to observe the slices, only can acquire the local images, at this time you can use this software to splice various parts of sections to get the complete image
● Splicing fast and accurately
● Support manual and automatic splicing function
Synthesis of multiple focal plane image software modules-Microspec
When use high magnification objective to observe uneven slice, due to the restrictions of high magnification objective lens' depth of field, only can observe the part of image clear, using the software can automatic synthesize the images which record on different focal plane, to get a clear image and increase high magnification objective lens' depth of field.

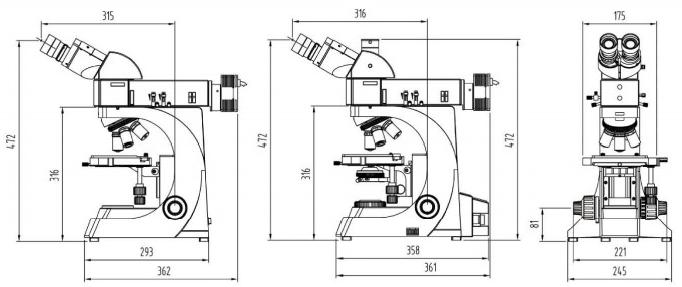

XY Series Metallurgical Microscopes Dimension Chart

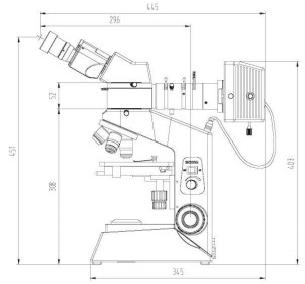

BH200M Series Metallurgical Microscopes Dimension Chart

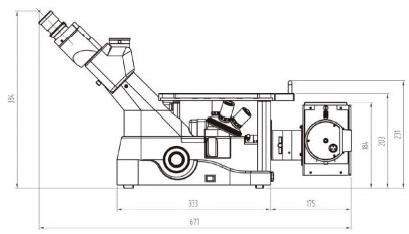

XD Inverted Series Metallurgical Microscopes Dimension Chart

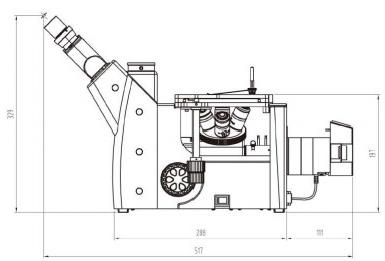

IE Inverted Series Metallurgical Microscopes Dimension Chart
XY Series Metallurgical Microscopes Specification
Specification | Mode | ||
Part | Descrption | X⁰Y-MR | Y |
Eyepiece | PL10X/22 | ||
PL10X/22R with reticle | |||
PL10X/22T with diopter adjustment | 00 | 0O | |
PL15X/16 | 00 | ||
Head | Infinity gemel binocular head,30°inclined | ||
Infinity gemel trinocular head,30°inclined adjustmnet diopte | |||
Infinity gemel digital head,30°inclined | |||
Objectives | Long working distance infinity plan achromatic metallurgical objective 5X | ||
Long working distance infinity plan achromatic metallurgical objective 10X | |||
Long working distance infinity plan achromatic metallurgical objective 20X | |||
Long working distance infinity plan Semi-achromatic metallurgical objective 50X | |||
Long working distanceinfinity plan Semi-achromatic metallurgical objective 100X | |||
Nosepiece | Reversed quintuple nosepiece | ||
Body | Reflection:Low posiion coaxial focus system with tension adjustable | ||
coarse:28mm per rotation,fine precision 0.002mm;Specimen height can obtain 50mm | |||
Transmission &Reflection:Low position coaxial focus system with ténsion adjustable, | |||
coarse:28mm per rotation,fine precision 0.002mm;Specimen height can obtain 30mm | |||
Illuminator | Reflection illuminator with feld diaphragm and aperture | ||
Condenser | N.A.0.7 swing achromaticcondenser | ||
Stage | Double layer mechnical stage with low positioncoaxial controls | ||
Size:175mmX145mm,Moving range:76mmX42mm | |||
Metal Satge plate | |||
Glass stage plate | |||
ight sources | Wide-range voltage 90-240V,single 3WLED bulb | ||
Wide-range voltage 90-240V,12V/50Whalogen bulb | |||
Filter | Interference filter (Blues480nm) | ||
Interference fiter (Green 520nm-570nm) | |||
Interference filter (Red 630nm-750nm) | O | O | |
Interference fiter (White banlance filter) | 0 | 0 | |
Photo device | Photo tube(with PK mount)3.2×photo eyepiece | 0 | O |
Digital camera device | C-mount and relay mirror | 0 | O |
C-mount adapter | 1/3X、1/2X C-mountadapter | 0 | O |
Polarizer accessones | Polarizer board (Reflection) | 0 | 0 |
Polarizer board (Transmission) | O | O | |
Fixed analyser board | O | O | |
360°rotary analyser board | |||
Pressing Machine | Pressing Machine | ||
Other | Hexagon wrench (M3,M4 | ||
ted Series Met
Products |About Us |News&Events |Service |Contact Us |Alltion
Tel:+86-774-2836101 | Email: sales@alltion.com | © Alltion (Wuzhou) Co., Ltd.
