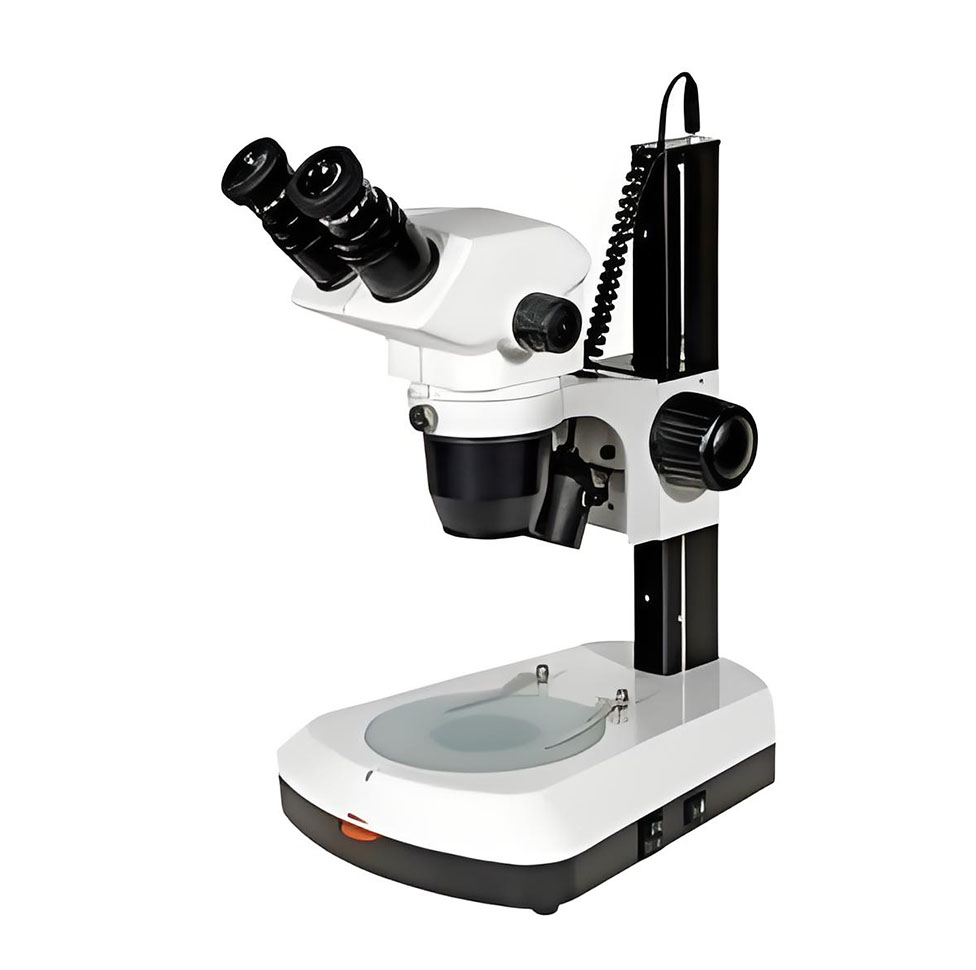

XTD-225 Zoom stereo microscope Series

XTD-225 series zoom stereo microscope can provides excellent image clarity,true colours andexact primary sample restoration,more sharper image and clearer details.High zoom ratios 1:8.5,large depth of field and high resolution.The working distance reaches 110 mm,it has enough space in actual use.It is widely used in biology,medicine,scientific research,electronic industry and other science and technology fields

XTD-225系列连续变倍体视显微镜提供杰出的图像清晰度、真实的色彩和准确的原始样品还原，图像更锐利、细节更清晰。

高变倍比(1:8.5),大景深，高分辨率.工作距离达到110mm,为使用创造足够的空间。广泛应用于生物、医学、科研、电子工业和其他科技领域。

XTD-225 XTD-225T XTD-225A XTD-225AT

技术规格 Specification				型号 Mode
				XTD-225	XTD-225T	XTD-225A	XTD-225AT
观察头 Viewin head	双目头(55mm-75mm)	Binocular head(55mm-75mm)			●		●
	三目头(55mm-75mm)	Trinocularhead(55mm-75mm)		●	●	●	●
目镜 Eyeplece	大视场平场目镜WF10X/22mm	PlanWF10X/22mm		●	●	●
物镜 Objective	0.75X-6.4X连续变倍变倍比1:8.5 工作距离110mm	Zoom range:0.75X-6.4X Zoom raio:1:8.5 Working distance:110mm		●	●	●	●
光源	上照明：LED/3W亮度连续可调	Incident illumination:LED 3W,brightness adjustable		●	●	●	●
	下照明：LED/IW亮度连续可调	Transmitted illumination:LED 1W,brightnessadjustable
可供附件 Optional Accessory	1. 目镜：WF10/23mm、WF15/17mm、WF2012.5mm 2.环形灯 3.辅助物镜：0.5X、2X 4.摄影装置及CCD装置 5.130万、200万、300万、500万、800万像素CMOS电子目镜 6.700线彩色CCD		1.Eyeplece:WF10/23mm、WF15/17mm、WF20/12.5mm 2.Ring light 3.Auxiiary Objecive:0.5X,2X 4.Photography attachment and CCDC-mount 5.1.3Mega,2.0Mega,3.0Mega,5.0Mega,8.0Mega CMOS digitalcamera eyepiece 6.Color CCD Caremra,700 TVLines
