XTD-223 series zoom stereo microscope can provides outstanding image clarity,true colors and accurate original samplereduction,the image is shaper ,the detail is clearer.The working distance is 110mm,it hasenough room for use.It us widely used in biology,medicine,scientific research,electronic industry and other science and technology field.
XTD-223系列连续变倍体视显微镜提供杰出的图像清晰度、真实的色彩和准确的原始样品还原，图像更锐利、细节更清晰。
工作距离达到110mm,为使用创造足够的空间。广泛应用于生物、医学、科研、电子工业和其他科技领域。
XTD-223 series zoom stereo microscope can provides outstanding image clarity,true colors and accurate original samplereduction,the image is shaper ,the detail is clearer.The working distance is 110mm,it hasenough room for use.It us widely used in biology,medicine,scientific research,electronic industry and other science and technology field.

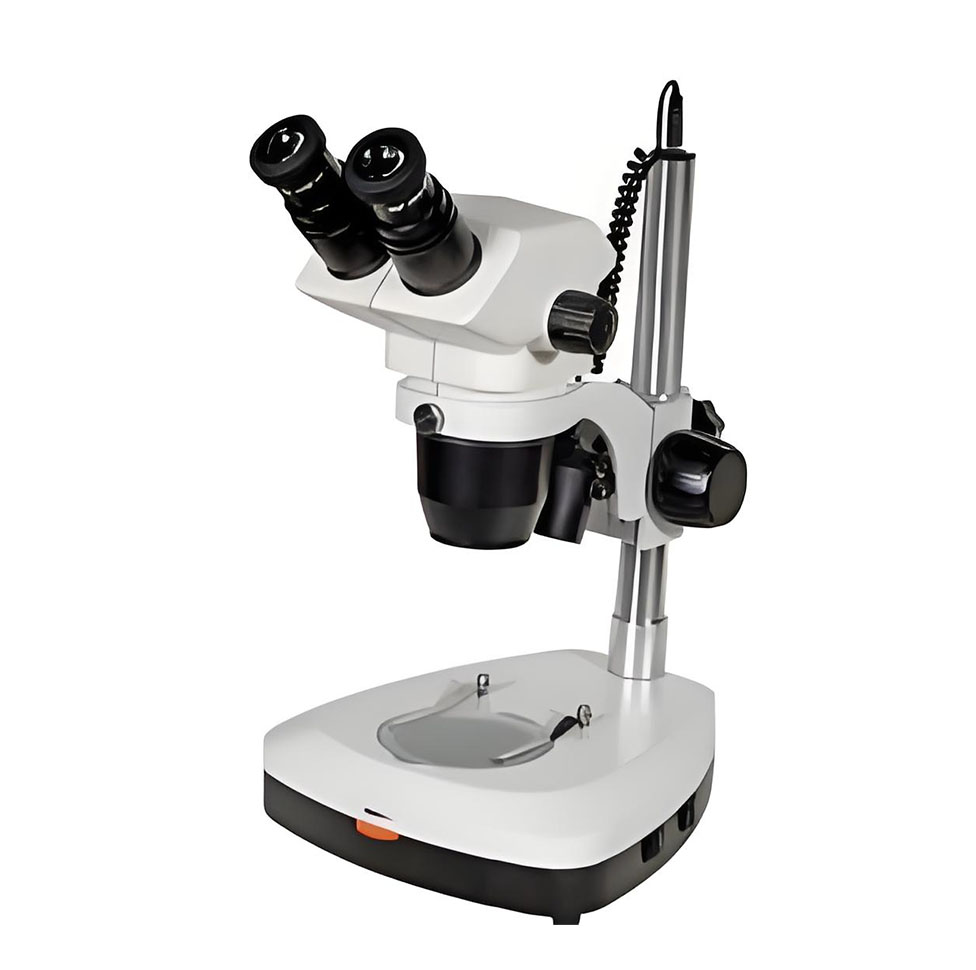

XTD-223 XTD-223T XTD-223A XTD-223AT
技术规格 Specification | 型号 Mode | ||||||
XTD-223 | XTD-223T | XTD-223A | XTD-223AT | ||||
观察头 Viewing head | 双目头(55mm-75mm) | Binocular head(55mm-75mm) | |||||
三目头(55mm-75mm) | Trinocular head(55mm-75mm) | ||||||
目镜 Eyepiece | 大视场平场日镜 WF10X/22mn | Plan WF10X/22mm | |||||
镜 Objective | 0.8X-5.6X连续变倍 变倍比1:7 工作距离110mm | Zoom range:0.8X-5.6X Zoomratio:1:7 Working dstance:110mm | |||||
光源 Light | 上照明：LED/3W亮度连续可调 | ncident illumination:LED 3W,brightness adjustable | |||||
下照明：LED/IW亮度连续可调 | Transmitted illumination:LED 1W,brightness adjustable | ||||||
Optional Accessory | 1. 目镜：WF10X/23mm、WF15X17mm、WF20X/12.5mm 2.环形灯 3.辅助物镜：0.5X、2X 4.摄影装置及CCD装置 5.130万、200万、300万、500万、1000万像素CMOS电子目镜 6.700线彩色CCD | 1.Eyepiece:WF10X23mm、WF15X/17mm,WF20X/12.5mm 2.Ring light 3.Auxiary Objactive:0.5X2X 4.Pholography atlachment and CCD C-mount 5.1.3Mega,2.0Mega,3.0Mega,5.0Mega,10.0MegaCMOS dgital camera eyepleoe 6.Color CCD Camera,700 TVLnes | |||||
