XTD-220 Series zoom stereo microscope

XTD-220 series zoom stereo microscope can provides excellent image clarity,ture colors,the image is more sharper
and the details is more clearer.
High zoom ratios makes all kinds of tasks easily wether advanced research or normal observation.It is widely used in biology,medicine,scientific research,electronic industry and other science technology fields.

XTD-220系列连续变倍体视显微镜提供杰出的图像清晰度、真实的色彩还原，图像更锐利、细节更清晰。

超大的变倍比，可以轻松的完成从高级研究到常规观察的各种任务。广泛应用于生物、医学、科研、电子工业和其他科技领域。

XTD-220 series zoom stereo microscope can provides excellent image clarity,ture colors,the image is more sharper

and the details is more clearer.

High zoom ratios makes all kinds of tasks easily wether advanced research or normal observation.It is widely used in biology,medicine,scientific research,electronic industry and other science technology fields.

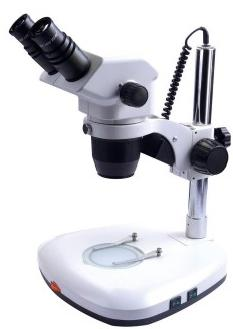

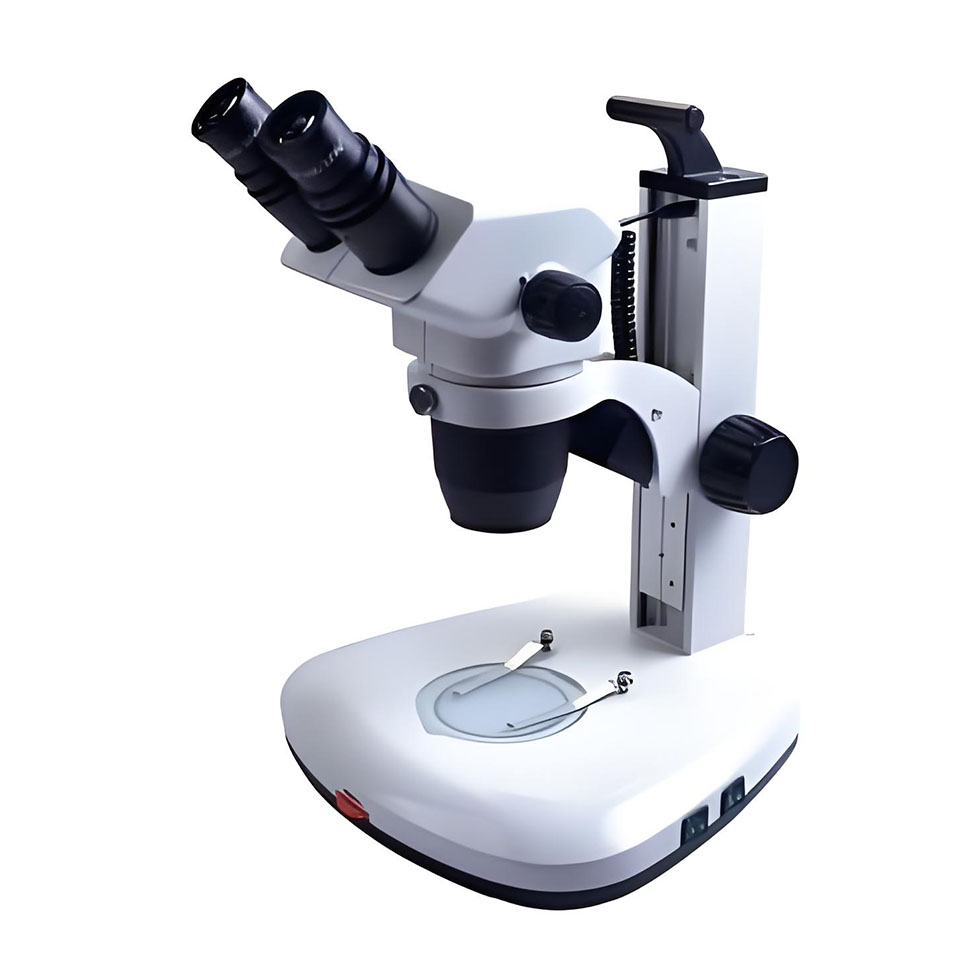

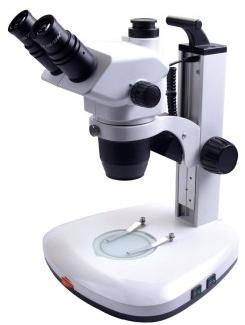

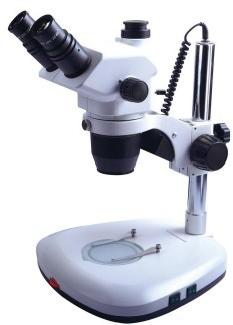

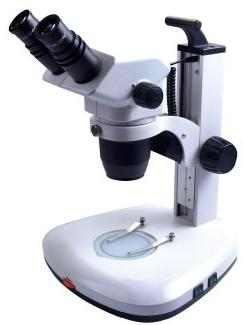

XTD-220 XTD-220T XTD-220A XTD-220AT

技术规格 Specification			型号 M o d e l
技术规格 Specification			XTD-220	XTD-220T	XTD-220A	XTD-220AT
观察头 ViewingHead	双目头(55mm-75mm)	Binocular Head (55mm-75mm
观察头 ViewingHead	三目头(55mm-75mm)带0.5X适配镜	Trinocular Head Inclined at30°(55mm-75mm)with 0.5X C-mount
目镜Eyepiece	大视场平场目镜WF10X/22mm	Fxtra-wide field olan evepiece WE10X/22mm
物镜 Objective	0.6X～6X连续变倍变倍比1:10 工作距离110mm	Zoom range:0.6X-6X Zoom ratio:1:10 odooo distance:110mm
光源LightSource	上照明：LED/3W亮度连续可调下照明：LED/2W亮度连续可调	Upper iluminaton:LED3W,brghtness adjustable Down ilumination:LED 2W,brghtness adjustable
可代 850ry	1. 目镜：WF10X/23mm、 WF15X/17mm、WF20X/12.5mm 2.环形灯 3.辅助物镜：0.5X、2X 4.摄影装置及CCD装置 5.各种像素CMOS和电子目镜 6.2X摄影目镜，各款单反机接口	1.Eyepiece:WF10X/23mm,WF15X/17mm,WF20X/12.5mm 2.Ring ligh 3.Auxiliary objective:0.5X,2X Phoography attachmentand ocd adapter VariousCMOS 6.2X Photography eyepiece,Various SLR camera adapter
