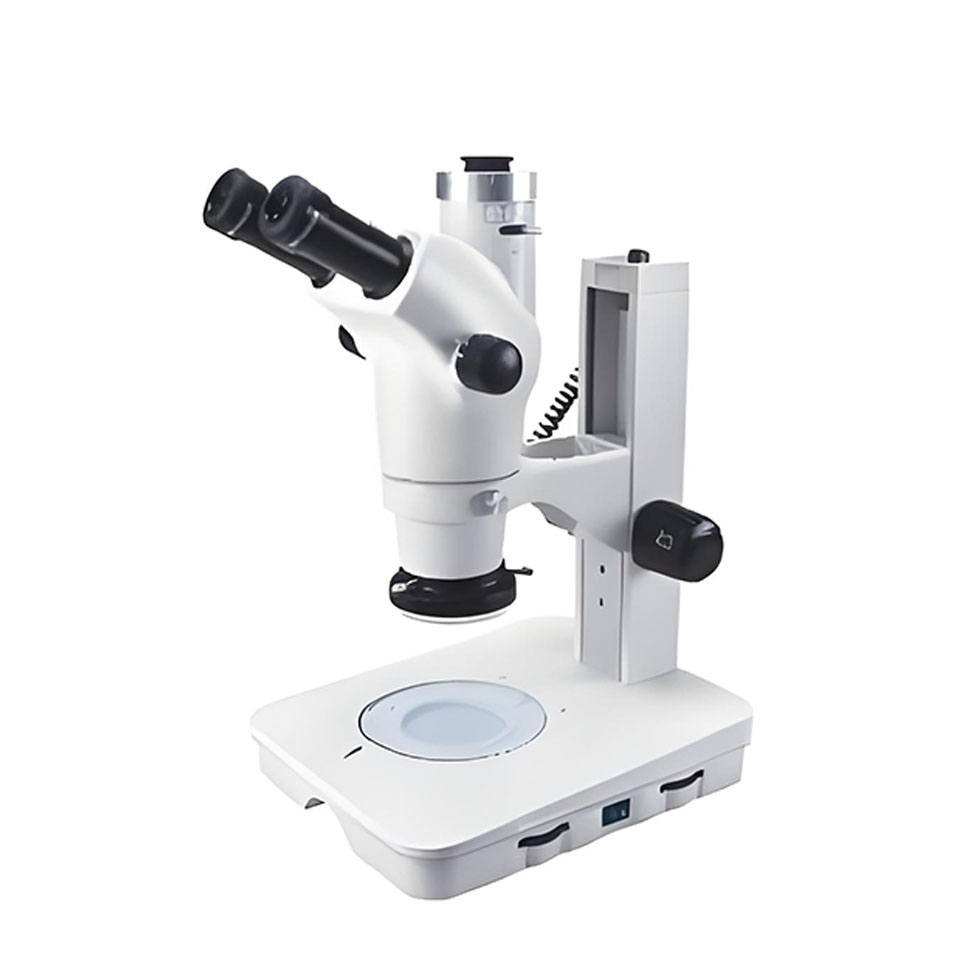

NSZ-608T Zoom Stereo Microscope NSZ-608T Series

Features
·Theleading role ofthe samelevelmicroscopes,widerangeobservation withzoom range0.6X-5X、zoom ratio 1:8.3andvisualfielduptoφ76mm.
·With high quality optical components,providing sharp and strikingcontrast image and no ghost image.·Ease the tiredness with ergonomic design.·With Complete eyepieces,auxiliary objectives and otheraccessories,itisanidealinstrumentforindustry assembling,inspection and teaching field.

性能

·同级别中领先的机型，变倍比1:8.3,变焦范围0.6X-5X,可进行广范围的观察，视野宽广，最大可达φ76mm。

·高性能光学部件，可形成清晰的高对比度图像，三目摄像无重像。符合人机工程学设计，可减轻长时间观察而产生的疲劳。品种齐全的目镜和辅助物镜，丰富的附件可满足各项功能的扩展，特别适合工业组装和检验，以及教学和基础研究。

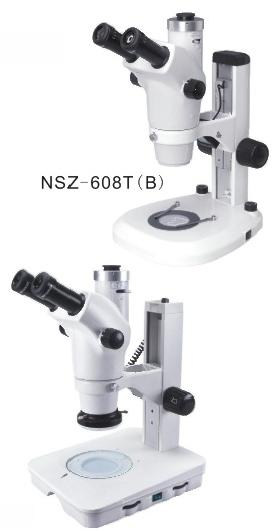

NSZ-608T(B)

Features

·Theleading role ofthe samelevelmicroscopes,widerangeobservation withzoom range0.6X-5X、zoom ratio 1:8.3andvisualfielduptoφ76mm.

·With high quality optical components,providing sharp and strikingcontrast image and no ghost image.·Ease the tiredness with ergonomic design.·With Complete eyepieces,auxiliary objectives and otheraccessories,itisanidealinstrumentforindustry assembling,inspection and teaching field.


技术参数Specification

		NSZ-608T(A	NSZ-608T(B)
观察镜筒ViewingTube	三目体视镜体，倾角30°Trinocular viewing head,Inclined at 30°
视度可调目镜 Diopter Adjustment Eyepiece	大视场平场目镜WF10X/φ23 Extra wide field eyepiece WF10X/φ23	●
	WF15X/φ16
	WF20X/φ12	0
	WF30X/φ8
变倍物镜Zoom Objective	0.6X-5X
变倍比Zoom Ratio	:8.3
工作距离Working Distance	115mm
瞳距Interpupillary Distance	55-75mm
辅助物镜 Auxliary objective	0.5X WD:220mm
	0.7X WD:125mm	0
	2X WD:45mm		o
载物台插入圆板 Stage Insert	直径125mm透明玻璃盘Glass plate,Diameter 125mm
	直径100mm透明玻璃盘Glass plate,Diameter 100mm
	直径125mm黑白板Opal &black acrylic plate,Diameter 125mm	●
	直径100mm黑白板Opal &black acrylic plate,Diameter 100mm
调焦行程Focusing Range	05oo⁰0
光源 llumination	反射光照明100V-240VLED Incident Wumination 100V-240VLED
光源 llumination	透射光照明100V-240V/LED Transmitte lumination 100V-240VLED
摄像镜筒 Video Adapter	0.55XC接口0.55XC Mount
摄像镜筒 Video Adapter	1XC接口1XC Mount	o	0
