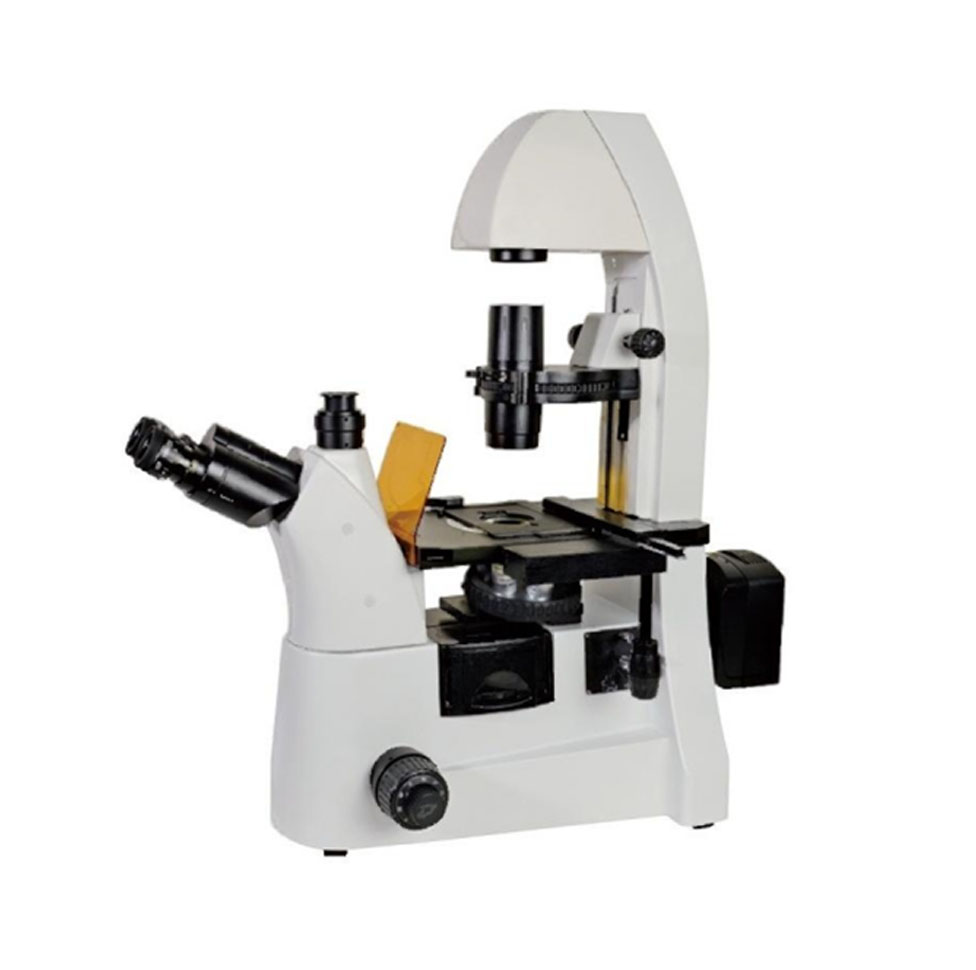

XYL-412Y Inverted Five WaveBands Fluorecent Microscope

XYL-412Y 倒置五波段荧光显微镜是由倒置生物显微镜和落射荧光装置组成。倒置生物显微镜具有在培养瓶或培养皿内进行显微观察的特点，落射荧光装置适用于荧光显微术。
仪器配有无限远平场复消色差大数值孔径长工作距离物镜，同时配有相衬装置和相衬物镜，可以观察不经染色的透明活体。落射荧光采用触摸屏控制的 LED 激发，荧光图像清晰。长工作距离聚光镜能容纳更高的培养皿和样品。
仪器适用于对活体细胞和组织、流质、沉淀物等进行显微研究，是生物学、细胞学、肿瘤学、遗传学、免疫学等研究工作的理想仪器。可供科研、高校、医疗、防疫和农牧林等部门使用。
XYL-412Y inverted five wave bands fluorescent microscope is composed of inverted microscope and Epi-fluorescent microscope.The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish.Epi-fluorescent device applies to the fluorescent microscopy.
It is equipped with Infinite long working distance big numeral aperture Plan Apochromatic objective,phase contrast kit and phase contrast objectives.The transparent alive objects can be observed without dyeing.Epi-fluorescent microscope adopts LED excitation which controlled by
touch screen to make fluorescent image clear.Long working distance condenser can contain higher culture dish and specimen.
This equipment is specially suitable for micro research of living cell and organization,fluidness and sediment.It is an ideal equipment for researching department like biology,cytology,oncology,genetics and immunology.It can also be used in scientific research,college&university,medical treatment,epidemic prevention and farming,stock raising &forestry department,etc.

技术规格 Specification
光学系统 Optical system	无限远光学系统	Infinite optical system
观察头Viewing Head	45°铰链式三目，可调瞳距50mm-75mm	Compensation Free Trinocular Head Inclined at 45° (50mm-75mm)
目镜Eyepiece	宽视场平场目镜WF10X22mm	Plan WF10X/22mm
物镜Objective	平场无限远复消色差大数值孔径长工作距离物镜 4X/0.15(LW.D.21.6mm),盖玻片厚度1.5mm 10X0.3(LW.D.3mm,相衬),盖玻片厚度1.5mm 20X10.5(LW.D.4.27mm,相衬),盖玻片厚度1.5mm 40X/0.60(LW.D.2.23mm),盖玻片厚度1.5mm	Infinite LW.D.big numeral aperture plan apochromatic objective. 4X/0.15(LW.D.21.6mm)cover-glass thickness 1.5mm 10X10.3(L.W.D.3mm)cover-glass thickness 1.5mm 20X¹0.5(LW.D.4.27mm)cover-glass thickness 1.5mm 40X/0.60(L.W.D.2.23mm)cover-glass thickness 1.5mm
转换器Nosepiece	六孔转换器	Sextuple Nosepiece
平台Stage	机械移动式载物台平台尺寸：242×172mm 移动范围：75mm×40mm 低位XY调节手轮	Double layer mechanical stage Stage Size:242X172mm Moving Range:75mmX40mm Low located XY adjusting hand wheel
调焦Focusing	粗微动同轴调焦，微动格值1um	Coaxial coarse &fine focusing adjustment, fine focusing scale value 0.001mm
光源Light Source	透射照明卤素灯12V/30W,AC85V-230V,亮度连续可调落射荧光照明触摸屏控制的五波段LED光源，LED功率8W, AC85V-230V,亮度连续可调	Transmission illumination Halogen Bulb 12V/30W,AC85V-230V, brightness adjustable Epi-Fluorescent Illumination Five wave bands LED source controlled bytouch screen,LED 8W, AC85V-230V,brightness adjustable
荧光镜盒 Fluorescence attachment	G、B、BV、V、UV	G、B、BV、V、UV
聚光镜Condenser	阿贝聚光镜，工作距离28mm	Abbe condenser,working distance 28mm
相衬装置 Phase contrast device	相衬转盘(28mm),对中望远镜	Contrast table(28mm),Centering telescope
滤色片Filter	蓝、绿、黄、磨砂玻璃	Blue,green,yellow and frosted glass
可供附件 Optional Accessory	目镜：WF10X/20mm,带0.1mm十字分划板 WF15X17mm、WF20X/12.5mm 阿贝聚光镜，工作距离70mm,相衬转盘(70mm) 摄影装置及CCD接口：0.5X、0.57X、0.75X 平场无限远复消色差大数值孔径长工作距离物镜 4X0.15(LW.D.21.6mm,相衬),盖玻片厚度1.5mm 40X0.60(LW.D.2.23mm,相衬),盖玻片厚度1.5m 130万、200万、300万、500万、1000万像素电子目镜图像分析软件	Eyepiece:WF10X/20mm,crosshair 、 reticule 0.1mm WF15X/17mm、WF20X12.5mm Abbe condenser,working distance 70mm, Phase Contrast turret (70mm) Photography attachment and CCD C-mount: 0.5X,0.57X,0.75X Infinite L.W.D.big numerial aperture plan apochromatic objective, 4X10.15(L.W.D.21.6mm,phase contrast),cover glass thickness 1.5mm 40X10.60(L.W.D.2.23mm,phase contrast), cover glass thickness 1.5m 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels digital camera eyepiece Image analysis software
