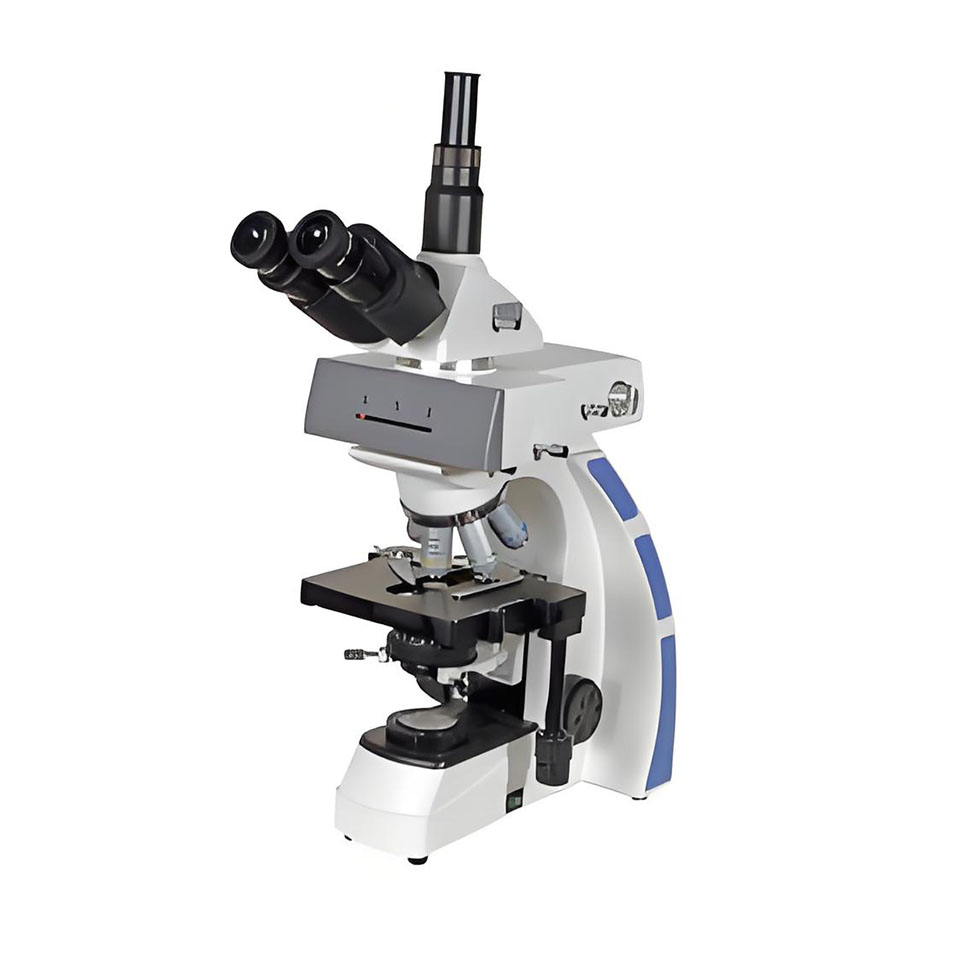

XYL-166Y Series LED Fluorecent Microscope

XYL-166Y1

 XYL-166Y2

光学系统
Optical system

无限远光学系统

  Infinite optical system

●

●

观察头Viewing Head

30°铰链式三目，可调瞳
距48mm - 75mm

  Compensation Free Trinocular Head Inclined at 30°
  interpupillary distance adjustable 48mm-75mm

●

●

目镜Eyepiece

宽视场平场目镜WF10X/22mm

  Wide field Plan WF10X/22mm

●

●

物镜
  Objective

平场无限远物镜
4X10.10、10X10.25、40X10.65、100X/1.25(Oil)

  Infinite Plan objective
  4X/0.10、10X10.25、40X10.65、100X/1.25(Oil)

●

●

转换器Nosepiece

四孔转换器

  Quadruple nosepiece

●

●

  平台Stage

双层移动平台
平台尺寸：180×160mm
移动范围：80mm×50mm

  Double layer mechanical stage
  Stage Size:180×160mm
  Moving Range:80mm×50mm

●

●

调焦Focusing

粗微动同轴调焦，微动格值2um

  Coaxial coarse &fine focusing adjustment
  fine focusing scale value 0.002mm

●

●

光源
Light     Source

荧光落射照明
LED灯3V/5W,AC85V- 230V,亮度连续可调

  Epi-fluorescent illumination
  LED 3V/5W,AC85V-230V,brightness adjustable

●

●

透射照明
Kohler照明，带孔径光阑和视场光栏
卤素灯12V/30W,AC85V- 230V,
亮度连续可调

  Transmission illumination
  Kohler illumination with aperture iris diaphragm and field iris diaphragm
  Halogen Bulb 12V/30W,AC85V-230V,
  brightness adjustable

●

●

荧光镜盒
 Fluorescent
  Attachment

B波段

  B Wave band

●

B 、 G 波 段

  B、G Wave band

●

可供附件
  Optional
  Accessory

目镜：WF15X17mm、WF20X/12.5mm      Eyepiece:WF15X17mm、WF20X12.5mm
物镜：平场无限远大数值孔径荧光物镜   Objective:Infinite Plan large N.A fluorescent objectives
4X/0.15、10X10.35、20X0.60、40X0.75、100X10.90(干)

4X0.15、10X10.35、20X10.60、40X10.75、100X10.90(Dry)
摄影装置及CCD接口：0.5X、0.57X、0.75X

Photography attachment and CCD C-mount:0.5X,0.57X,0.75X
130万、200万、300万、500万、1000万像素电子目镜

1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels CMOS Digital camera eyepiece
彩色1/3寸CCD700条线                   CCD Camera,colour 1/3”High resolution 700 TV lines
图像分析软件                              Image analysis software
荧光数字CCD                             Fluorescent digital CCD

G、V、UV波段                            G、V、UV Wave band
