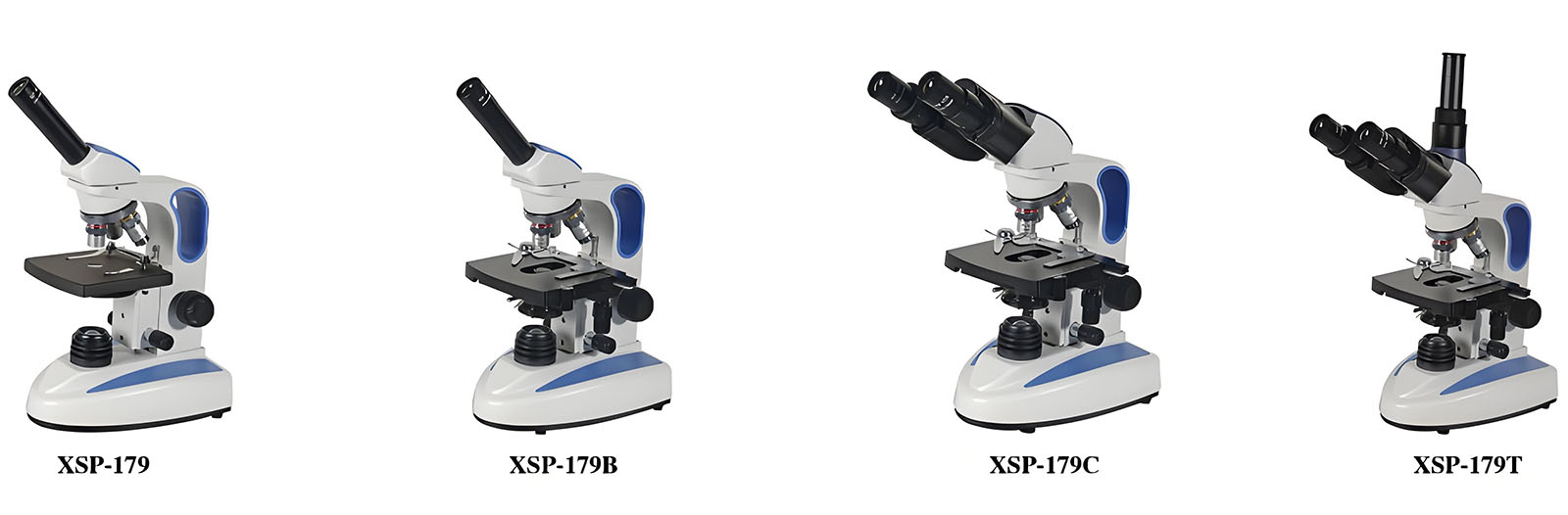

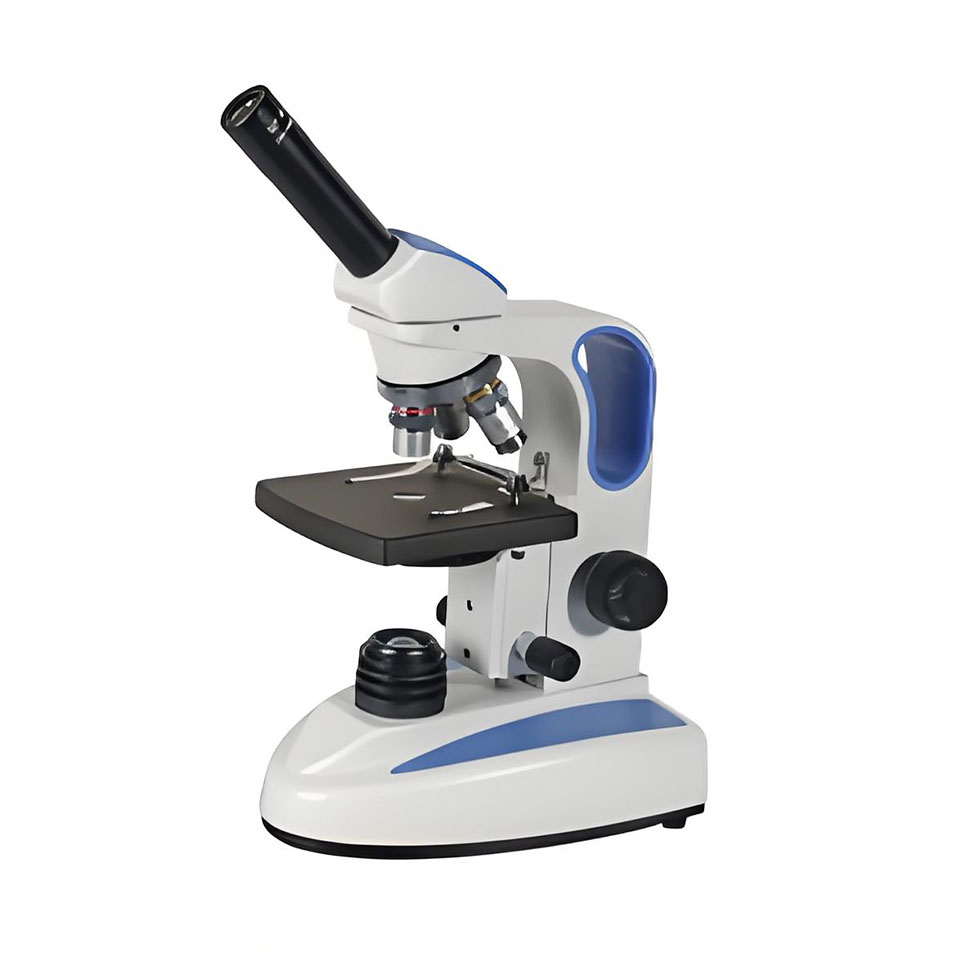

XSP-179 Series Biological Microscope

XSP-179

XSP-179A

XSP-179B

XSP-179C

XSP-179T

观察头

Viewing head

单目头45°倾斜，360°旋转

Monocular head,inclined at 45°, 360°rotatable

●

●

●

30°铰链式双目观察头(48mm～75mm)

Compensation free binocular head,inclinedat30°,(48mm～75mm)

●

30°铰链式三目观察头(48mm～75mm)

Compensation free trinocular head,inclined at 30°,(48mm～75mm)

●

目镜

Eyepiece

WF10X/18mm

WF10X/18mm

●

●

●

●

●

物镜

Objective

消色差4X,10X,40X(S)

Achromatic objective:4X,10X,40X(S)

●

●

消色差4X,10X,40X(S),100X(S)Oil

Achromatic objective:4X,10X,40X(S),100X(S)Oil

●

●

●

平台

Stage

简易平台带切片压片

平台尺寸：120mmX125mm

Plain stage with slide clips Stage Size:120mmX125mm

●

●

双层移动平台

平台尺寸：135mmX135mm

移动范围：70mmX50mm

Double layer mechanical stage

Stage Size:135mmX135mm

Moving Range:70mmX50mm

●

●

●

聚光镜

Condenser

0.65聚光镜带拨盘光栏

0.65 condenser with disc diaphragm

●

0.65聚光镜带可变光栏

0.65 condenser with iris diaphragm

●

N.A.1.25阿贝聚光镜带可变光栏和滤色片架

N.A.1.25 Abbe condenser with iris diaphragm and filter holder

●

●

●

调焦

Focusing

分开式粗、微调焦机构

Separated coarse &fine focusing adjustment

●

●

●

●

●

光源

Light Source

LED,亮度可调

LED,brightness adjustable

●

●

●

●

●

可供附件

Optional

Accessory

目镜：WF16X、WF20X、P16X

消色差物镜：20X(S)、60X(S) 反光镜、示教头

Eyepiece:WF16X、WF20X、P16X

Achromatic objective:20X(S)、60X(S) Reflector,Dual viewing head
