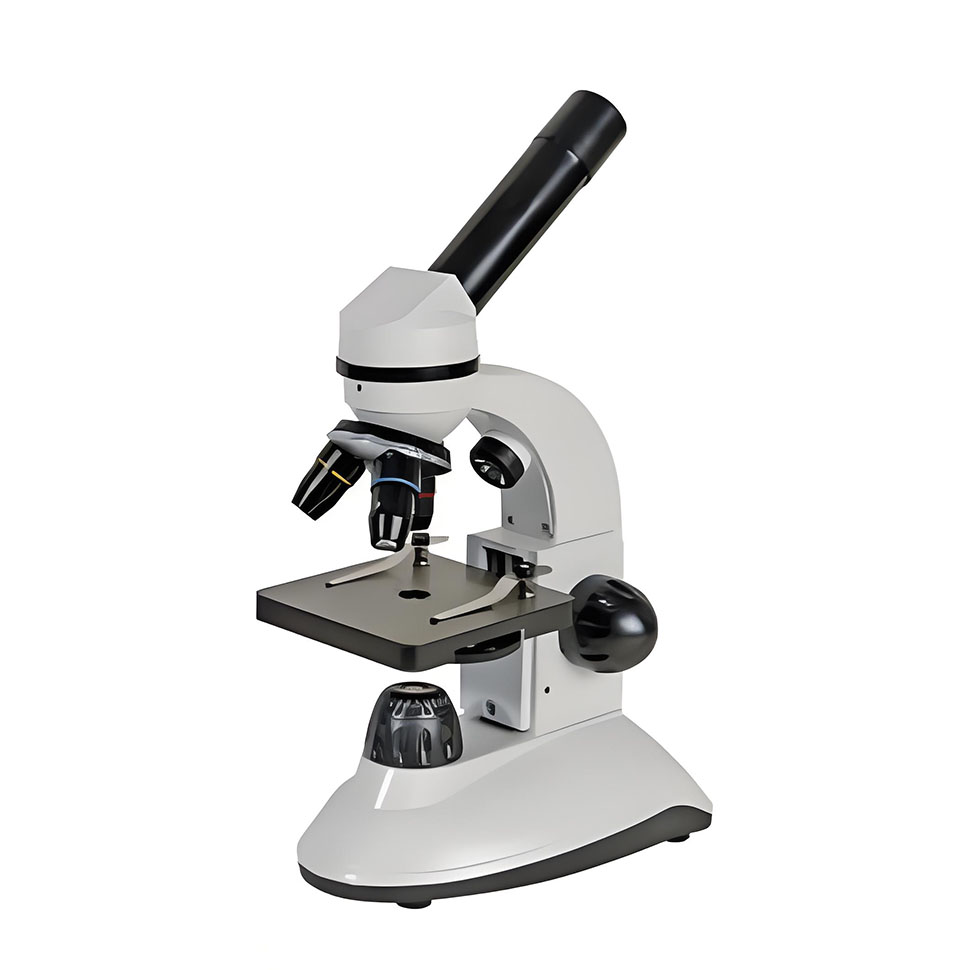

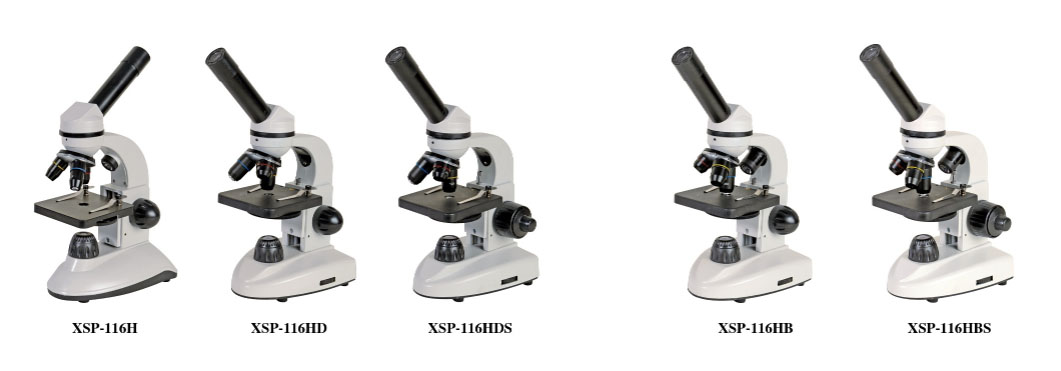

XSP-116H Series Biological Microscope

XSF    16H

XSP-116HD

XSP-116HDS

XSP-116HB

XSP-116HBS

观察头

Viewing Head

单目38°倾斜

Monocular Inclined at 38°

●

单目头45°倾斜，360°旋转

Monocular Inclined at 45°,360°Rotatable

●

●

●

●

目镜Eyepiece

WF10X

WF10X

●

●

●

●

●

物镜Objective

消色差4X、10X、40X(s)

Achromatic 4X、10X、40X(s)

●

●

●

●

●

平台Stage

简易平台带切片压片 平台尺寸：90mmX90mm

Plain stage with slide clips Stage size:90mmX90mm

●

简易平台带切片压片 平台尺寸：95mmX95mm

Plain stage with slide clips Stage size:95mmX95mm

●

●

●

●

聚光镜Condenser

0.65聚光镜带拨盘光栏

0.65 Condenser with disc diaphragm

●

●

●

●

●

调焦Focusing

粗动调焦机构

Coarse Focusing Adjustment

●

●

●

●

粗、微动同轴调焦机构

Coaxial coarse &fine focusing adiustment

●

●

光源

Light Source

LED下灯源，110V/220V

Transmitted Light LED,110V/220V

●

●

LED上下灯源，110V/220V

Incident and transmitted light LED,110V/220V

●

●

●

可供附件

Optional Accessory

目镜：WF16X、WF20X

物镜：20X、60X(S)

Eyepiece:WF16X、WF20X Objective:20X、60X(S)
