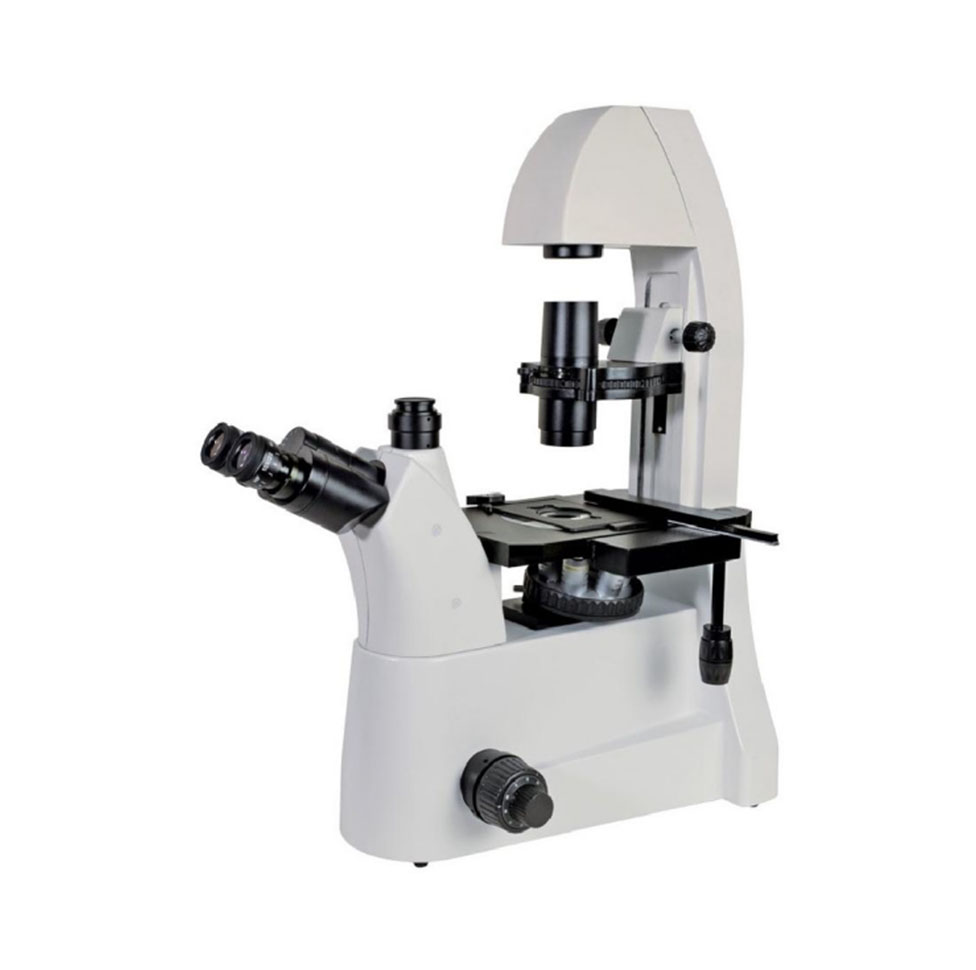

XDS-412 Inverted Biological Microscope

光学系统

Optical system

无限远光学系统

Infinite optical system

观察头Viewing Head

45°铰链式三目，可调瞳距50mm-75mm

Compensation Free Trinocular Head Inclined at 45°(50mm-75mm)

目镜Eyepiece

宽视场平场目镜WF10X/22mm

Plan    WF10X/22mn

物镜Objective

平场无限远复消色差大数值孔径长工作距离物镜 4X0.15(W.D.21.6mm),盖玻片厚度1.5mm

10X/0.3(W.D.3mm,相衬),盖玻片厚度1.5mm

20X/0.5(W.D.4.27mm,相衬),盖玻片厚度1.5mm

40X10.60(W.D.2.23mm),盖玻片厚度1.5mm

Infinity L.W.D.big numeral aperture plan apochromatic objective, 4X0.15(W.D.21.6mm)cover-glass thickness 1.5mm

10X10.3 phase contrast(W.D.3mm)cover-glass thickness 1.5mm

20X/0.5phase contrast W.D.4.27mm cover-glass thickness 1.5mm 40X/0.60(W.D.2.23mm)cover-glass thickness 1.5mm

转换器Nosepiece

六孔转换器

Sextuple Nosepiece

平台Stage

机械移动式载物台

平台尺寸：305×180mm

移动范围：75mm×40mm 低位XY调节手轮

Double layer mechanical stage

Stage Size:242X172mm

Moving  Range:75mmX40mm Low XY

adjusting hand wheel

调焦Focusing

粗微动同轴调焦，微动格值0.001mm

Coaxial coarse &fine focusing adjustment,fine focusing scale value 0.001mm

光源Light Source

3WLED,亮度连续可调

3WLED,brightness adjustable

聚光镜Condenser

阿贝聚光镜，工作距离28mm

Abbe condenser,working distance 28mm

相衬装置

Phase contrast device

相衬转盘(28mm),对中望远镜

Contrast table(28mm),Centering telescope

滤色片Filter

蓝、绿、黄、磨砂玻璃

Blue,green,yellow and frosted glass

可供附件 Optional

目镜：WF10X20mm,带0.1mm十字分划板

WF15X/17mm、WF20X/12.5mm

平场无限远复消色差大数值孔径相衬物镜：

4X0.15(W.D.21.6mm)、40X0.60(W.D.2.23mm) 阿贝聚光镜，工作距离70mm,相衬转盘(70mm)

摄影装置及CCD接口：0.5X、0.57X、0.75X

130万、200万、300万、500万、1000万像素

电子目镜 彩色1/3寸CCD700条线CCD摄像机

图像分析软件

Eyepiece:WF10X/20mm,crosshair with reticule 0.1mm, WF15X/17mm、WF20X/12.5mm

Infinity LW.D.big numerial aperture plan apochromatic phase contrast objective:

4X10.15(W.D.21.6mm)、40X0.60(W.D.2.23mm)

Abbe condenser, working distance 70mm, Phase Contrast Turret (70mm)

Photography attachment and CCD mount: 0.5X,0.57X,0.75X 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels

CMOS

Digital camera eyepiece

CCD Camera colour 1/3”High resolution 700 TV lines

Image analysis software
