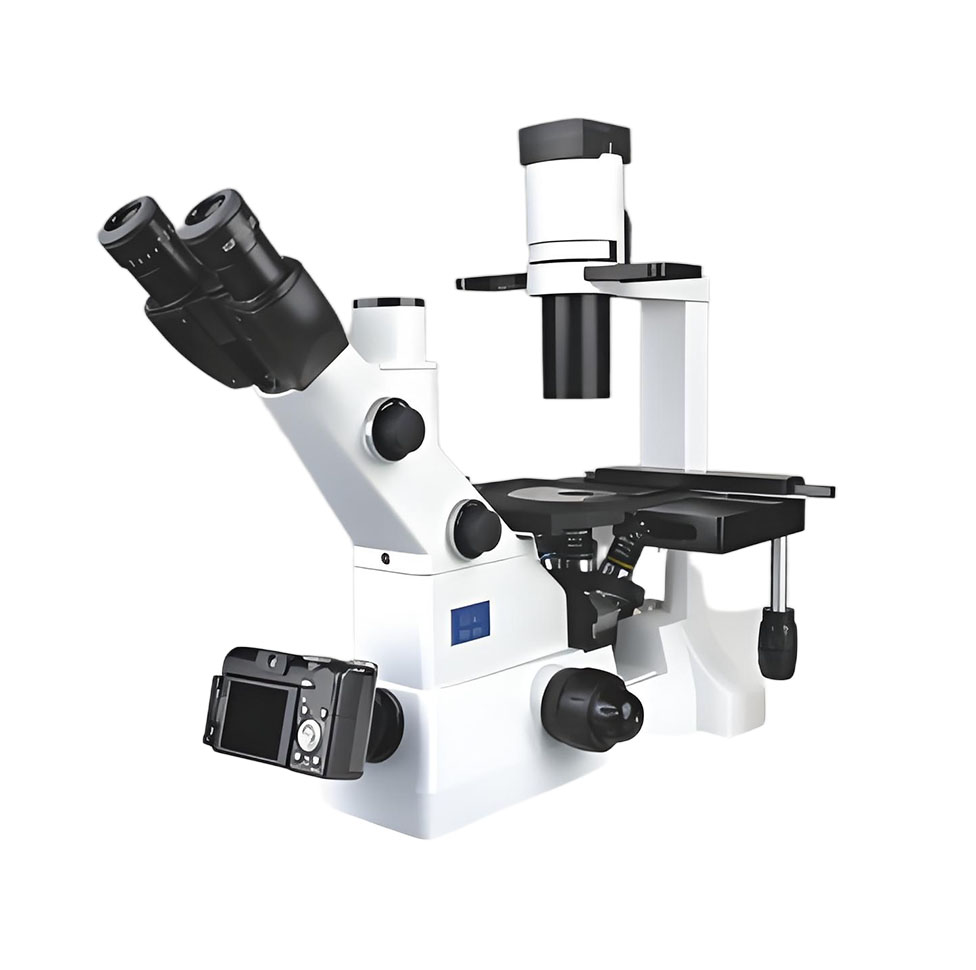

XD-202 Inverted Biological Microscope

光学系统
Optical System

无限远光学系统
Infinite Optical System

●

观察头
Viewing Head

铰链式双目头，45°倾斜，瞳距48-75mm
Seidentopf Binocular Viewing Head, Inclined at 45°,360°Rotatable, Interpupillary 48-75mm

●

目 镜
Eyepiece

大视野目镜WF10X/20,镜筒φ30 Wide Field Eyepiece WF10X120,Eyepiece Tube Diameter 30mm

●

大视野目镜WF15X/16 Wide Field Eyepiece WF15X/16

O

大视野目镜WF20X/12 Wide Field Eyepiece WF20X/12

O

物镜
Objective

无限远平场长工作距离物镜4X LWD Infinite Plan Achromatic Objective 4X/0.10 WD=22

●

无限远平场长工作距离相衬物镜
LWD Infinite Plan Achromatic Phase Objective

10X/0.25   WD=6

●

20X/0.4  WD=3.1

●

40X/0.55 WD=2.2

●

掩膜相衬物镜
High-level Phase Contrast Objective

10X/0.25 WD=6

O

20X/0.4  WD=3.1

O

40X/0.55 WD=2.2

O

转换器
Nosepiece

内向式五孔转换器Backward Quintuple Nosepiece

●

聚光镜
Condenser

超长工作距离聚光镜NA0.3,LWD72mm;卸下聚光镜后培养皿高度可达150mm
ELWD Condenser NA0.3,LWD72mm(without Condenser 150mm)

●

对中望远镜
Centering Telescope

对中望远镜(镜筒φ30mm)
Centering Telescope(φ30mm)

●

相衬滑板
Phase Annulus

10X、20X、40X可调心型相衬滑板
10X、20X、40X Phase Annulus Plate(Adjustable)

●

载物台
Stage

平面载物台230X170;Plain Stage 230X170

●

载物台插入圆板；Glass Insert

●

机械移动尺，右手低位同轴X、Y旋钮，移动范围80X120mm
Attachable Mechanical Stage,X、Y Coaxial Control,Moving Rang 80X120mm

●

接长托板Auxiliary Stage

●

Terasaki托架；Terasaki Holder

●

φ38培养皿托架Petri Dish Holderφ38

φ54培养皿托架Petri Dish Holderφ54

●

调焦系统
Focusing System

同轴粗微调焦机构，微调格值0.002mm,调节范围向上4.5mm,向下4.5mm
Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Moving Range up 4.5mm down 4.5mm

●

照明系统
Illumination

6V/30W卤素灯，亮度连续可调
6V30W Halogen Lamp,Brightness Adjustable

●

滤色镜Filter

蓝色、绿色、磨砂玻璃片，直径45mm Blue、Green and Ground Glass,Diameter 45mm

●

附件
Accessories

摄影附件Photo Attachment

O

C型摄像接口C Mount 0.4X

O

落射荧光装置Epi-Fluorescent Attachment

O

调制相衬Modulation Contrast

O
