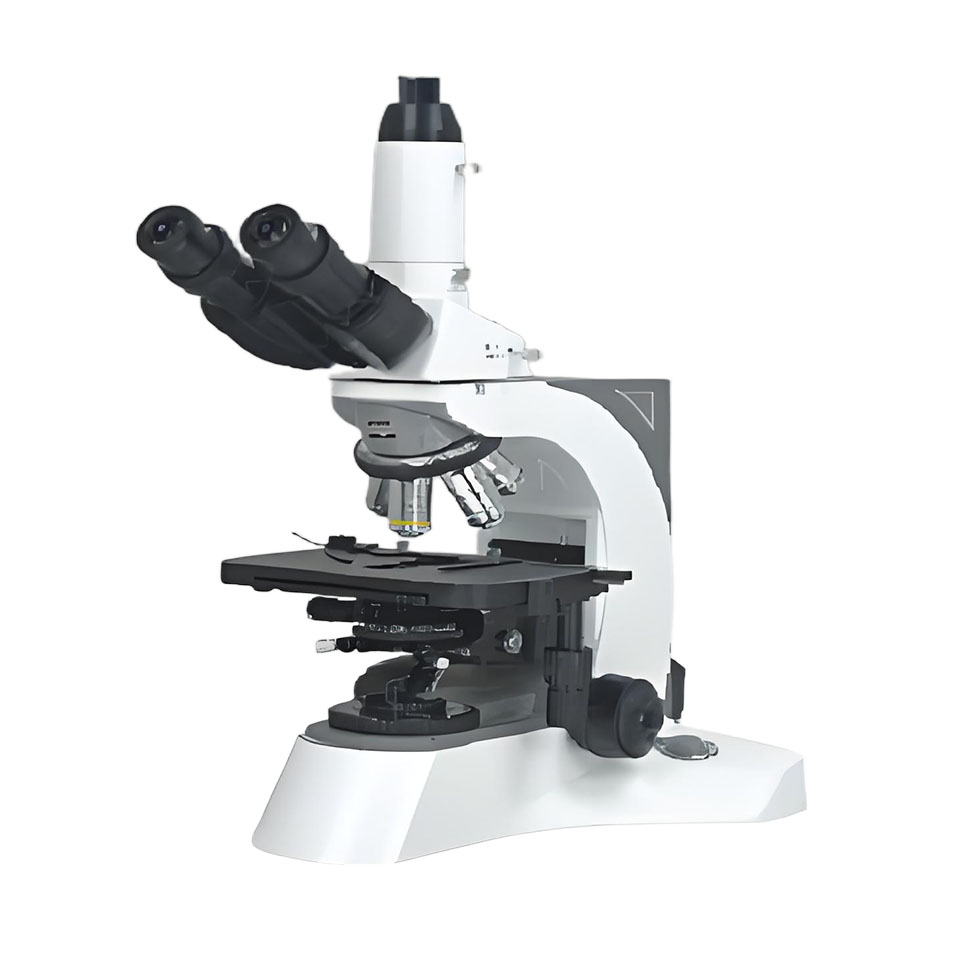

| | N-800M |
光学系统 Optical System | 无 限 远 光 学 系 统 Infinite Optical System | ● |
观察头
Viewing Head | 铰链式三目头，30°倾斜，瞳距48-75mm
Seidentopf Trinocular Head Inclined at 30°,Interpupillary 48-75mm | ● |
可变角度双目头、三目头 Tiltable Binocular/Trinocular Head | O |
目 镜
Eyepiece | 超大视野目镜EW10X122,镜筒φ30 Extra Wide Field Eyepiece EW10X122,Eyepiece Tube Diameter 30mm | ● |
转换器
Nosepiece | 内向式五孔转换器Backward Quintuple Nosepiece | ● |
内向式六孔转换器Backward Sextuple Nosepiece | O |
物镜
Objective | 无限远平场消色差物镜4X、10X、40X、100X Infinite Plan Achromatic Objective 4X,10X,40X,100X | ● |
无限远平场消色差物镜20X、60X Infinite Plan Achromatic Objective 20X,60X | O |
聚光镜
Condenser | 摆出式聚光镜NA0.9/0.25 Swing Condenser N.A0.9/0.25 | ● |
调焦系统
Focusing System | 同轴粗微调焦机构，微调格值0.001mm,粗动行程每圈37.7mm,微动行程每圈0.1mm,调焦范围24mm
Coaxial Coarse and Fine Adjustment,Fine Division 0.001mm,Coarse Stroke 37.7mm per Rotation,Fine
Stroke 0.1mm per Rotation,Moving Range 24mm | ● |
载物台Stage | 双层活动平台，尺寸185X142mm,移动范围75X55mm Double Layers Mechanical Stage 185X142mm/75X55mm | ● |
柯勒照明
Kohler Illumination | 外挂式下照明系统，非球面集光器，6V/30W卤素灯 External Illumination, Aspherical Collector Halogen Lamp 6V/30W | ● |
外挂式下照明系统，非球面集光器，24V/100W卤素灯 External Illumination, Aspherical Collector Halogen Lamp 24V/100W | O |
3W LED灯 3W LED Illumination | O |
5W LED灯 5W LED Illumination | O |
温控系统 Temperature control System | 5W LED 照明电源，温度范围：室温-50°C 5W LED Illumination, Temperature controlling range:Room temperature to 50℃ | O |
附件
Accessories | 摄影附件 Photo Attachment | O |
摄像接口
Video Adapter | C型摄像接口 C Mount 1X | O |
C型摄像接口 C Mount 0.5X | O |
偏光装置 Polarization Attachment | O |
转盘式相衬装置 Turret Phase Contrast Kit | O |
暗场装置
Dark Field Attachment | 干式暗场聚光镜 Dark-field Condenser (Dry) | O |
油式暗场聚光镜 Dark-field Condenser(Oil) | O |
FL -800落射荧光装置 Epi-Fluorescent Attachment FL -800 | O |
FL-LED落射荧光装置 Epi-Fluorescent Attachment FL-LED | O |
