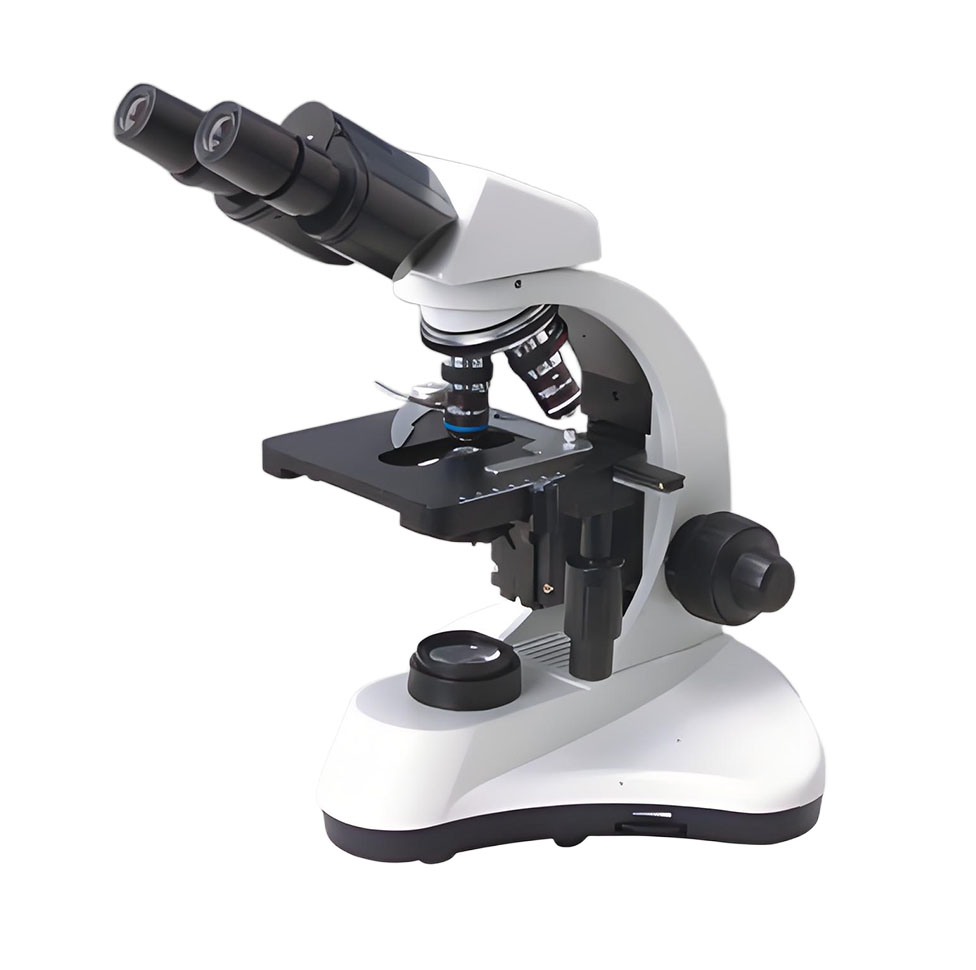

N-200M Biological Microscope

Biological Microscope N-200M

		N-200M
观察头 Viewing Head	铰链式双目头，30°倾斜，瞳距55-75mm Seidentopf binocular viewing head,Inclined at 30°,Interpupillary 55-75mm	●
	铰链式三目头，30°倾斜，瞳距55-75mm Seidentopf trinocular viewing head,Inclined at 30°,Interpupillary 55-75mm	O
	单目头，30°倾斜Monocular Head,Inclined at 30°	O
目镜 Eyepiece	大视场目镜WF10X/18 Wide Field Eyepiece WF10X/18	●
目镜 Eyepiece	大视场目镜P16X/11 Wide Field Eyepiece P16X/11	●
物镜 Objective	半平场消色差物镜4X、10X、40X、100X Semi-plan Achromatic Objective 4X,10X,40X,100X	●
物镜 Objective	平场消色差物镜4X、10X、20X、40X、60X、100X Plan Achromatic Objective 4X,10X,20X,40X,60X,100X	O
转换器 Nosepiece	内倾式四孔转换器Backward Quadruple Nosepiece	●
转换器 Nosepiece	内倾式五孔转换器Backward Quintuple Nosepiece	O
载物台 Stage	双层活动平台,尺寸140X140mm,移动范围75X50mm Double Layers Mechanical Stage 140X140mm/75X50mm	●
聚光镜Condenser	阿贝聚光镜NA 1.25,带可变光栏和滤色片NA 1.25 Abbe Condenser with Iris Diaphragm and Filter	●
调焦系统 Focusing System	同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围26mm Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Coarse Stroke 37.7mm per Rotation,Fine Stroke 0.2mm per Rotation,Moving Range 26mm	●
照明系统 Illumination	S-LED照明，亮度连续可调S-LED IIlumination,Brightness Adjustable	●
	6V/20W卤素灯Halogen Lamp 6V/20W,Brightness Adjustable	O
	柯勒照明装置Kohler Illumination	O
滤色片 Filter	蓝色滤色片Blue Filter	O
滤色片 Filter	绿色滤色片Green Filter	●
偏光装置 Polarization Set	简易偏光装置Simple Polarization Set	O
相衬装置 Phase Contrast Kit	简易相衬装置Simple Phase Contrast Kit	O
	推拉式相衬装置Sliding Phase Contrast Kit	O
	转盘式相衬装置Turret Phase Contrast Kit	O
暗场装置 Dark Field Attachment	干式暗场聚光镜NA0.7-0.9 Dark Field Condenser (Dry)NA 0.7-0.9	O
暗场装置 Dark Field Attachment	油式暗场聚光镜NA1.25-1.36 Dark Field Condenser(Oil)NA 1.25-1.36	O
荧光装置	YX-2落射荧光装置YX-2 Epi-fluorescent Attachment	O
指针系统Pointer	LED光学指针系统Green LED Pointer System	O
选购Optional	摄影装置，摄像装置Photo attachment,Video Attachment	O

注：●为标准配置，○为选购配件 Note: ● Standard Outfit, ○ Optional
