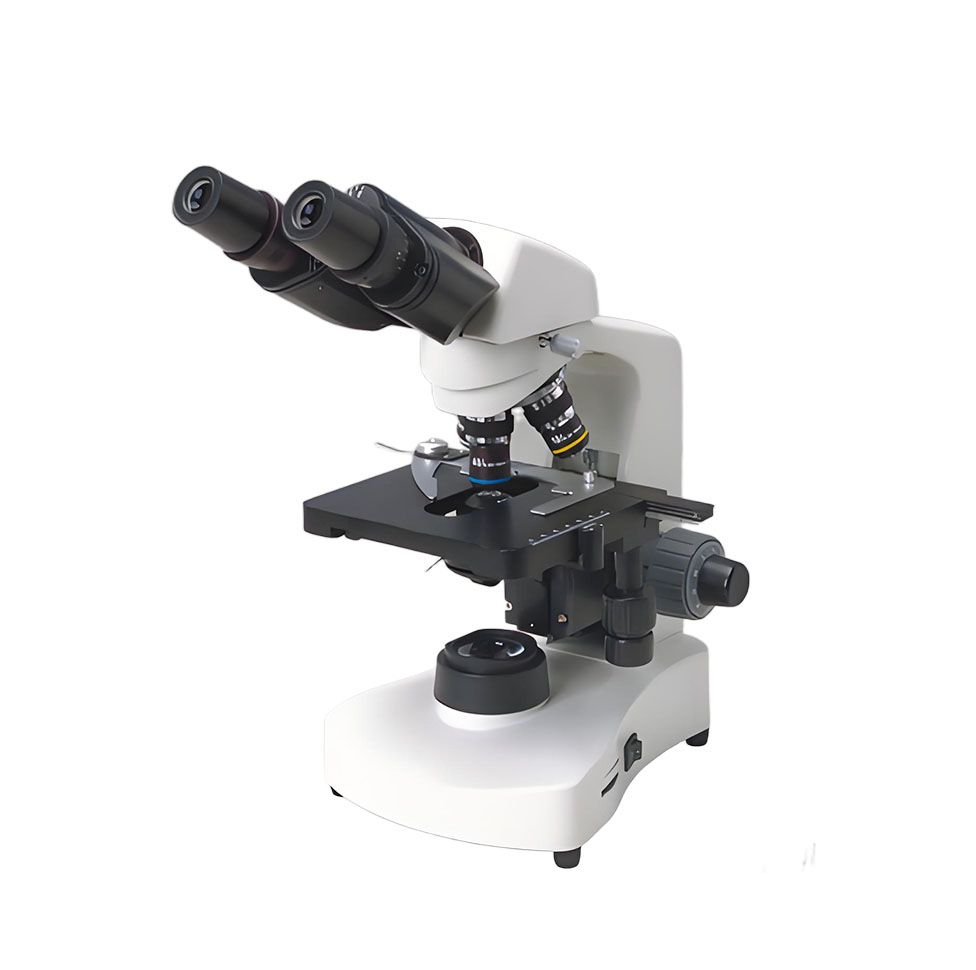

N-117M Biological Microscope

Biological Microscope N-117M

		N-117M
观察头 Viewing Head	铰链式双目头，30°倾斜，瞳距48-75mm Seidentopf Binocular Head,Inclined at 30°, Interpupilary Distance 48-75mm	●
观察头 Viewing Head	铰链式三目头，30°倾斜，瞳距55-75mm Seidentopf Trinocular Head,Inclined at 30°, Interpupilary Distance 55-75mm	O
目镜 Eyepiece	WF10X/18	●
目镜 Eyepiece	P16X/11	O
物镜Objective	消色差物镜4X、10X、40X、100X Achromatic Objective 4X、10X、40X、100X	●
转换器Nosepiece	内向式四孔转换器Backward Quadruple Nosepiece	●
载物台 Stage	双层活动平台面积132X142mm,移动范围75X40mm Double Layer Mechanical Stage 132X142mm/75X40mm	●
调焦系统 Focusing	同轴粗微调焦机构，微调格值0.004mm,粗动行程每圈32.7mm,微动行程每圈0.4mm,调焦范围24mm Coaxial Coarse and Fine Adjustment,Fine Division 0.004mm,Coarse Stroke 32.7mm per Rotation,Fine Stroke 0.4mm per Rotation,Moving Range 24mm	●
聚光镜Condenser	NA1.20阿贝聚光镜带可变光栏和滤色片Abbe NA1.20 with Iris Diaphragm and Filter	●
聚光镜Condenser	NA1.25阿贝聚光镜带可变光栏和滤色片Abbe NA1.25 with Iris Diaphragm and Filter	O
照明系统 Illumination	S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable	●
照明系统 Illumination	6V/20W卤素灯照明系统，亮度可调Halogen Lamp 6V/20W,Brightness Adjustable	O
相衬附件 Phase Contrast Kit		O
暗场附件 Dark Field Attachment		O
偏光装置 Polarization Attachment		O

注：●为标准配置，○为选购配件 Note: ● Standard Outfit, O Optional
