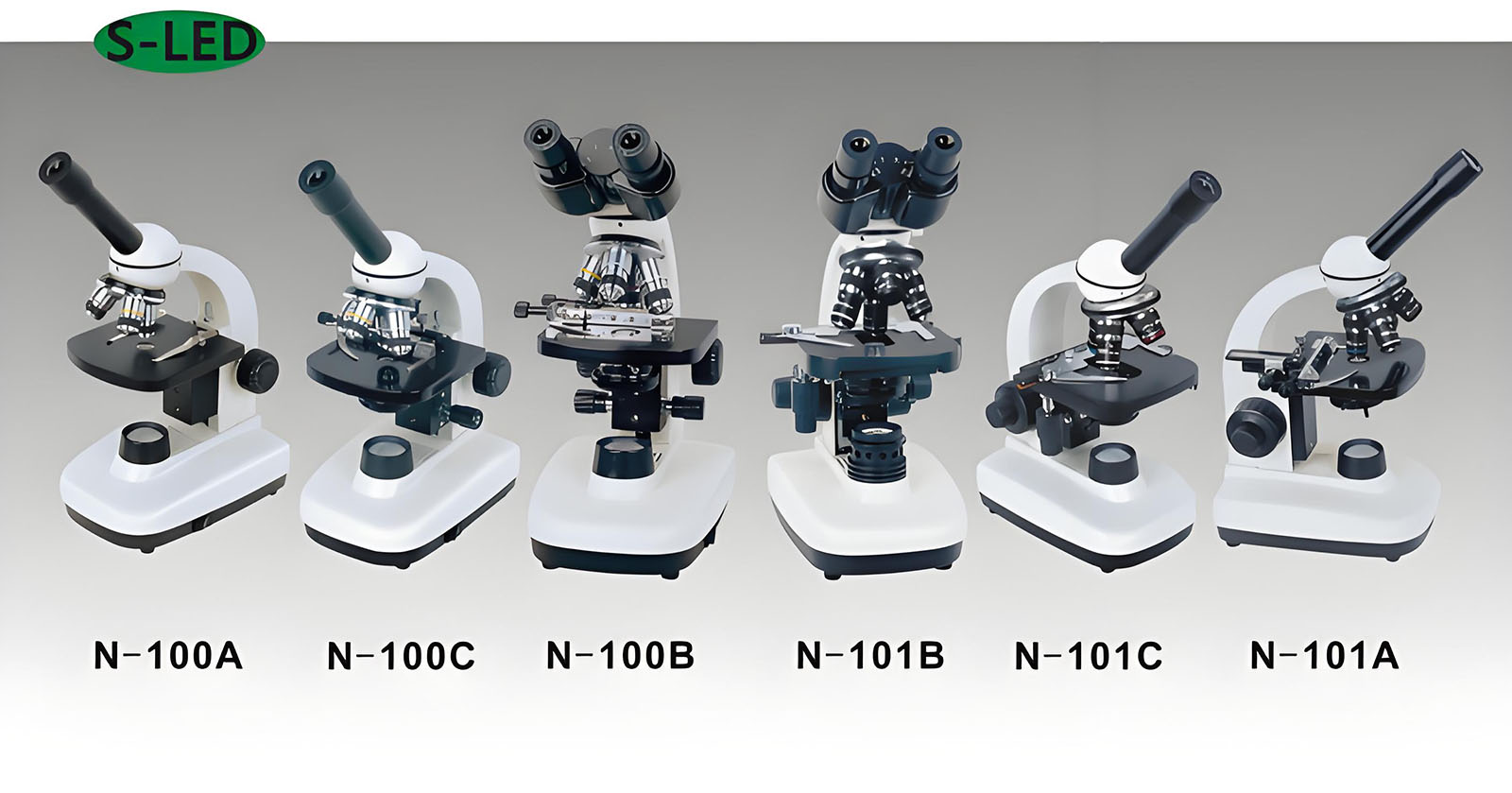

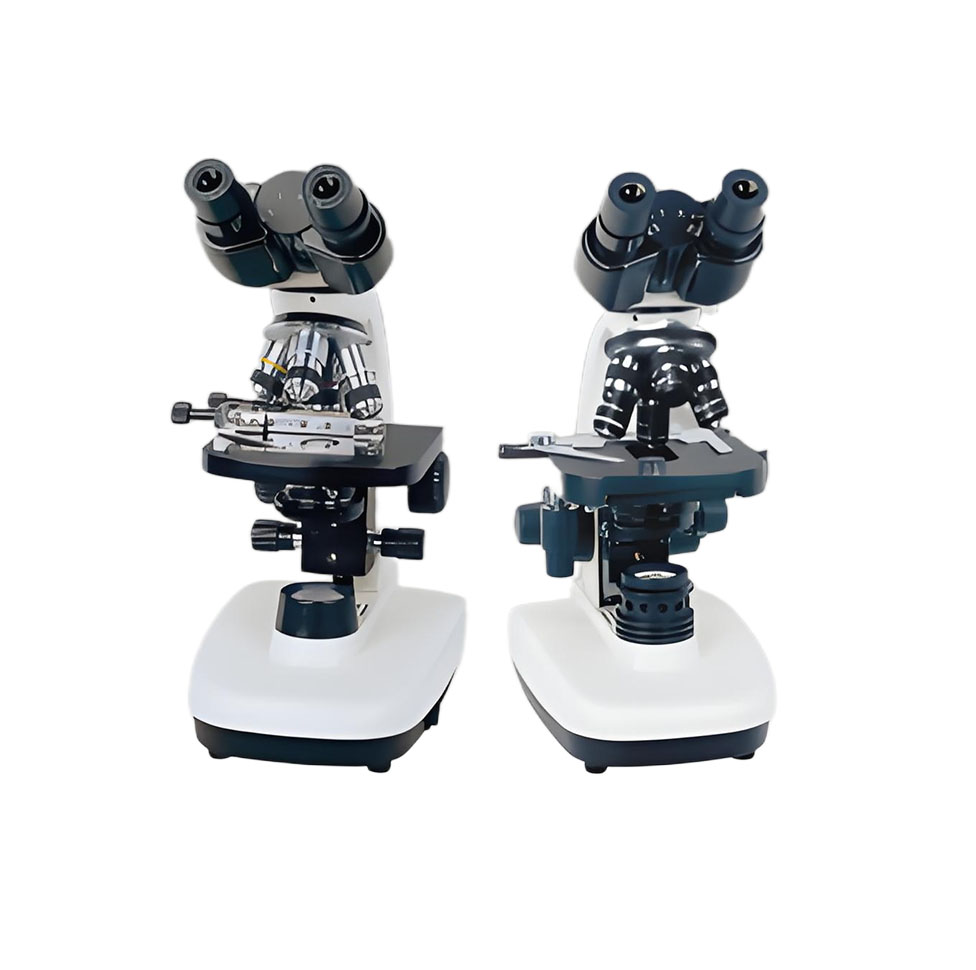

N-100 & N-101 Series Biological Microscope

观察头

Viewing

Head

单目头，45°倾斜Monocular Head inclined at 45°

●

●

●

●

铰链式双目头，30°倾斜Binocular Head inclined at 30°

●

●

示教头Teaching Head

O

O

O

O

O

O

目 镜

Eyepiece

大视场目镜WF10X/18 Wide Field Eyepiece WF10X/18

●

●

●

●

●

●

P16X/11

O

O

O

O

O

O

物镜

Objective

185物镜4X,10X,40X 185 Objective 4X,10X,40X

●

●

●

185物镜100X 185 Objective 100X

●

●

物镜(DIN)4X,10X,40X,100X Objective(DIN)4X,10X,40X,100X

●

●

●

转换器

Nosepiece

三孔转换器Triple Nosepiece

●

四孔转换器Quadruple Nosepiece

●

●

●

●

●

载物台
Stage

简易平台125X120mm Plain Stage 125X120mm

●

平台带移动尺110X120mm,移动范围60X30mm
Attachable Mechanical Stage 110X120mm/60X30mm

●

●

●

双层活动平台125X120mm Double Layer Mechanical Stage 125X120mm/60X30mm

●

●

聚光镜

Condenser

单片透镜带可变光栏Single Lens with Iris

●

阿贝聚光镜NA1.2,带可变光栏和滤色片，螺旋升降机构
Abbe NA1.2 with Iris Diaphragm,Spiral up &down

●

●

●

阿贝聚光镜NA 1.2,带可变光栏和滤色片，齿轮齿条调焦机构
Abbe NA 1.2 with Iris Diaphragm,Rack &Pinion Adjustment

●

●

调焦系统
Focusing
System

分开式粗微调Separate Coarse and Fine Adjustment

●

●

●

同轴粗微调焦机构，微调格值0.004mm,粗动行程每圈37.7mm,微动行程每圈0.4mm,
调焦范围24mm
Coaxial Coarse and Fine Adjustment,Fine Division 0.004mm,Coarse Stroke 37.7mm
per Rotation,Fine Stroke 0.4mm per Rotation,Moving Range 24mm

●

●

●

照明

Illumination

S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable

●

●

●

●

●

●

6V/15W卤素灯，亮度可调Halogen Lamp 6V/15W,Brightness Adjustable

O

O

O

平凹反光镜Plan-concave Mirror

O

O

O

O

O

O

滤色片

Filter

蓝色滤色片Blue Filter

O

O

O

O

O

绿色滤色片Green Filter

●

●

●

●

●
