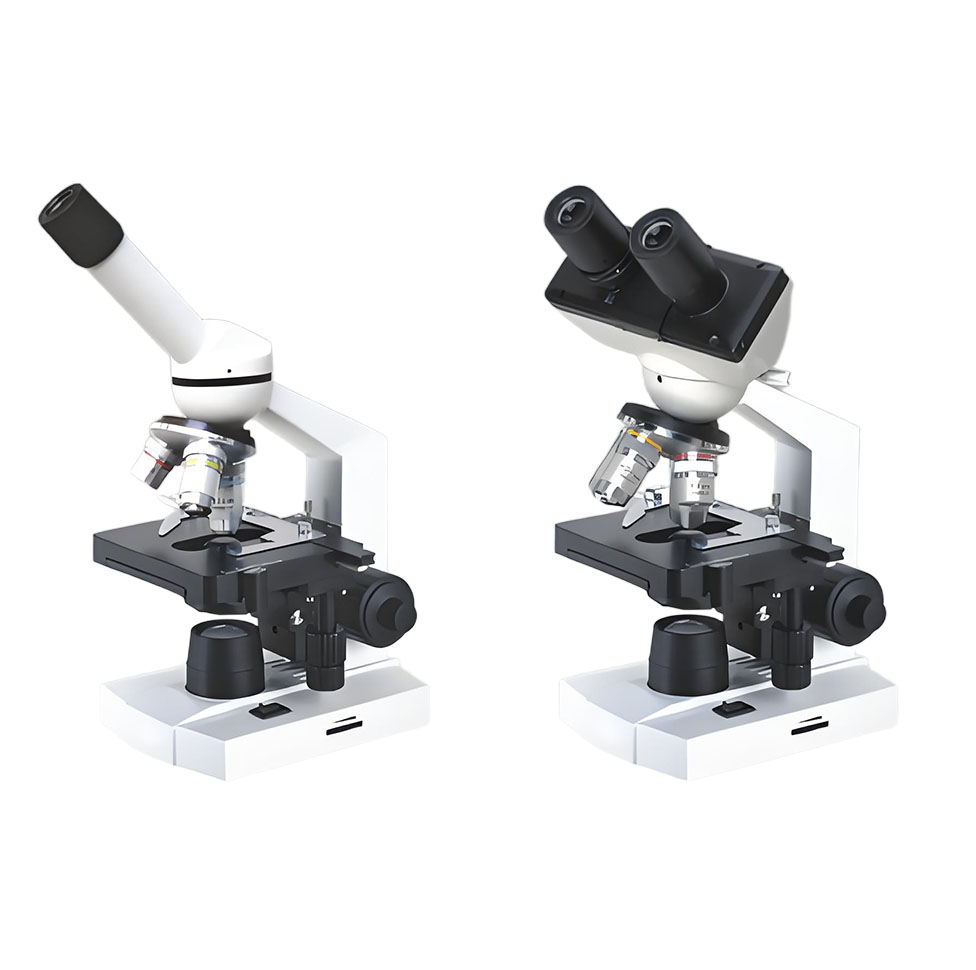

N-10 Series Biological Microscope

观察系统

Viewing Head

单目头，45°倾斜Monocular Head,Inclined at 45°

●

●

●

平移式双目头，45°倾斜Sliding Binocular Head,Inclined at 45°

●

转换器

Nosepiece

三孔转换器Triple Nosepiece

●

●

●

四孔转换器Quadruple Nosepiece

●

目 镜

Eyepiece

大视场目镜WF10X Wide Field Eyepiece WF10X

●

●

●

●

目镜WF5X,P16X Eyepiece WF 5X,P16X

O

O

O

O

指针目镜WF10X Eyepiece WF10X with Pointer

O

O

O

O

物镜

Objective

消色差物镜4X,10X,40X(S)Achromatic Objective 4X,10X,40X(S)

●

●

●

●

消色差物镜20X,60X Achromatic Objective 20X,60X

O

O

O

O

消色差物镜100X Achromatic Objective 100X

O

O

O

●

平台

Stage

简易平台带切片压片，平台尺寸110X120mm Plain Stage with Slide Clips 110X120mm

●

简易平台加移动尺，尺寸110X120mm,移动范围60X30mm
Attachable Mechanical Stag 110X120mm/60X30mm

●

双层活动平台，尺寸110X120mm,移动范围70X20mm
Double Layers Mechanical Stage 110X120mm/70X20mm

●

●

调焦系统
Focusing System

同轴粗微调焦机构，调节范围10mm
Coaxial Coarse and Fine Adjustment,Moving Range 10mm

●

●

●

●

聚光镜

Condenser

NA 0.65聚光镜带可变光栏Single Lens NA 0.65 with Iris Diaphragm

●

NA1.2阿贝聚光镜带可变光栏，螺旋升降机构
Abbe NA1.2 with Iris Diaphragm,Spiral Adjustment for Condenser

●

NA1.2阿贝聚光镜带可变光栏，燕尾升降机构
Abbe NA1.2 with Iris Diaphragm,Rack and Pinion Adjustment for Condenser

●

●

照明Illumination

LED照明，亮度可调LED Lamp Illumination,Brightness Adjustable

●

●

●

●

反光镜Mirror

O

O

O

O
