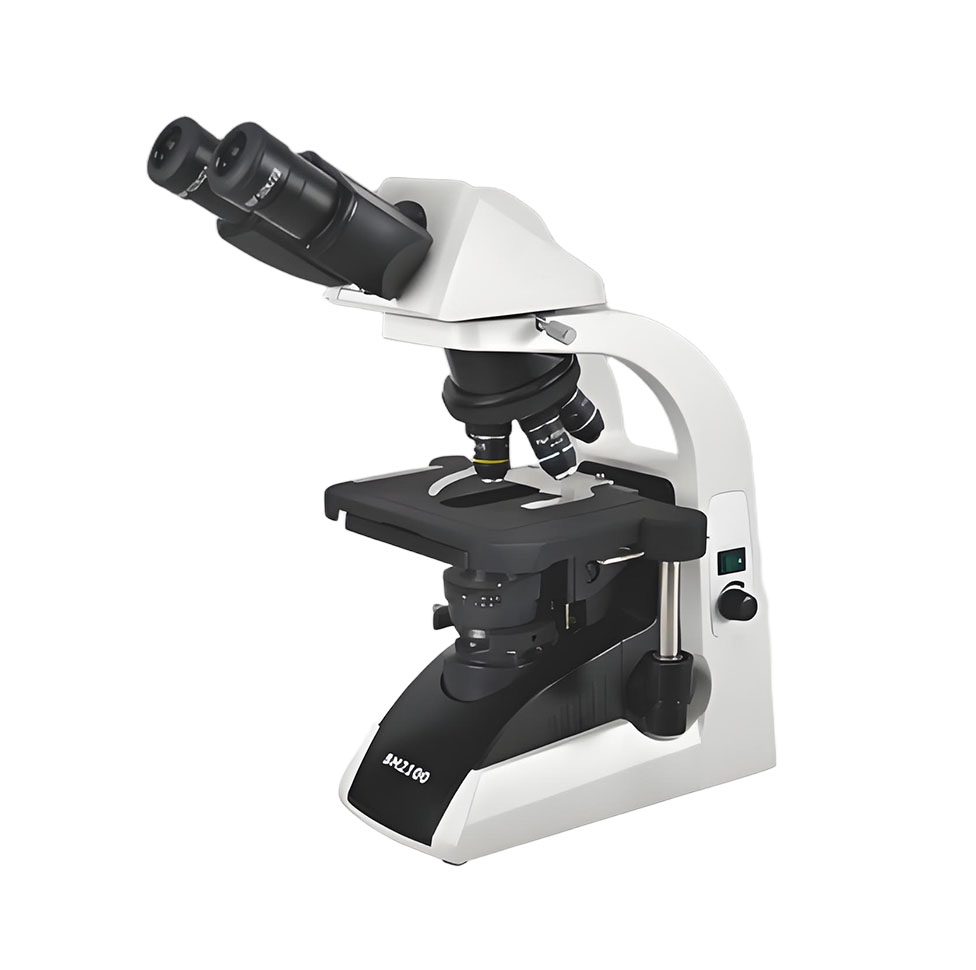

BM 2100 Biological Microscope

● 模块化设计，灵活多变，量身定制的显微镜构架。
● 经济实惠，更能满足您的个性需求。
● Modular, flexible, tailored design.
● Excellent cost performance, also can fits your individual needs.

			BM2100
光学系统 Optical System	无限远光学系统 Infinite Optical System		●
观察头 Viewing Head	铰链式双目头，30°倾斜，瞳距 48-75mm Seidentopf Binocular Viewing Head, Inclined at 30°,360°Rotatable, Interpupillary 48-75mm		●
	铰链式三目头，30°倾斜，瞳距 48-75mm Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm		O
目镜 Eyepiece	大视野目镜 WF10X122,镜筒φ30 Wide Field Eyepiece EW10X122, Eyepiece Tube Diameter 30mm		●
	大视野目镜 WF15X/16 Wide Field Eyepiece EW15X/16		O
	大视野目镜 WF20X/12 Wide Field Eyepiece EW20X/12		O
转换器 Nosepiece	内向式五孔转换器 Backward Quintuple Nosepiece		●
	内向式四孔转换器 Backward Quadruple Nosepiece		O
物镜 Objective	无限远平场消色差物镜 4X,10X, 40X,100X Infinite Plan Achromatic Objective 4X, 10X,40X, 100X(Oil)		●
	无限远平场消色差物镜20X,60X,20X(长距物镜),100X Infinite Plan Achromatic Objective 20X,60X,20X(WD14mm),100X(Dry)		O
聚光镜 Condenser	阿贝聚光镜 NA1.25,带可变光栏 Abbe Condenser NA1.25 with Aperture Diaphragm		●
调焦系统 Focusing System	同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围22mm Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm		●
载物台 Stage	机械移动式载物台 230X150mm,移动范围78X54mm,无凸出，可夹持双切片 Rectangular 230X150mm, Cross Travel 78X54mm, Using Low-positioned XY Coaxial Control Knob		●
照明系统 Illumination	12V/20W 卤素灯，亮度连续可调； 12V/20W Halogen Lamp, Brightness Adjustable		●
	2V/30W卤素灯，亮度连续可调； 12V/30W Halogen Lamp, Brightness Adjustable		O
	LED 灯 LED Illumination		O
附件 Accessories	摄影附件 Photo Attachment		O
	摄像接口 Video Adapter	C型摄像接口 C Mount 0.4X	O
		C型摄像接口 C Mount 0.5X	O
	偏光装置 Polarization Attachment		O
	相衬装置 Phase Contrast Kit		O
	暗场装置 Dark Field Attachment	干式暗场聚光镜 Dark-field Condenser (Dry)	O
		油式暗场聚光镜 Dark-field Condenser(Oil)	O
	柯勒照明附件 Kohler Illumination		O
	落射荧光装置 Epi-Fluorescent Attachment		O

注：●为标准配置，O 为选购配件 Note: ● Standard Outfit, O Optional
