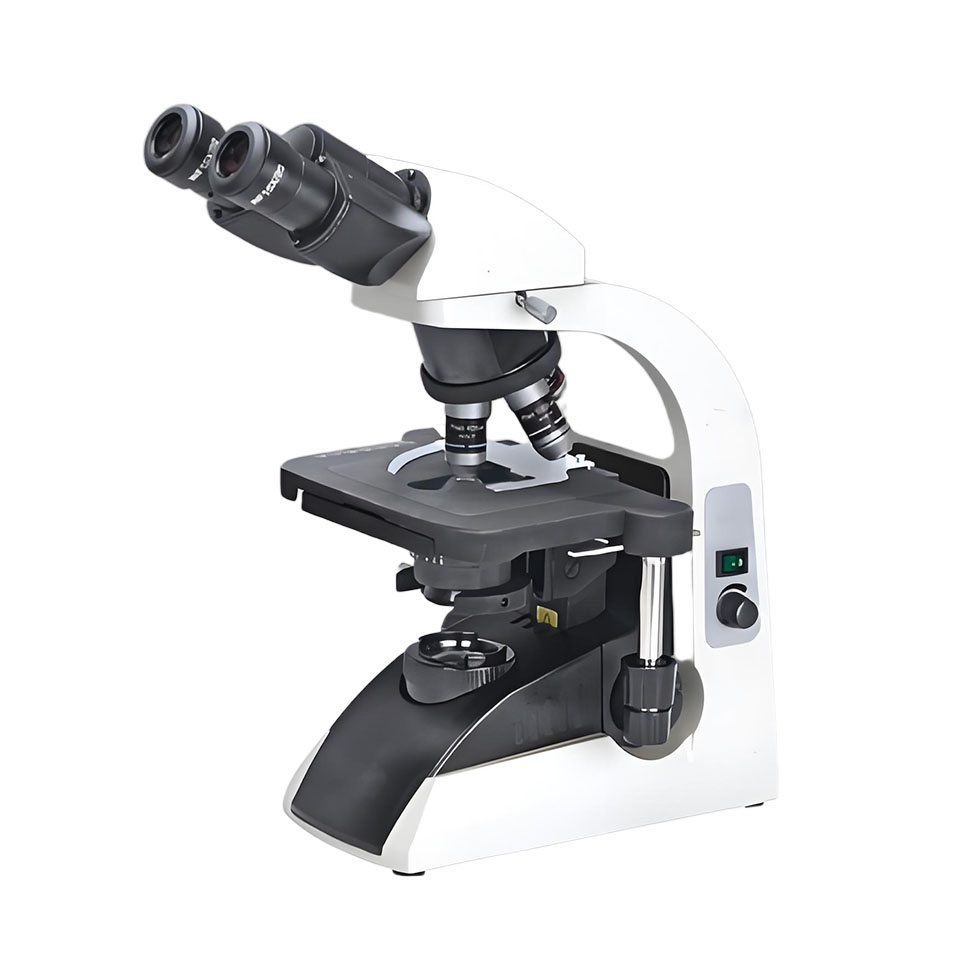

BM 2000 Biological Microscope

Biological Microscope BM2000
● 采用无限远光学系统，让您感受到它与众不同的光学性能
● 完美的流线型结构设计，使操作者倍感舒适和亲切
● 插拔式可调节聚光镜，使照明更加集中、有效，便于相衬、暗场等附件更换
● Excellent image quality with infinite optical system
● Comfortable operating with ergonomic design
● Better illumination with sliding-in center able condenser, convenient replacement with phase contra stand dark field condenser

		BM2000
光学系统 Optical System	无限远光学系统 Infinite Optical System	●
观察头 Viewing Head	铰链式双目头，倾角30°,360°可转，瞳距 48-75mm Seidentopf Binocular Viewing Head, Inclined at 30°,360°Rotatable, Interpupillary 48-75mm	●
观察头 Viewing Head	铰链式三目头，倾角30°,360°可转，瞳距 48-75mm Seidentopf Trinocular Viewing Head, Inclined at 30°,360° Rotatable, Interpupillary 48-75mm	O
目镜 Eyepiece	WF10X/20	●
目镜 Eyepiece	WF15X/16
物镜 Objective	无限远平场消色差物镜 4X,10X,40X,100X Infinite plan Achromatic Objective 4X,10X,40X, 100X	●
物镜 Objective	无限远平场消色差物镜 20X,60X Infinite plan Achromatic Objective 20X,60X	O
转换器 Nosepiece	内向式四孔转换器 Backward Quadruple Nosepiece	●
转换器 Nosepiece	内向式五孔转换器 Backward Quintuple Nosepiece	O
调焦系统 Focusing System	同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围22mm Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm	●
载物台 Stage	机械移动式载物台 230X150mm,移动范围78X54mm,无凸出，可夹持双切片 Rectangular 230X150mm, Cross Travel 78X54mm, Using Low-positioned X/Y Coaxial Control Knob	●
聚光镜 Condenser	阿贝聚光镜 NA1.25(带孔径光栏),可装滤色片 Abbe Condenser NA1.25 with Aperture Diaphragm	●
照明系统 Illumination	12V/20W卤素灯，亮度可调 12V/20W Halogen Lamp, Brightness Adjustable	●
照明系统 Illumination	S-LED照明，亮度连续可调 S-LED Illumination, Brightness Adjustable	O
选购 Optional	摄影装置，摄像装置，偏光装置，柯勒照明，相衬附件 Photo Attachment, Video Attachment, Polarization Set, Kohler Illumination, Phase Contrast Kit	O

注：●为标准配置，○为选购配件 Note: ● Standard Outfit, ○ Optional
