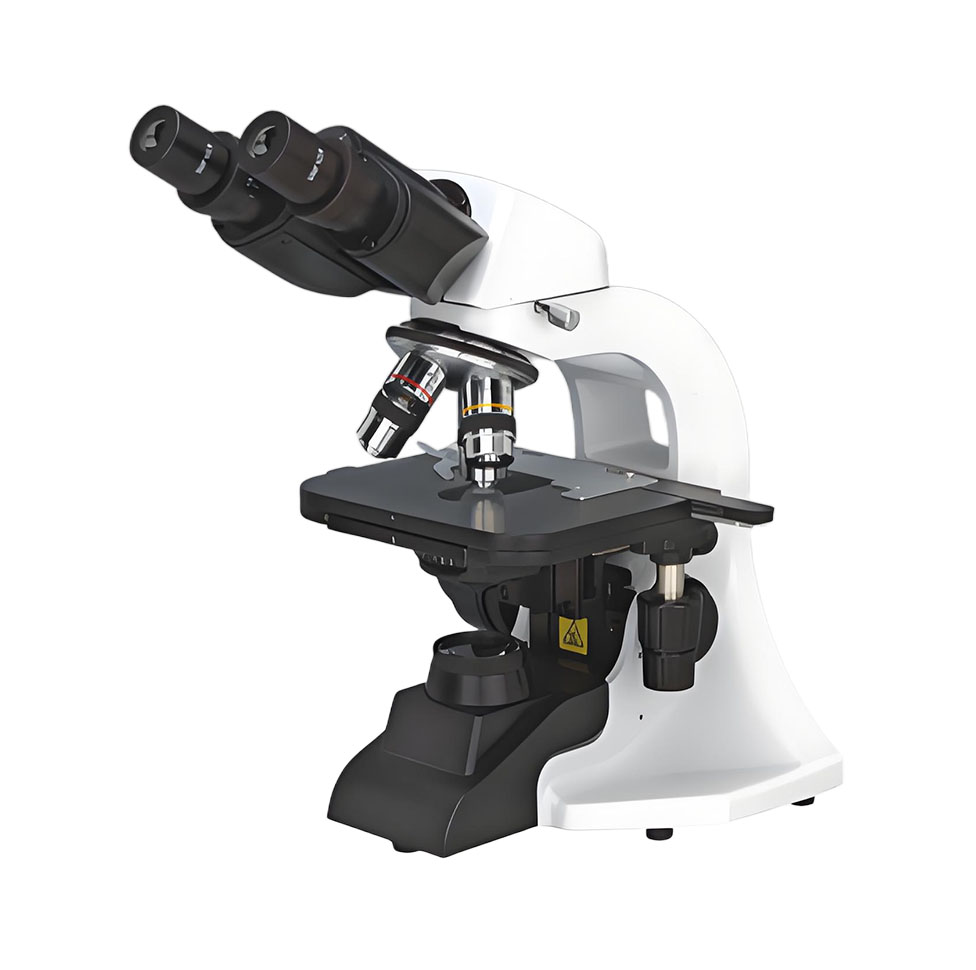

BM 1000 Biological Microscope

观察头
Viewing Head

铰链式双目观察头，倾角30°,360°可转，瞳距48-75mm
Seidentopf Binocular Viewing Head,Inclined at 30°,360°Rotatable, Interpupillary 48-75mm

●

铰链式三目观察头，倾角30°,360°可转，瞳距48-75mm
Seidentopf Trinocular Viewing Head,Inclined at 30°,360°Rotatable, Interpupillary 48-75mm

O

目 镜

Eyepiece

WF10X/18

●

WF16X/11

O

物镜
Objective

消色差物镜4X,10X,40X,100X
Achromatic Objective 4X,10X,40X,100X

●

平场消色差物镜4X,10X,40X,100X
Plan Achromatic Objective 4X,10X,40X,100X

O

无限远平场消色差物镜4X,10X,40X,100X
Infinite Plan Achromatic Objective 4X,10X,40X,100X

O

转换器Nosepiece

四孔转换器Quadruple Nosepiece

●

调焦系统

Focusing System

同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围20mm

Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Coarse Stroke 37.7mm per Rotation,

Fine Stroke 0.2mm per Rotation,Moving Range 20mm

●

载物台
Stage

双层机械平台132X142mm,移动范围75X40mm
Double Layers Mechanical Stage132X142mm/75X40mm

●

聚光镜
Condenser

阿贝聚光镜NA1.25,带可变光栏
Abbe Condenser NA1.25 with Aperture Diaphragm

●

照明系统

Illumination

S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable

●

12V/20W卤素灯12V/20W Halogen Lamp,Brightness Adjustable

O

柯勒照明Kohler Illumination

O

选购
Optional

摄影装置，摄像装置，暗场聚光镜
Photo Attachment,Video Attachment,Dark Field Condensor

O
