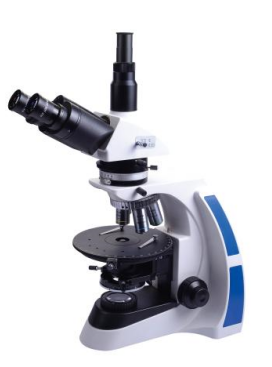

XP-175 Series Polarizing Microscope

XP-175PL

XP-175PLT

XP-175PH

XP-175PHT

观察头

Viewing Head

30°铰链式双目，可调瞳距50mm-75mm

Compensation Free Binocular Head 30° (50mm-75mm)

●

●

30°铰链式三目，可调瞳距50mm-75mm

Compensation Free Trinocular Head 30° (50mm-75mm)

●

●

目镜Eyepiece

WE10X20mm

WF10X/20mm

●

●

W F10X网格目镜

WF10X Gridding Eyepiece

●

●

●

●

W F10X十字目镜

WF10X Eyepiece with crosshair

●

●

●

●

WF10X22mm

WF10X22mm

●

●

转换器Nosepiece

五孔调中转换器

Quintuple nosepiece with center adjustable

物镜

Objective

无应力有限远消色差物镜： 4X,10X,25X,40X(s),60X(s)

Stress-free achromatic objective: 4X,10X,25X,40X(s),60X(s)

●

●

无应力无限远平场物镜   ,10X,20X,40X(s),60X(s) 100X(S)Oil(选购)

Stress-free infinity plan objective: 4X,10X,20X,40X(s),60X(s

100X(S) Oil(Optional Accessory)

●

●

平台 Stage

旋转平台

Rotary stage

●

●

●

●

平台尺寸：Φ160mm

Stage size:φ160mm

移动范围：360°

Moving range:360°

聚光镜Condenser

N.A.1.25摇摆式聚光镜带可变光栏

Swing type N.A.1.25Abbe condenser with iris diaphragm

●

●

●

●

调焦Focusing

粗、微动同轴调焦，采用齿轮齿条传动机构

微动格值0.002mm

Coaxial coarse and fine focusing adjustment,with ck and pinion mechanism,fine focusing scale

value 0.002mm

●

●

●

●

光源Light Source

卤素灯6V/30W,AC85V-230V 亮度可调节

Halogen bulb 6V30W,AC85V-230V,brightness adjustable

●

●

●

●

集光镜IIluminator

高亮度固定式照明

High brightness fixed illumination

●

●

●

●

检测工具

Checking Tool

0.01mm测微尺

0.01mm micrometer

●

●

●

●

试片

Testing piece

石膏1λ试片

Gypsum 1λ testing piece

●

●

●

●

云母1/4λ

Mica 1/4 testing piece

石英楔子试片

Quartz wedge testing piece

可供附件 Optional

Accessory

1、目镜：WF16X WF20XP16X

2、130万、300万、500万、1000万像素CMOS电子目镜

3、 摄影装置及CCD接口0.35X、0.5X、0.63X、0.75X、1X

4、2X摄影目镜，各款单反机接口

1.Eyepiece:WF16X,WF20X,P16X

2.CMOS:1.3Mega,3.0Mega,5.0Mega,10.0Mega

   3.Photography attachment and ccd adapter:

0.35X、0.5X、0.63X、0.75X、1X

4.Photography eyepiece,Various SLR camera adapter
