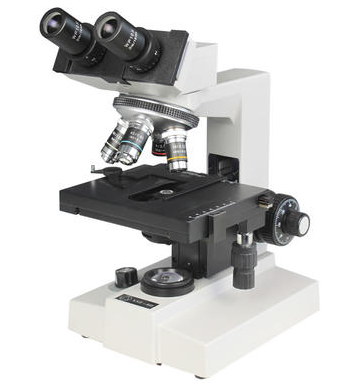

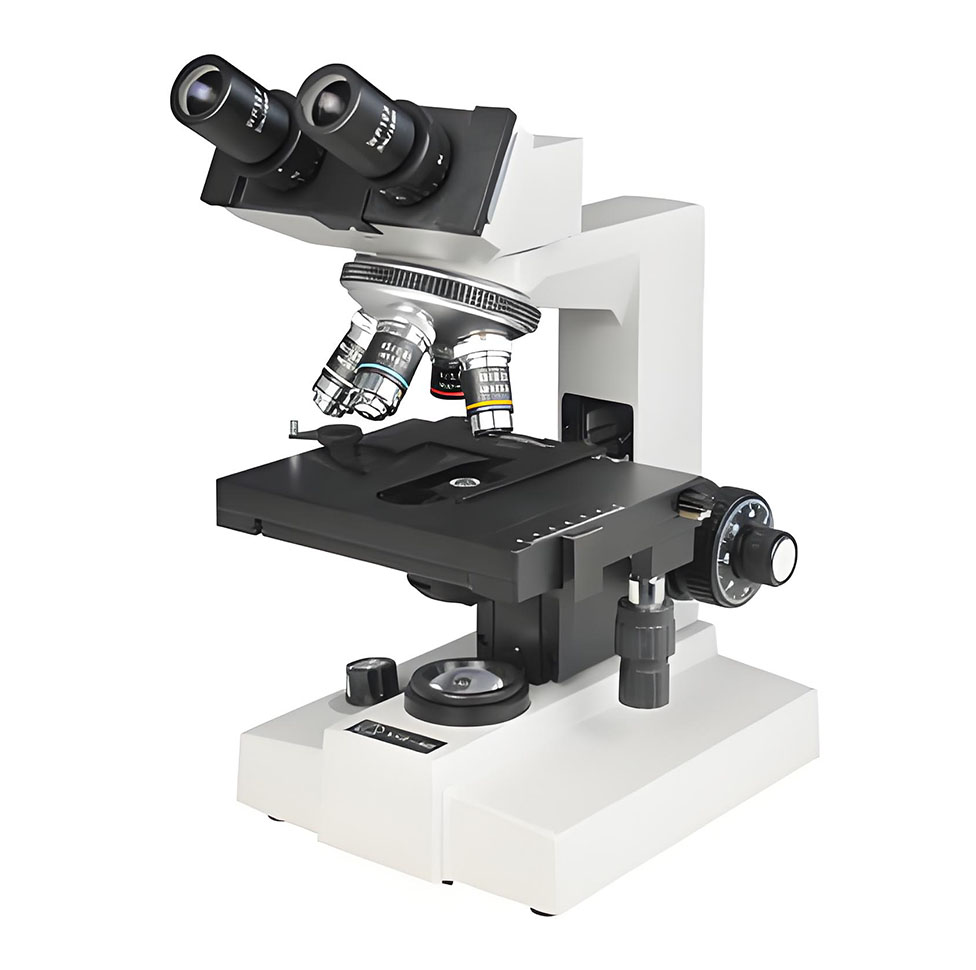

XSZ-8D2 Laboratory biological microscope

Specification

Total Magnification 40X-1600X

Viewing Body 30°Incline Binocular Body，Interpupillary Adjustable Distance: 55mm～75mm

30°Incline Trinocular Body，Interpupillary Adjustable Distance: 55mm～75mm

Eyepiece

WF10X (Viewing Field Diameter: ø18mm)

WF16×(Viewing Field Diameter:ø11mm)

Adjustable Parfocal Achromatic Objectives

4×/NA0.1，10×/NA0.25，40×(s)/NA0.65，100×(s)/NA.1.25（XSZ-8D2A）

4×/NA0.1，10×/NA0.25，40×(s)/NA0.65，100×(with diaphragm)/NA0.9～1.25(s, oil) （XSZ-8D3A，XSZ-8D4 A）

Mechanical Stage Size:160mm×130mm，Moving Range:76mm×50mm，Vernier Division: 0.1mm

Nosepiece Nosepiece of four holes revolving on ball

Condenser

Abbe Condenser：N.A.1.25(Oil)，Elevating Range:15mm

Dark Field Condenser(Dry、Immersion)

Focusing Coaxial Coarse/Fine Focusing Adjustment，Focusing Range:20mm，Division of Fine Focus Adjustment:0.002mm

Illumination 6V 20W Halogen Lamp With Adjustable Brightness, Free Voltage 100V-240V, Filter(blue、yellow、ground glass)
