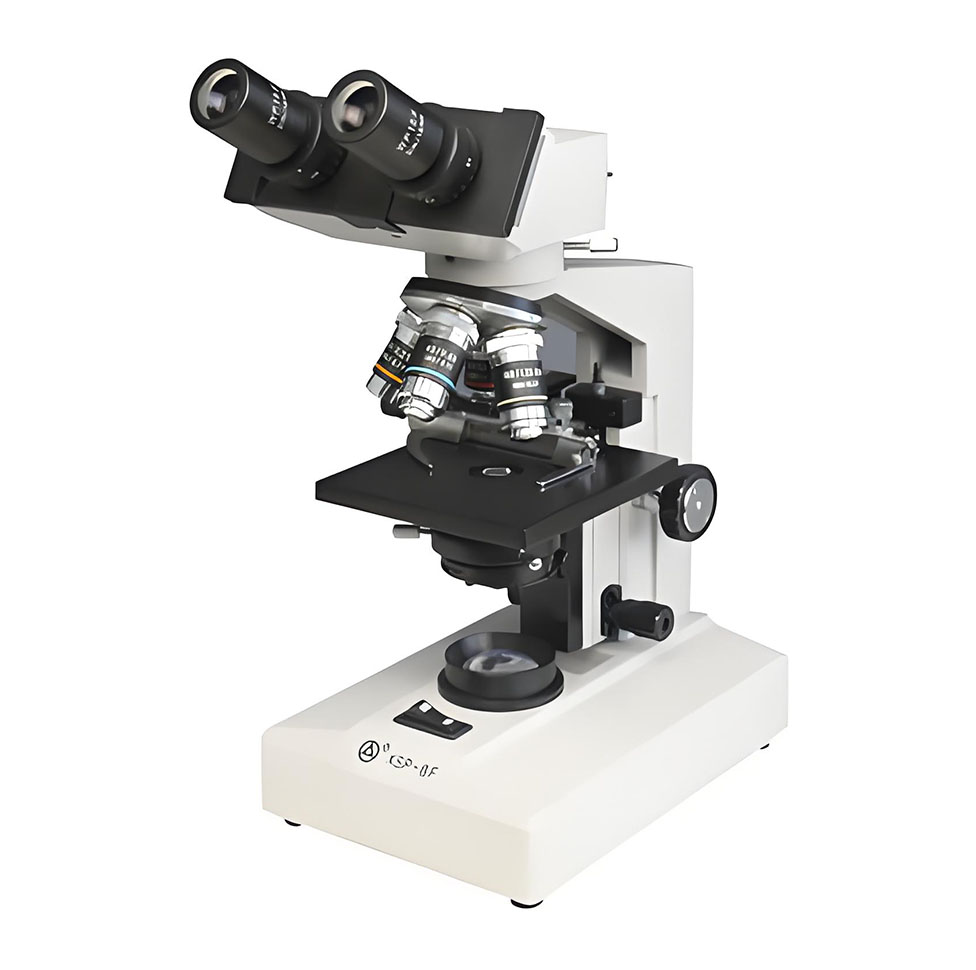

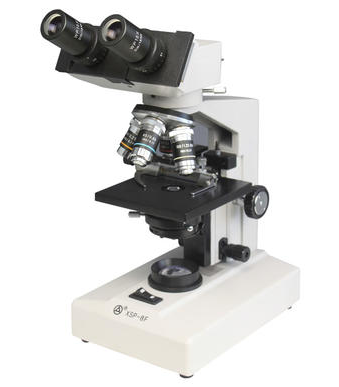

XSP-8F-0408 Laboratory biological microscope

Specification

◆Viewing Body： 30°Incline Binocular Body，Interpupillary Adjustable Distance: 55mm～75mm

◆Eyepiece：WF10× (Viewing Field Diameter: ø18mm)

◆Adjustable Parfocal Achromatic Objective： 4×/NA 0.1，10×/NA 0.25，40×(s)/NA 0.65，100×(s,oil)/NA.1.25

◆Fixed Stage：Size: 110mm×115mm，Moving Range: 60mm×30mm，Vernier Division: 0.1mm

◆Condenser：Abbe Condenser:N.A.1.25(Oil), Elevating Range:15mm

◆Focusing：Separative Coaxial Coarse/Fine Focusing System. Fine Focus Adjustment Range: >2mm. Coarse Focus Adjustment Range:20mm(with Coarse Focusing Spare Limiter And Knob Slipping Protection Unit)

◆Illumination：Incandescent lamp 220V/20W Or 110V/20W

◆Optional: Fluorescent Lamp 220V/5W Or 110V/5W

6V 20W Halogen Bulb, With Adjustable Brightness, Free Voltage 100V-240V
