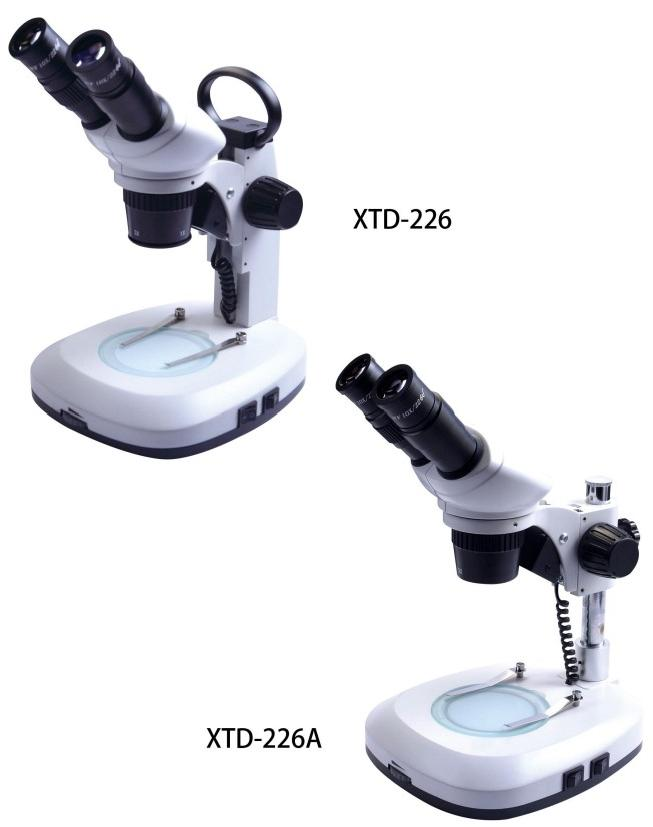

XTD-226 Series stereo microscope

XTD-226 series stereo microscope has excellent and advanced optical property,smooth and clear image.lt is widelyused in modern biomedical,research,modern electronic industry and other scientific technological fields.

XTD-226系列定档变倍体视显微镜具有卓越先进的光学性能，平坦清晰的显微图像。广泛应用于现代教育、科研、现代电子工业和其它科技领域。

技术规格 Specification			型号 M o d e l
技术规格 Specification			XTD- 226-24	XTD- 226-13	XTD- 226A-24	XTD- 226A-13
观察头 Hwin	双目头(55mm-75mm)	Binocular Head (55mm-75mm)	●	●	●	●
日结 pieoe	大视场平场目镜 WF10X/20mm	Extra-wide field plan eyepiece 500/20m0	●	●	●	●
物镜 Objective	2X,4X	2X,4X	●		●
	1X,3X	1X,3X		●		●
	工作距离88mm	Working distance:88mm	●	●	●	●
光源 LightSource	上照明：LED/1W 亮度连续可调	LED 1W,brightness adjustable	●	●	●	●
光源 LightSource	下照明：LED/2W 亮度连续可调	Down illumination:LED 2W,brightness adjustable	●	●	●	●
可供附件 Optiona Accessory	1. 目镜：WF10X/22mm、 WF (17mm、WF20X/12.5mm 2. 不形 3.黑白载物板φ95mm 磨砂玻璃载物板φ95mm	1.Eyeplece:WF10X/22mm WF 7mm,WF20X12.5mm 2.Ring gh 3.Black and white object plate φ95mm,, frosted glass object plate φ95mm
