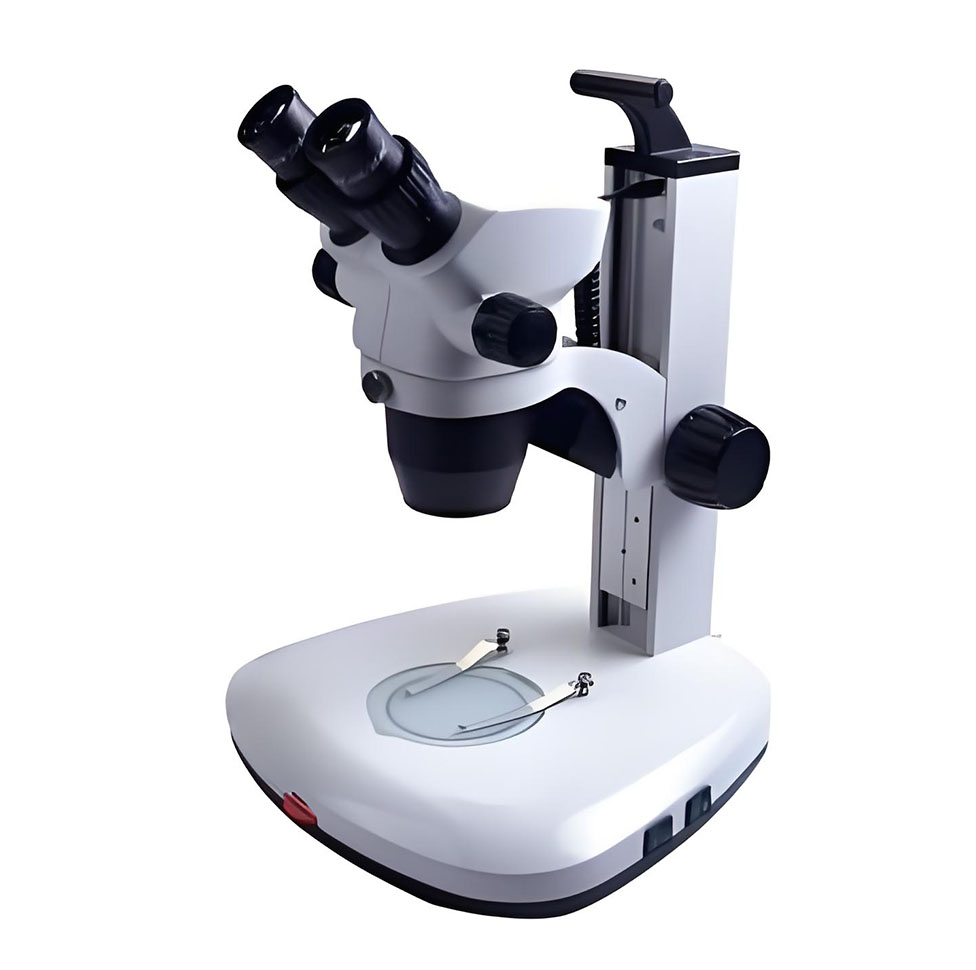

XTD-222 Series zoom stereo microscope

XTD-222 series zoom stereo microscope has excellent and advanced optical property,smooth and clear image.lt iswidely used in modern biomedical,research,modern electronic industry and other scientific technological fields.The working distance reaches 120mm,it brings enough space for use.

XTD-222系列连续变倍体视显微镜具有卓越先进的光学性能，平坦清晰的显微图像。广泛应用于现代生物医学、科研、现代电子工业和其它科技领域。工作距离达到120mm,为使用创造足够的空间。

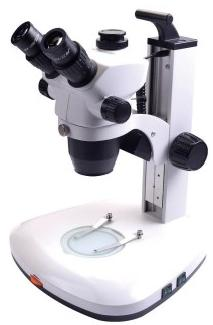

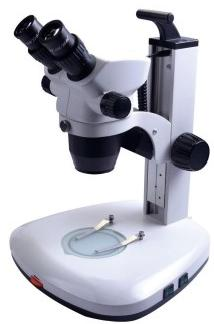

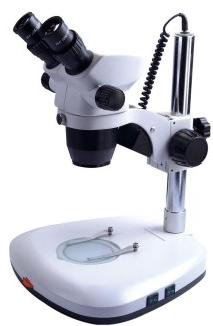

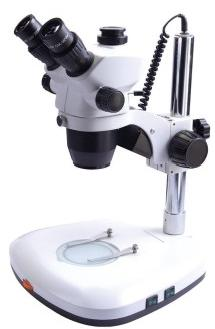

XTD-222 XTD-222T XTD-222A XTD-222AT

技术规格 Specification			型号 M o d e l
技术规格 Specification			XTD-222	XTD-222T	XTD-222A	XTD-222AT
观察头 Viewin Head	双目头(55mm - 75mm)	Binocular Head (55mm-75mm	*		*
观察头 Viewin Head	三目头(55mm - 75mm),带0 . 5X适配镜	Trinocular Head (55mm-75mm)with 0.5X C-mount	*	*	*	*
目镜Eyepiece	大视场平场目镜WF10X/22mm	Extra-wide field plan eyepiece WF10X/22mm	*	*	*	*
物镜 Objective	0.7X～4.5X连续变倍，变倍比1:6.5 商 1 2 0 m o o	Zoom range:0.7X-4.5XZoom ratio:1:6.5 Workino dlstance:120mn	*	*	*	*
光源LightSource	上照明：LED/3W亮度连续可调下照明：LED/2W亮度连续可调	Upperllumnation:LED3W,brghtness adjustablo Down illuminationc LED 2W,brightness adjustable	*	*	*	*
共附件 850ry	. 目镜 WF10X/23mm、WF15X/17mm、WF20X/12.5mm 2.环形灯 3.辅助物镜：0.5X、2X 4.摄影装置及CCD装置 5.各种像素CMOS和电子目镜 6.2X摄影目镜，各款单反机接口	1.Eyepiece WF10X 3mm,WF15X/17mm,WF20X/12.5mm 2.Ring 3.Auxiliary objective:0.5X,2X 4.P phy attachment and cod adapter 5.Various CMOS 6.2X Photography eyepiece,Various SLR camera adapter
