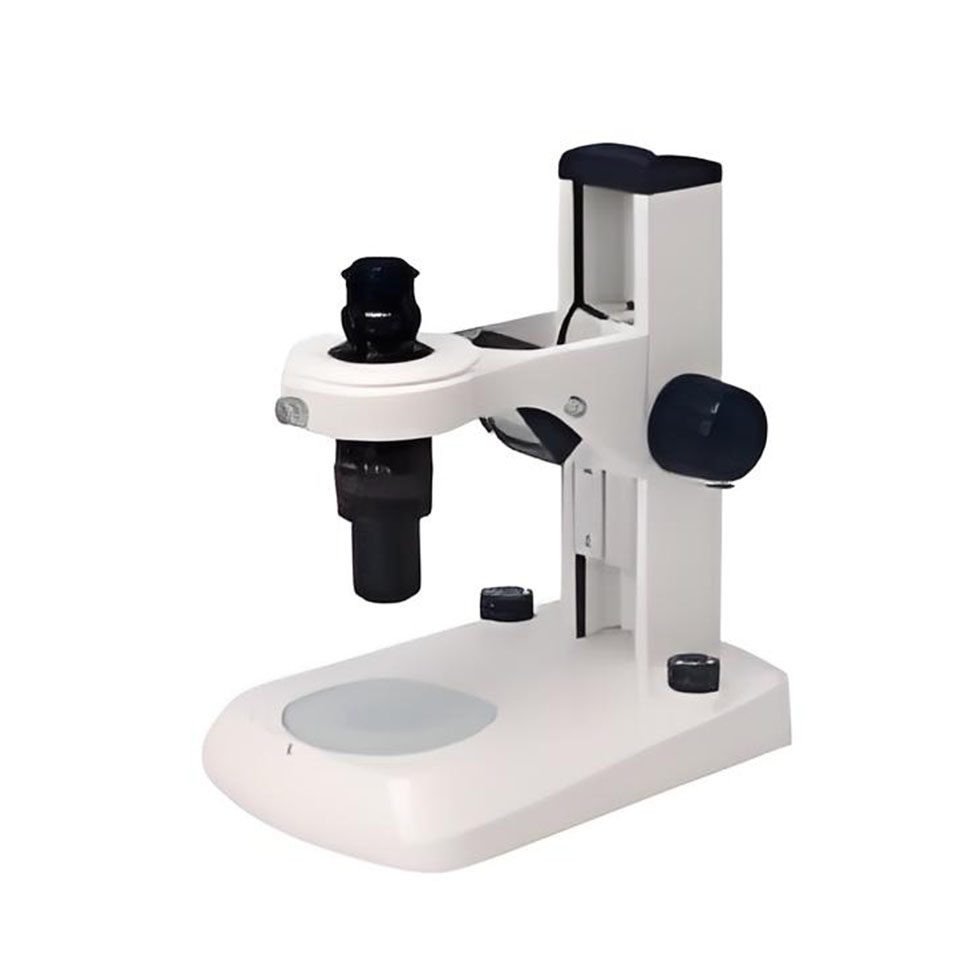

NXZ Monocular Zoom Microscope NXZ Series

Features
·Provided clear,flat image with high quality optical system,resolution up to 200 Ip/mm.
·Widely used in industrial field with compact structure.
·Equipped with high resolution camera for educational research and inspection forelectronic industry and semiconductor.

性能

·高品质的光学系统，分辨率达2001p/mm,提供了清晰、平坦的图像。

·超短的镜筒，结构紧凑，适用于在多种工业设备上使用，满足空间的需求。

·可配置高分辨率摄像系统，为电子工业、半导体的检测，以及教学研究而专业设计。

Features

·Provided clear,flat image with high quality optical system,resolution up to 200 Ip/mm.

·Widely used in industrial field with compact structure.

·Equipped with high resolution camera for educational research and inspection forelectronic industry and semiconductor.

技术参数Specification

			NXZ-10	NXZ-10D
镜体 Body	目镜WF10X Eyepiece WF10X
	连续变倍比1:6.5 Zoom Ratio:1:6.5
	总放大倍率7X-45X Total Magnification 7X-45X
	工作距离94mm Working Distance 94mm
摄像系统 Video System	中继镜 Relay Lens	1XC接口 1XC Mount
		0.5XC接口 0.5XC Mount		0
		0.67XC接口 0.67XC Mount		0
	各种摄像仪 Various Digital Cameras		O	0
软件 Software	Scopelmage 9.0		0	0
附件 Accessory	辅助物镜 Auxiliary Objective	0.3X	0	O
		0.5X	0	0
		2X	O	0

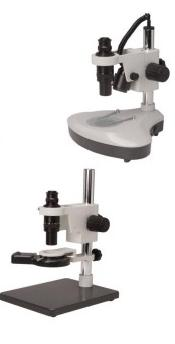

	各种类型的体视机架 Various Stands		0	0

注：●为标准配置，○为选购配件

Note: ● Standard Outfit, ○ Optional
