Features
·Interpupillary distance:55-75mm·One tube with diopter adjustment:+/-5 Dio.
·Illumination:110Vor 220V/12V10W,CE approval
·Optional accessories:Inserted objective 1X,3X,4X,6XRotated Objective
性能
·双目瞳距：55-75mm
·单目视度调节：+/-5屈光度
·照明：110V或220V/12V10W,CE认证
·可供附件：插入式物镜1×,3×,4×,6×旋转式物镜1×&2×,1×&3×目镜WF5×,WF15×,WF20×
Features
·Interpupillary distance:55-75mm·One tube with diopter adjustment:+/-5 Dio.
·Illumination:110Vor 220V/12V10W,CE approval
·Optional accessories:Inserted objective 1X, 3X, 4X, 6X Rotated Objective 1X&2X,1X&3X Eyepiece WF5X, WF15X, WF20X

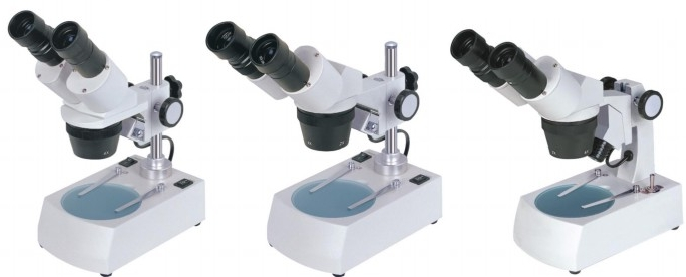

NTX-3C NTX-5C NTX-6C-W
型 号 Mode | 照 明 光 源 Illumination | 观察头和镜体 Headand Body | 物镜 Obiective | 工作距离 W.D | 目镜 Eyepiece |
NTX-1A | 无光源No Light | 直简观安 Straight Viewing |
2X 插入式 nsentod |
80MM |
WF10X/20 |
NTX-1B | 落射光源Incident Light | ||||
NTX-1C | 落射/透射光源Incident/Transmitted Light | ||||
NTX-2A | 无光源No Light |
斜筒观察 镜体不可旋转 nclined Viewing Un-rotatable Body | |||
NTX-2B | 落射光源IncidentLight | ||||
NTX-2C | 落射/透射光源Incident/Transmitted Light | ||||
NTX-3A | 无光源No Light | 2X&4X 旋转式90° 90°Rotated |
57MM | ||
NTX-3B | 落射光源Incident Light | ||||
NTX-3C | 落射/透射光源Incident/Transmitted Light | ||||
NTX-5A | 无光源No Ligh | 斜筒观察 镜体360°可转 Inclined Viewing Body 360°rotatable | 2X84Y 旋转式360 360°Rotated |
76MM | |
NTX-5B | 落射光源IncidentLight | ||||
NTX-5C | 落射/透射光源Incident/Transmitted Light | ||||
NTX-6C-W | 落射/透射光源Incident/Transmitted Light |
规格Specifications | NTX-10 | NTX-20 | |
目镜 Eyepiece | WF10X/中20 | 0 | 0 |
WF5X,WF15X,WF20X | 选购Optional | ||
物镜/工作距离 Working 0istaoco06la | 2X&4X/72mm | 0 | 0 |
1X&2X/72mm ,1X&3X/72mm | 选购Optional | ||
辅助物结 Auxiliary Objective | 0.5X,0.75X,1.5X,2X | 选购Optional | |
照明 IIlumination | 无光源No Light | 0 | |
透射和落射照明，卤素灯 Transmitted and Incident Light 110Vor 220V/6V12W T-H Lamp | 0 | ||

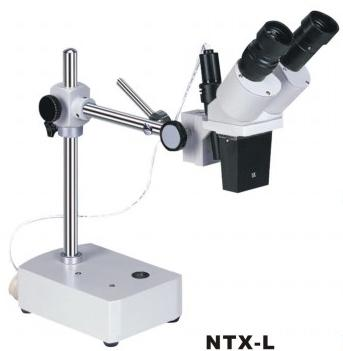

长工作距离体视显微镜Long Working Distance Stereo Microscope
规格
-长臂机架一斜筒双目观察，双目调节范围55-75mm,左目镜筒视度可调+/-5屈光度一大视场目镜WF10×/φ20-插入式物镜1×-物镜工作距离230mm一照明110V或220V/12V30W白炽灯
选购件：
物镜0.5×,工作距离250mm目镜WF5×/Φ22,WF15×/Φ15,WF20×/Φ10
Specification
-Long Arm for Microscope Body-Inclined Binocular Head Interpupillary Distance 55-75mm
Diopter Adjustment on Left Tube+/-5 Dio.-Eyepiece WF10X
-Inserted Objective 1X
-Working Distance of Objective 230mm-Illumination 110V or 220V/12V10W Incandescent Lamp
Options:Objective 0.5X,Working Distance 250mmEyepiece WF5X/Φ22,WF15X/Φ15,WF20X/Φ10
