NSZ-800(SZ6000) StereoscopicMicroscope NSZ-800(SZ6000)Seres

Features
·Unrivaled optical performance with infinity parallel optical system.
·Providing even illumination and 6000 hours life expectancy with ultra-thin LED illumination for both incident and transmitted light.
·With complete accessories,it can be used widely for scientific research,industry,biological and medical field.

性能

·NSZ系列体视显微镜采用无限远平行光学系统，拥有无与伦比的光学性能。

·超薄型反射和透射式LED光源，照明均匀，平均使用寿命6000小时。

·以丰富、完备的功能部件来满足各项功能的扩展，是科研、工业、生物和医疗等领域最理想的助手。

Features

·Unrivaled optical performance with infinity parallel optical system.

·Providing even illumination and 6000 hours life expectancy with ultra-thin LED illumination for both incident and transmitted light.

·With complete accessories,it can be used widely for scientific research,industry,biological and medical field.


技术参数Specification

			NSZ-806	NSZ-808	NSZ-80
光学系统 Optical System	平行双光路变倍系统 Parallel optical zoom system
观察头 Viewing Head	双目观察头，倾角20°,瞳距55-75mm Binocular head,20°inclined,Interpupilary distangce 55-75mm
观察头 Viewing Head	双目观察头，倾角0°-35°可调，,瞳距55-75mm,可提升眼点高度到137mm Tilting binocular eyepiece tube,0-35°inclined,Interpupilary distangce 55-75mm		0		0
目镜 Eyepiece	WF10X/φ22(NSZ-800
	WF10X/φ24(SZ6000)
	WF15X/φ16
	WF20X/φ12
	WF30X			0	0
物镜 Objective	变倍物镜 Z0om Objective	0.8X~5X
		0.8X~6.4X
		0.8X～8X
	主物特 Objective	X平场消色差物镜WD:78mm 1X Plan achromatic objective
		0 . 3X消色差物镜WD:276mm 0.3X Achromatic objective
		0 . 5X消色差物镜WD:186mm 0.5X Achromatic objective	0	0
		2X平场消色差物镜WD:32.5mm 2X Plan achromatic objective		0
		0 .5X平场复消色差物镜WD:126mm 0.5X Plan apochromatic objective	0		0
连续变倍比 Zoom Ratio	1:6
	1:8
	1:10
工作距离 Working Distance	78mm			●
调焦行距 Focusing Range	105mm
照明系统Ilumination	透射、反射LED照明，亮度可调 Transmission &reflection LED illumination,brightness adjustable

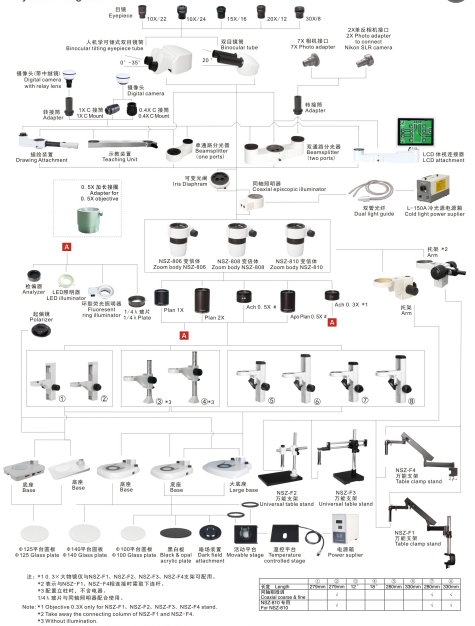

选购配置 Optional	同轴照明装置Coaxial illumination
	荧光装置Epi-fluorescent attachment			0
	暗场装置Dark field attachment			0
	简易偏光装置Simple polarization set
	可变光栏Iris diaphragm		0	0
	单端口分光器Beamsplitter (one port)			0
	双项口分光裕 Beamspliuler(lw000rts			0
	摄影、摄像装置Photography &video attachment
	活动平台Moveable stage
	热台Temperature controlled stage		0	0
	万能支架Universal table stand/Table clamp stand
	同轴粗微调机架Coaxial coarse &fine focusing unit		0	0
	双管光纤冷光源Cold light illumination with dual light guide
	显示屏附件LCD Attachment		0	0	0
