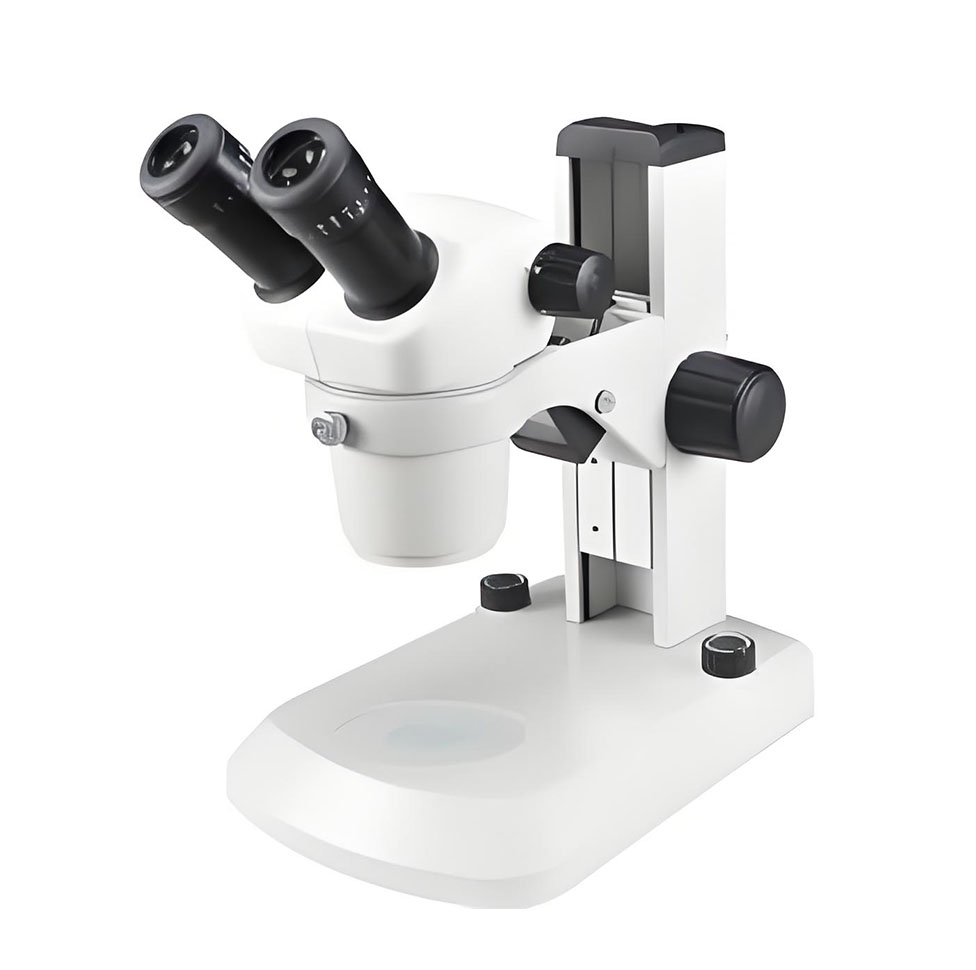

NS80 Stereo Microscope NS80 Series

Features
·The microscope is among the best in its class with excellentoptical performance.
·Various objectives 1X12X,1X14X,1X/2X,2X13X,2X14Xare available.·Magnification range 5X-240 with optionaleyepieces and auxiliary objectives.
·Comfortable operation with proper eyepoint.·Compactstructure,long working distance,suitable for various applications.·ESD design is available.

性能

·卓越的光学性能，是同档次显微镜中的优越者。

·变档物镜1X/3X、1X/4X、1X/2X、2X/3X、2X/4X可供选择，丰富的目镜和辅助物镜扩展了倍率范围(5X-240X)。

·最佳眼点高度，即使长时间使用眼睛也不会疲劳。·紧凑、轻巧的结构，可配套其他设备使用，工作距离长，通用性强，适用于多种检测。

·可采用防静电设计。

Features

·The microscope is among the best in its class with excellentoptical performance.

·Various objectives 1X12X,1X14X,1X/2X,2X13X,2X14Xare available.·Magnification range 5X-240 with optionaleyepieces and auxiliary objectives.

·Comfortable operation with proper eyepoint.·Compactstructure,long working distance,suitable for various applications.·ESD design is available.

技术参数Specification

			NS80/13	NS80/14	NS80/12	NS80/23	NS80/24
镜体 Viewing Tube	双筒体视镜体，倾角45°Binocular head,inclined at 45°
	双筒体视镜体，倾角60°Binocular head,inclined at 60°		0	0	0	0	0
	三筒体视镜体，倾角45°Trinocular head,inclined at 45°		0	0	0	0	0
视度可调目镜 Diopter Adjustment Eyepiece	WF10X/φ23
	WF10X/φ20		0	0	0	0	0
	WF10X/φ22		0	0	0	0	0
	WF15X/φ16		0	0	0	0	0
	高眼点WF20X/φ12 High-point WF20X/φ12		0	0	0	0	0
	低眼点WF20X/φ12 Low-point WF20X/φ12		0	0	0	0	0
	WF30X/φ8		0	0	0	0	0
	WF10X分划目镜WF10XEyepiece with cross hair		0	0	0	0	0
物镜 Objective	变档物镜 Objective	1X/3X
		1X/4X
		1X/2X
		2X/3X
		2X/4X
	辅助物镜 Auxiliary objective	2X WD:30mm	0	0	0	0	0
		0.75X WD:120mm	0	0	0	0	0
		0.63X WD:137mm	0	0	0	0	0
		0.5X WD:180mm	0	0	0	0	0
工作距离 Working Distance	97mm
体视架台 Stand	无光源架台Stand without illumination		0	0	0	0	0
	透射架台，LED照明Stand with LED transmission ilumination		0	0	0	0	0
	反射架台，LED照明Stand with LED reflectiong illumination		0	0	0	0	0
	透/反射架台，LED照明 Stand with LED transmission &reflectiong illumination
接筒 Adapter	T V 接筒 T V M o u n t		0	0	0	0	0
	0 . 5XC接口0 . 5XC Mount		0	0	0	0	0
	1 X C 接口 1 X C M o u n t		0	0	0	0	0

注：●为标准配置，○为选购配件Note:● Standard Outfit,○ Optional
