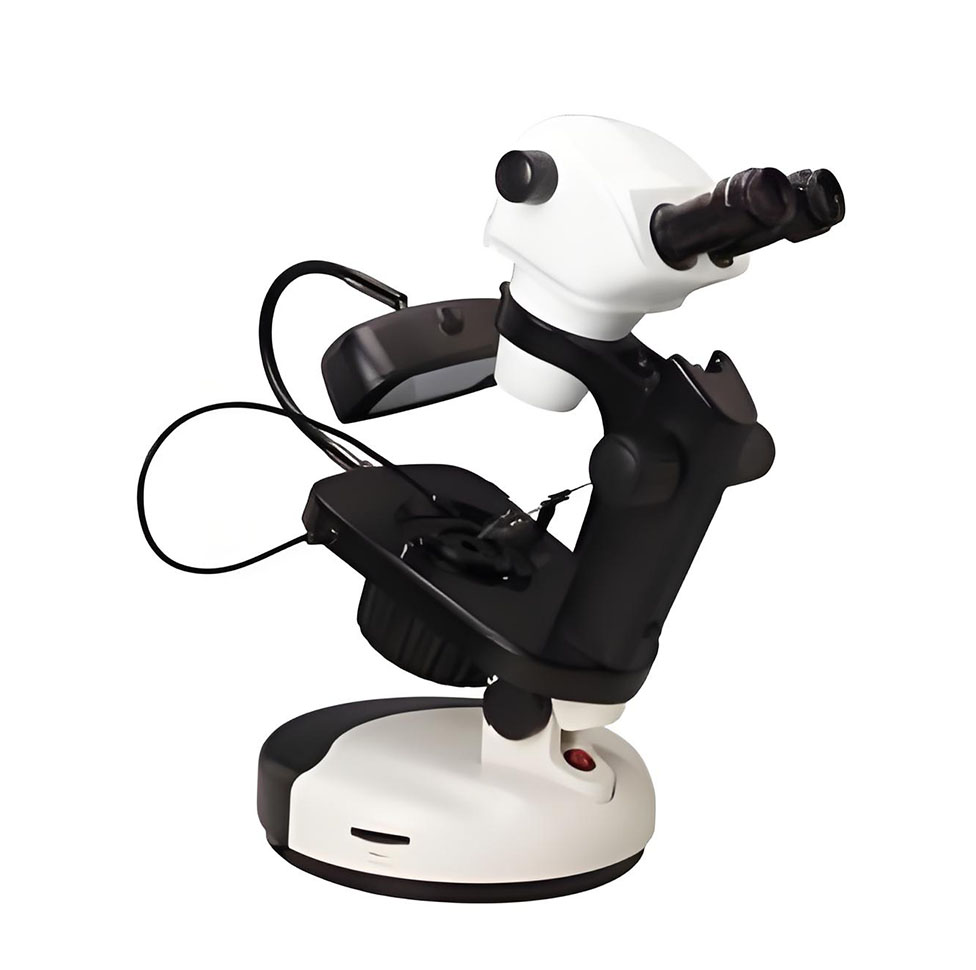

NGI Professional Gem Microscope NGI Series

Features
Offering crisp sharp and high resolution image with bright dark ground illumination, it is a
professional gemological stereo zoom microscope
Designing in economic idea, it makes
operators feel more comfortable

性能

高亮度的暗场照明，可观察到高清晰和高分辨率的立体图像，是鉴定宝石等的专用显微镜

多功能、人性化的结构设计使操作者的工作效率大大提高，减轻操作者的疲劳感

Features

Offering crisp sharp and high resolution image with bright dark ground illumination, it is a

professional gemological stereo zoom microscope

Designing in economic idea, it makes

operators feel more comfortable

图片1.png 图片2.png

图片3.png 图片4.png

技术参数Specification

		NGI-6
变倍镜体 Stereo Zoom Body	变倍物镜0.8X-5X,变倍比1:6.3,工作距离115mm Zoom objective 0.8X-5X,Zoom ratio 1:6.3,Working distance 115mm
目镜 Eyepiece	广角目镜WF15X/φ16,视度可调 Extra wide field eyepiece WF15X/φ16 with diopter adjustment
明、暗场照明 Bright &DarkViewing Field IIlumination	可变光栏φ2mm-41mm,可对照明光束进行调节，方便明、暗场照明的转换 Iris diaphragm 2mm-41mm Bright and dark viewing field illumination adjustable
照明 Illumination	9W日光型荧光灯，符合对钻石的照明要求9W Fluorescentlamp
	LED点光源LED Point Light
	6V/20W卤素灯，可下拉式换灯泡6V/20W Halogen illumination
调焦系统 Focusing	110mm调焦行程，可对大小不同的宝玉石及样品进行观察 Focusing range:110mm;Suitable for observing different size gem and sample
钢丝宝石夹 Gem Clamp	钢性适中的钢丝宝石夹夹持牢靠、方便，并能减少宝石腰部的光线遮挡，可对宝石进行全方位地观察 Quality steel clamp to hold thegem for all direction observations of gems
工作台 Stage	两边都有宝石夹的安装孔，操作者可以根据自己的习惯选择 Two gemclamp fixing holds for you to choose
弯臂 Stand	弯臂可作0-38°倾斜，从而可以调节观察眼点的高度和角度，使操作更加方便舒适 0-38*Rotatable,eyepoint height and angle adjustable
底座Base	底座可作0°-325°旋转0°-325°Rotatable

注:

*为标准配置，0为选购配件

Note:

*Standard Outfit，O Optional
