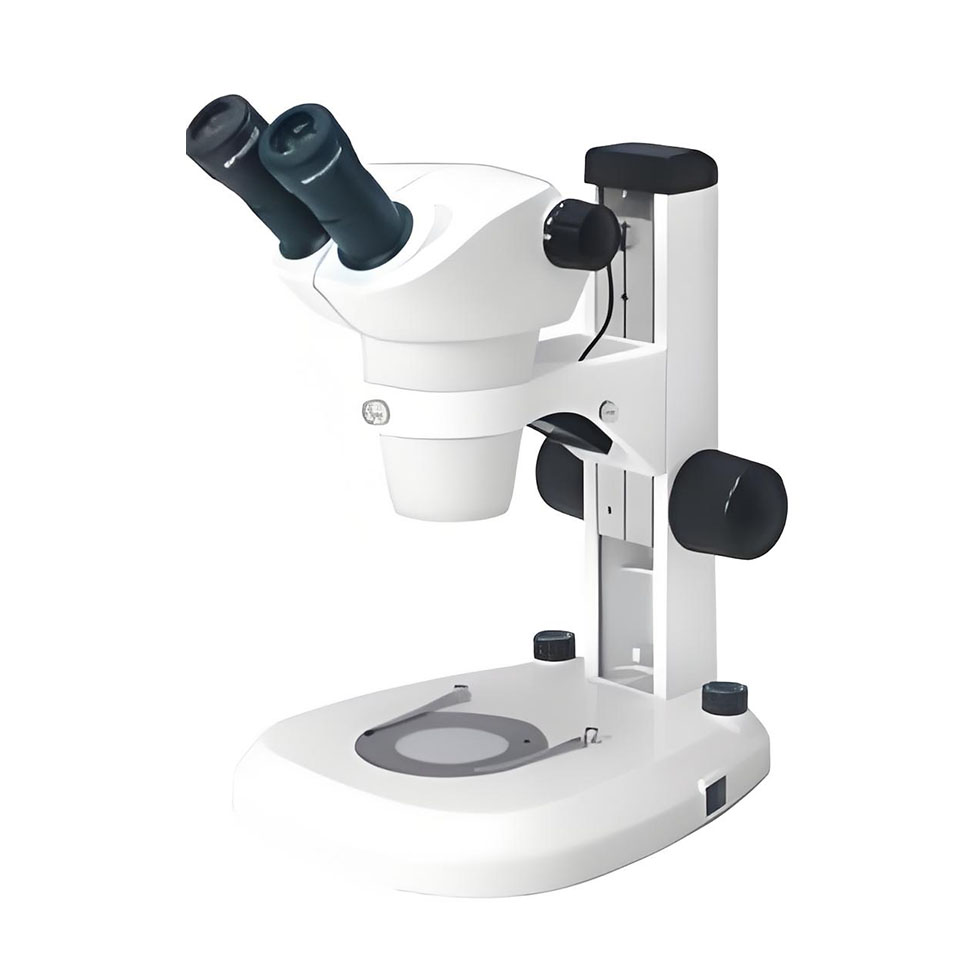

JSZ8 Zoom Stereo Microscope JSZ8 Series

Features
The leading roles of same level microscope, wide range observation with zoom range 0.6X-5X and visual field up to φ76mm.
With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field.
Ease the tiredness with ergonomic design.
With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.

性能

同级别中领先的机型，变焦范围0.6X-5X可进行广范围的观察，视野宽广，最可达中76mm

高性能光学部件，可形成清晰的高对比度图像，并确保大景深下图像的平场度。

符合人机工程学设计，可减轻长时间观察而产生的疲劳。

品种齐全的目镜和辅助物镜，丰富的附件可满足各项功能的扩展，特别适合工业组装和检验，以及教学和基础研究。

Features

The leading roles of same level microscope, wide range observation with zoom range 0.6X-5X and visual field up to φ76mm.

With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field.

Ease the tiredness with ergonomic design.

With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.

图片1.png 图片2.png

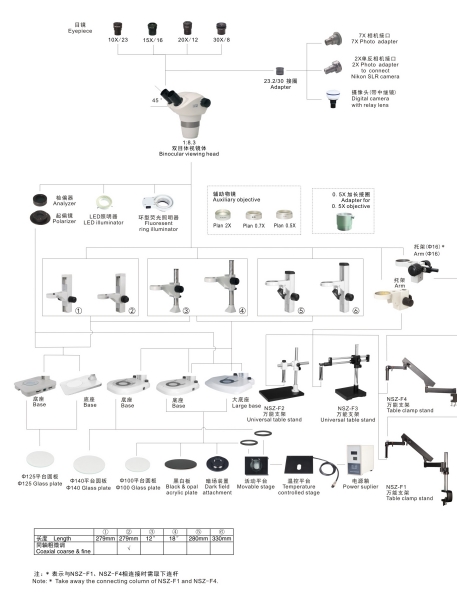

		JSZ8A	JSZ8B
恐应倍筒Vewving Tube	双目体视镜体，倾角45°Binocular viewing head,Inclined at 45°
视度可调目镜 Diopter Adjustment Eyepiece	大视场平场目镜WF10X/φ23 Extra wide field eyepiece WF10X/φ23
	WF15Xφ16	0	o
	WF20Xφ12	0	0
	WF30X/φ9
变倍物镜Zoom Objective	0.6X-5X
变倍比Zoom Ratio	1:8.3
工作距离Working Distance	115mm
瞳距Interpupillary Distance	65.75mm
辅助物镜 Auxiliary objective	0.5X WD:220mm	0
	0.7X WD:125mm
	2X WD:45mm
载物台插入圆板 Stage Insert	直径125mm透明玻璃盘Glassplate,Diameter 125mm
	直径100mm透明玻璃盘Glass plate,Diameter 100mm
	直径125mm黑白板Opal &black acrylic plate,Diameter 125mm
	直径100mm黑白板Opal &black acrylic plate,Diameter 100mm
调焦行程Focusing Range	105mm
光源 Illumination	反射光照明100V-240V/LED Incident IIumination 100V-240V/LED
光源 Illumination	透射光照明100V-240V/LED Transmitted Illumination 100V-240V/LED
摄影附件Photo Attachment		0

注： ● 为标准配置，O 为选购配件 Note:●Standard Outfit,O Optional
