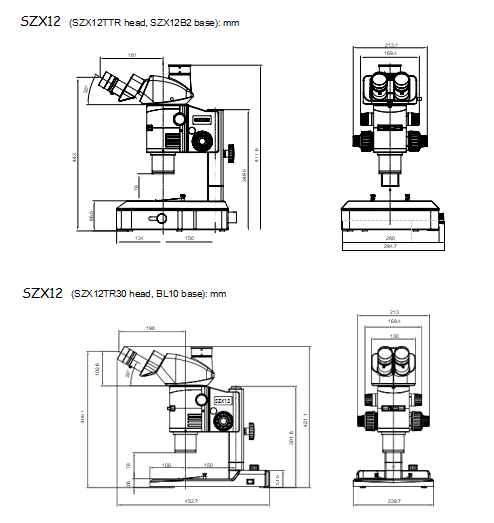

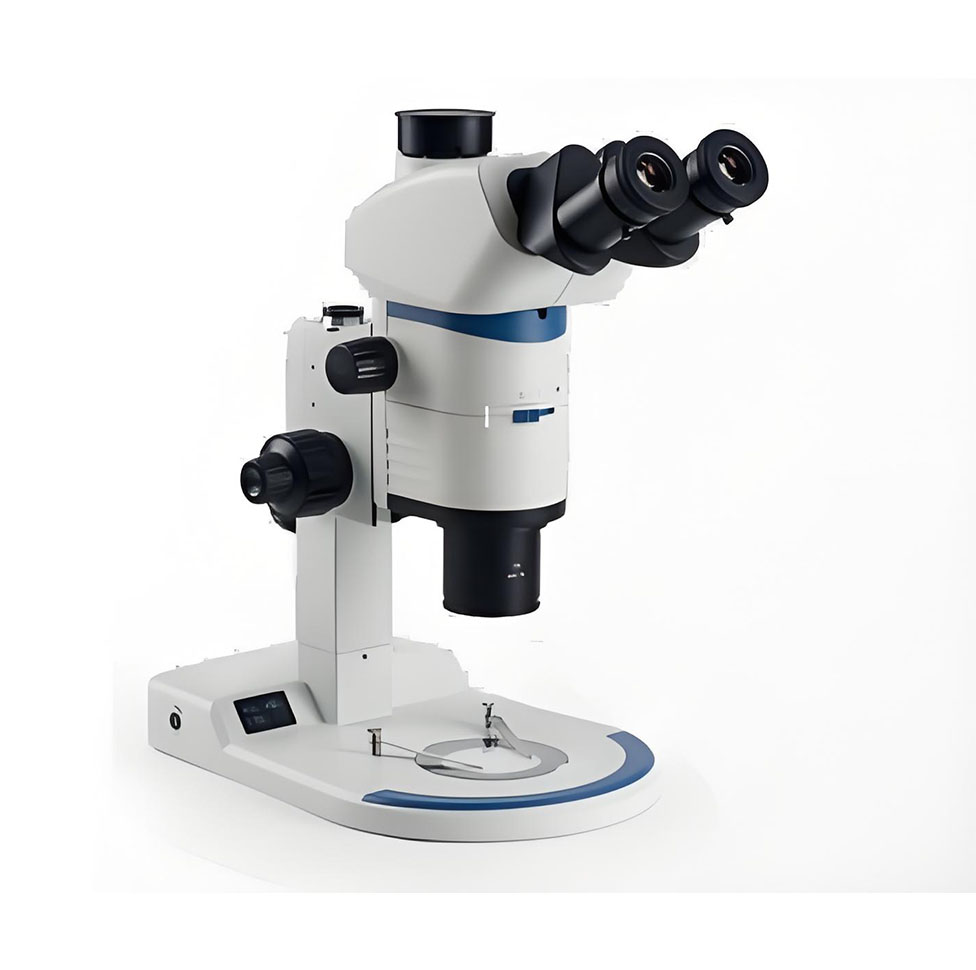

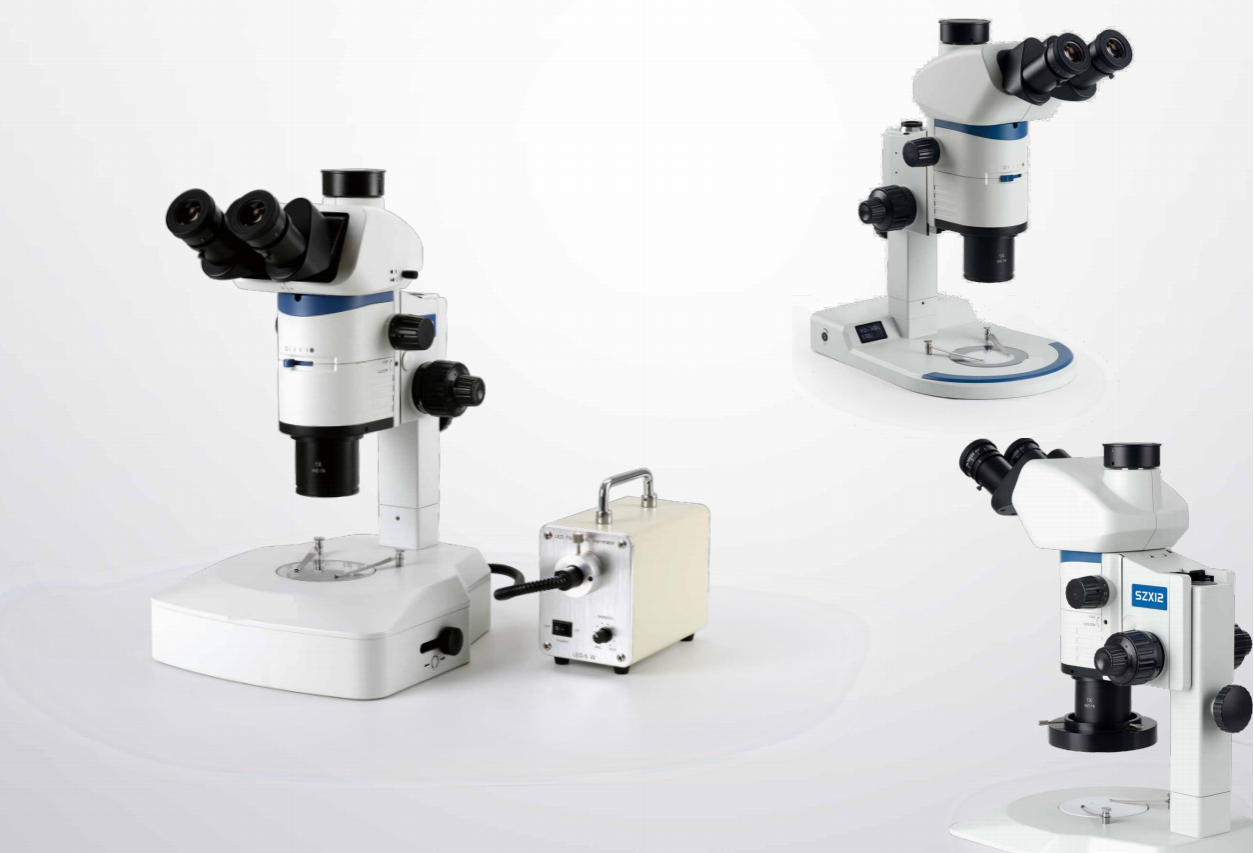

Parallel Light Zoom Stereo Microscope SZX12 Series

Coaxial coarse and fine focusing

mechanism for fast operation

Coaxial mechanism is available to be fast focused, and lockable for longterm observation. Focusing knob with comfortable hand feel, release the fatigue from long time operation.

Tilting viewing head for

comfortable operation

SZX12 with tilting viewing head from 5 to 45 degree, can be flexibly adjusted for different operators with different posture.

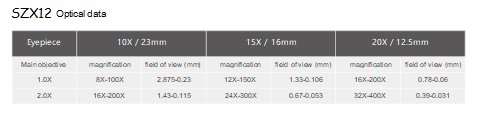

Large zoom ratio 12.5:1

SZX12 has large zoom ratio from 0.8X to 10X, with click stop for every main time, which can be manually unbind  for  zoom  magnifying smoothly.

Aperture diaphragm adjustment

Shift the aperture diaphragm in front to adjust depth of field for high-quality image.

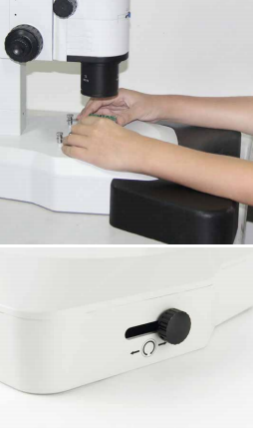

Forearm holder

Compact and streamlined holder to support forearm, reduce the fatigue of arm and shoulder from long-time operation.

Mirror adjustment

Reflected mirror in the base, is 360 degree rotatable to control the light zone . With plan side and frosted side for different imaging effect, is suitable for various applications.

With Galileo optical system, presents super definition

Adopt Galileo optical design to achieve plan and high definition micro-image, meet the demand of scientific research.

Adjustable arm stand

Except  for  the  50mm  coarse  focusing distance, the focus holder is able to be lifted by adjusting lock screw . It is available to detect large sample.

Humanized light intensity

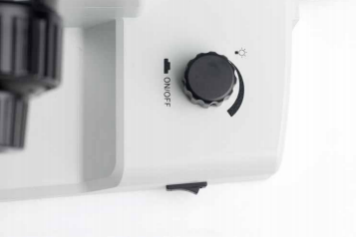

Rotate the dimmer to adjust light intensity, the detailed percent of brightness will be displayed from the LCD on the base. It is helpful to record data of the best back light for sample observation.

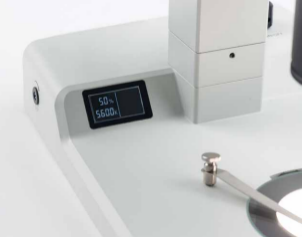

LCD for displaying intensity and color temperature                                        Rotate for adjusting intensity

Optional color temperature

Adjust the color temperature to create a perfect imaging background for different samples in different work environment.

Being available for different applications, such as life science and industry detection,

SZX12 with advanced imaging technology, is the best assistance for scientific research.

Support for life science research, meet the demands of biological experiment, chemical analysis and cell culture.

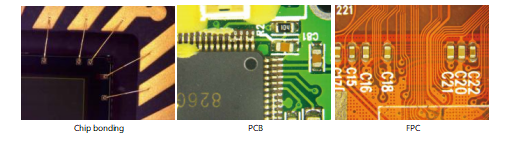

Indispensable testing tool, widely applied for surface detection of PCB, SMT, semiconductor chip, metal material and precision components.
