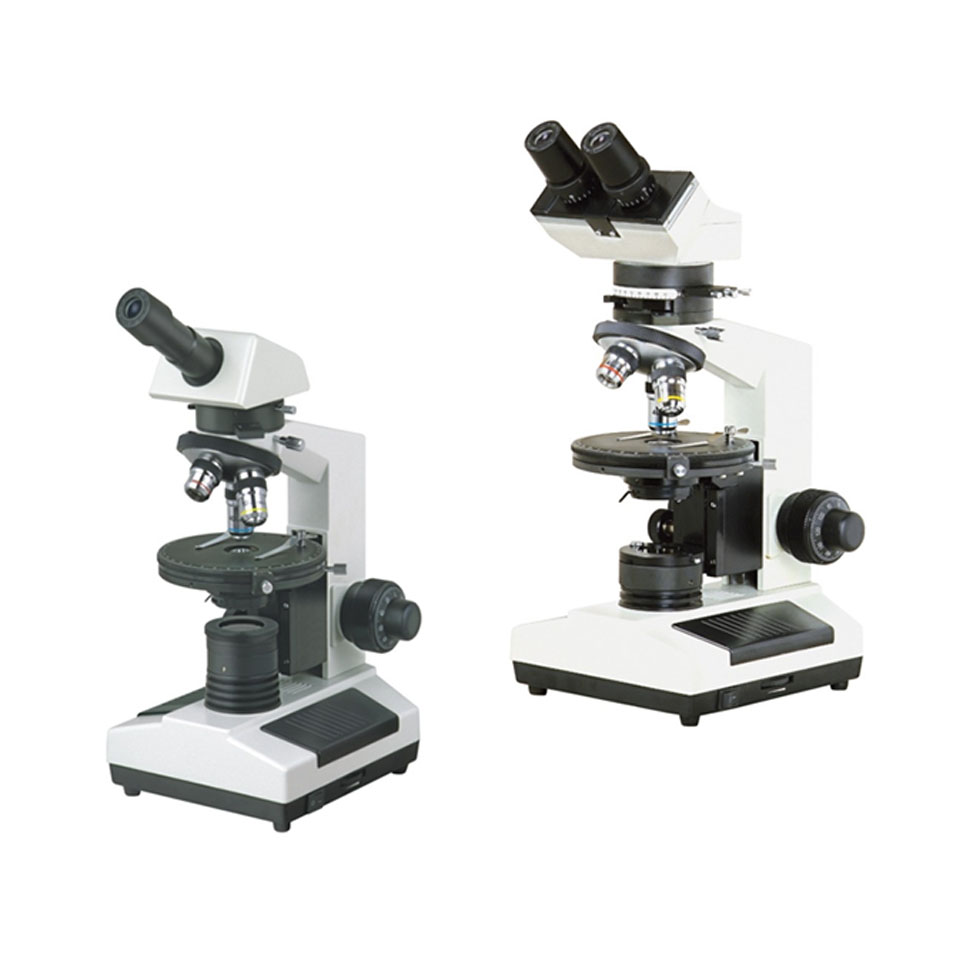

NP-107 Series Polarizing Microscope

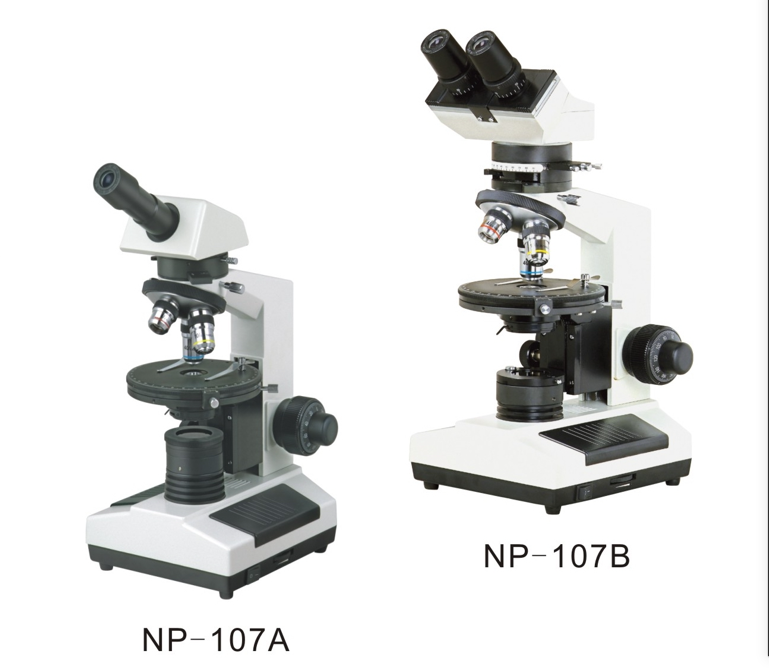

NP-107A

NP-107M

NP-107B

NP-107T

观察系统
Viewing Head

单目镜筒，45°倾斜Monocular head inclined at 45°

●

●

平移式双目镜筒，45°倾斜Sliding binocular head inclined at 45°

●

平移式三目镜筒，45°倾斜Sliding trinocular head inclined at 45°

●

目 镜
Eyepiece

WF10X/18带十字分划Eyepiece WF10X/18 with scale of crosshair

●

●

●

●

WF10X/18

●

●

物镜
Objective

无应力消色差物镜4X、10X、40X
Strain free achromatic objective 4X、10X、40X

●

●

●

●

转换器Nosepiece

外向式四孔转换器Toward quadruple nosepiece

●

●

●

●

检偏装置
Analyzer

固定式检偏装置Fixed analyzer

●

0°—90°摆动式检偏装置Rotatable analyzer with graduation O°-90°

●

●

●

勃氏镜
Bertrand Lens

勃氏镜可移出光路
Bertrand lens,Sliding in/out of optical path

●

●

●

●

光程补偿镜
Optical
Compensator

入试板(一级红)  λ Slip(First class red)

●

●

●

●

1/4入试板1/4λSlip

●

●

●

●

石英楔子试板Quartz wedge

●

●

●

圆型旋转载物台
Revolving Round
Stage

直径φ135mm,刻度格值1°,游标格值6',中心可调
Diameterφ135mm,360°Rotatable and graduate in 1°Increments,
Minimum resolution 6'when using venire scale,Center adjustable

●

●

●

●

聚光镜
Condenser

NA1.25阿贝式聚光镜带可变光栏和滤色片
Abbe Condenser NA1.25 with Iris diaphragm &filter

●

●

●

●

焦距调节
Focusing

同轴粗微调焦机构，调焦范围28mm,微调格值0.002mm
Coaxial coarse &fine adjustment ,range 28mm,fine division 0.002

●

●

●

●

起偏装置
Polarizer

推进式，可0°—90°偏振方向转动，位于集光镜顶部
0°—90°Rotatable located on the top of collector

●

可摆出光路，位于集光镜顶部
Sliding in/out of optical path,Located on the top of collector

●

●

●

照明系统
Illumination

6V/20W卤素灯，亮度可调节
6V/20W Halogen lamp,Brightness adjustable

●

●

●

●
