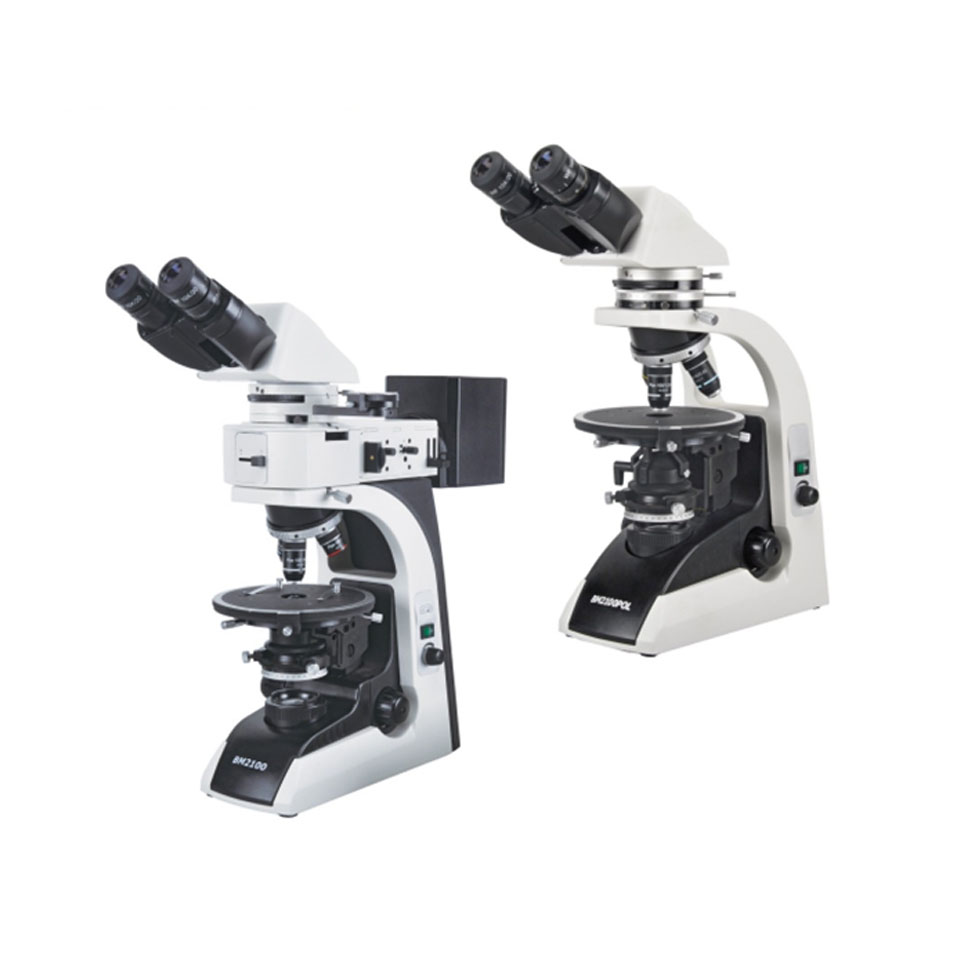

BM2100 POL Series Polarizing Microscope

BM2100POL(T)

BM2100POL(T/R)

观察系统

Viewing Head

铰链式双目观察头，倾角30°

Seidentopf binocular viewing head,Inclined at 30°

●

●

铰链式三目观察头，倾角30°

Seidentopf trinocular viewing head,Inclined at 30

O

O

目 镜

Eyepiece

WF10X/20

●

●

WF10X/20十字目镜Eyepiece WF10X/20 with cross hair

●

●

WF10X/20十字分划目镜Eyepiece WF10X/20 with scale of cross hair

●

●

网格板Grid plate

●

●

无限远无应力平场

消色差物镜

Infinite Strain Free

Plan Achromatic

Objective

透射/反射用物镜：4X、10X

Objective 4X,10X for Transmitted /Reflected system

●

●

透射用物镜：20X、40X、60X

Objective 20X,40X,60X for Transmitted system

●

●

透射用物镜：100X Objective 100X for Transmitted system

O

O

反射用物镜：20X、40X、60X、100X

Objective 20X,40X,60X,100X for Reflected system

O

转换器

Nosepiece

内向式四孔转换器，中心可调(一孔固定，三孔可调)

Backward quadruple nosepiece,Center adjustable

●

●

垂直照明器

Epi-Illuminator

12V/50W卤素灯，亮度可调；可变孔径光栏/视场光栏

12V/50W Halogen lamp with iris aperture diaphragm and iris field diaphragm,Brightness adjustable

●

绿、灰滤色片，色温片和磨砂玻璃Green,Gray filter and ground glass

●

检偏装置Analyzer

0°-360°转动式检偏器 Rotatable analyzer with gradation O°-360°

●

●

勃式镜

Bertrand Lens

勃式镜，可调中心，可调焦，可移出光路

Bertrand Lens,focus/center adjustable sliding in/out of optical path

●

●

光程补偿器

Optical Compensator

λ试板(一级红),1/4λ试板，石英楔子试板

λ Slip(First class red),1/4λ Slip,Quartz wedge

●

●

圆型旋转载物台

Revolving Round Stage

直径中160mm,刻度格值1°,游标格值6'

Diameter φ160mm,Graduated in 1°Increments,Minimum resolution 6’

when using vernier scale

●

●

聚光镜

Condenser

NA0.9阿贝式聚光镜带可变光栏

NA0.9 Abbe condenser with Iris diaphragm

●

●

焦距调节

Focusing

同轴粗微调焦机构，调焦范围24mm,微调格值0.002mm

Coaxial coarse &fine adjustment,Range 24mm,Fine division 0.002mm

●

●

起偏装置  Polarizer

可360°转动，带色温片 360° Rotatable with Filter

●

●

照明系统

Illumination

12V/20W卤素灯，亮度可调节(透射用)

12V/20W Halogen lamp,Brightness adjustable(Transmitted illumination)

●

●

附件

Accessories

照相附件

Photo Attachment

0.4XC接口  C Mount 0.4X

O

O

2X单反相机接口2X SLR Camera adaptor

O

O

机械移动尺，移动范围：30X40mm(含切片试片座)

Mechanical stage,Moving rang 30X40mm

O

O

压平机Specimen presser

O

O

测微尺Micrometer

●

●

色温片Filter

●

●
